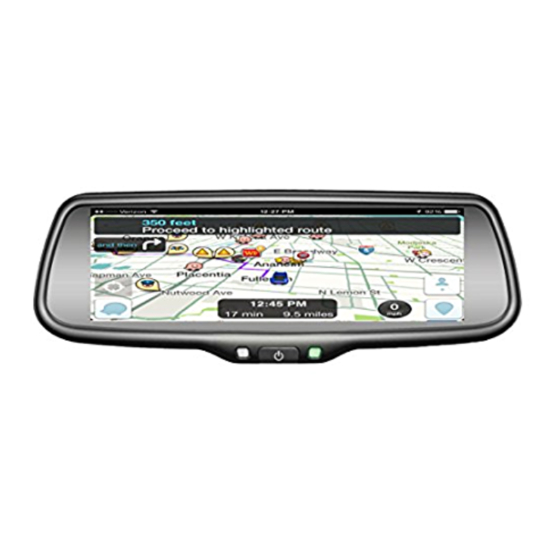

Car rear view mirror monitor with 7.3 inch wide lcd display screen
Hide thumbs Also See for VTW73M:

Advertisement

Quick Links

NOTED:
1. Frozen: When the image is frozen or can't connect, please restart the mirror monitor. This is usually due to the older
mobile phones with weak CPU computing power, slow video delivery to the mirror.
2. Trimmed: Some mobile phones send image outputs at higher resolutions than the display resolution of the mirror
monitor. The portions of the image, exceeding the display area of the mirror will be trimmed.
3. Larger Than Real: When this product is used in a caravan or a large truck, the displayed objects may appear larger
and closer. Objects are relative to the distance from the camera, not from the driver.
4. FM Reset: When arriving in a new city, you may need to find the FM frequency with no broadcast signal and re-adjust
the FM transmission frequency of the mirror.
5. How Do I: This monitor is like a TV with a screencast receiver and how each mobile phone connects may vary. How
to send video to a TV by different mobile phones can be searched from Google.
6. Distracted Driving: It is dangerous and prohibited to watch the video or stream the phone while driving. Enjoy video
streaming on the mirror while parked.
Vision Tech America, Inc.
1452 E. Valencia Dr.,
Fullertion, CA 92831
Tel: 888-941-3060
For technical support contact 888-941-3060 or email
info@visiontechamerica.com WWW.VISIONTECHAMERICA.COM

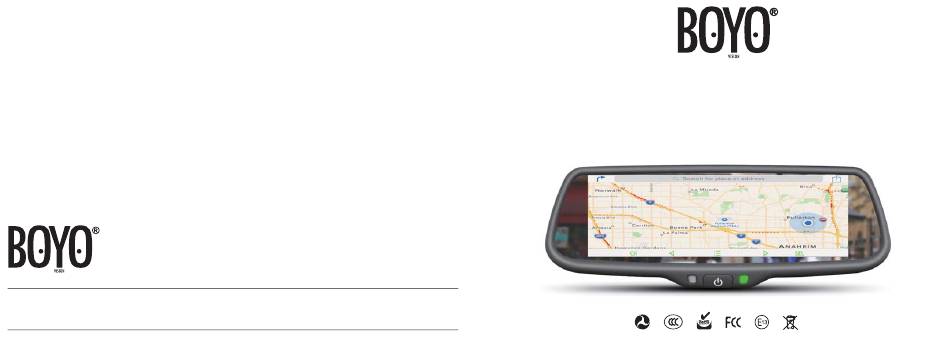

Car Rear View Mirror Monitor
With 7.3 Inch Wide LCD Display Screen
U S E R M A N U A L

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VTW73M and is the answer not in the manual?

Questions and answers

Summary of Contents for Boyo VTW73M

  • Page 1 NOTED: 1. Frozen: When the image is frozen or can't connect, please restart the mirror monitor. This is usually due to the older mobile phones with weak CPU computing power, slow video delivery to the mirror. 2. Trimmed: Some mobile phones send image outputs at higher resolutions than the display resolution of the mirror monitor.
  • Page 2: Specifications

    CONTENTS FEATURES 7.3 inch wide LCD display screen Backup camera display The package contains the following: 2 x AHD /CVBS analog video inputs Automatic brightness adjustment Adjustable backup guidelines OEM replaceable bracket Touch screen button Android OS and iOS MiraCast Receiver SPECIFICATIONS 1.
  • Page 3: How To Install Mirror Monitor

    NOTE: Always use caution. Please seek help from trained and qualified professionals if you are not comfortable HOW TO INSTALL MIRROR MONITOR with the removal or installation of the mirror. Remove the original mirror Different cars have different brackets. Learn how to remove before actually removing the mirror.
  • Page 4: How To Wire

    HOW TO WIRE How to install wire harness, wire cover, cable cover and connector cable on the mirror? NOTE: The pictures may not match your product, they are for illustration purposes only. - AHD /Analog backup camera trigger-green to backup light positive Black to GND Red to ignition +12V trigger...
  • Page 5: Menu Setting

    BASIC OPERATING INSTRUCTIONS MENU SETTING When the rearview mirror is in the non-triggered state, short press “ ” to enter into “menu setting” interface. you can switch among “PICTURE”, “SYSTEM”, “SETUP” or enter out. Press “ ” to switch among the items. “ ”...
  • Page 6 MIRACAST How to connect with iPhone This is a special device to project your mobile phone to rear view mirror monitor through Wi-Fi connection. 1. Turn on WiFi in your phone to 3. Click "AnyCast-XXXXXX", wait a connect the rearview mirror, few seconds, when the rearview 2.
  • Page 7: Back Up Camera Display

    When the rearview mirror and the mobile phone are connected successfully, the sound (such as navigation, music BACK UP CAMERA DISPLAY playback) in the mobile phone will be transmitted from the rearview mirror speaker. For better quality of sound, you can use the car's speakers by following steps: When the car is in reverse, the monitor will automatically display back up camera.
  • Page 8: Adjustable Guide Line

    How to adjust the guide line ADJUSTABLE GUIDE LINE Right position Wrong position According to the site of standard reference line, we About guide line can put references such as desks in the back side of Generally, to help drivers estimate the the car.
