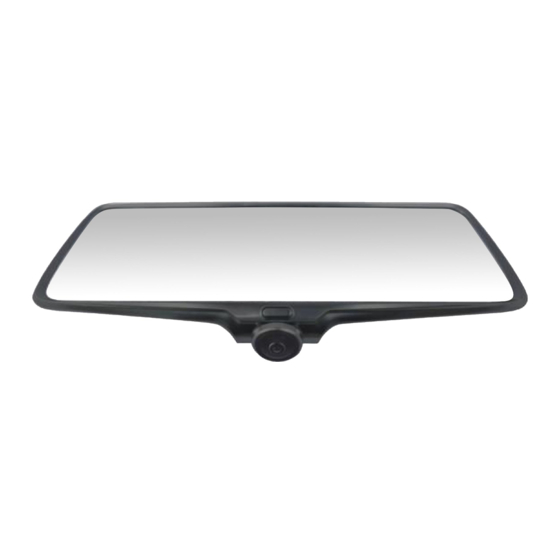

Rear view mirror monitor dvr with 360 camera
Hide thumbs

Advertisement

Quick Links

Rear View Mirror Monitor DVR with 360°camera
(VTR50M)
User Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the VTR50M and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Boyo VTR50M

Summary of Contents for Boyo VTR50M

  • Page 1 Rear View Mirror Monitor DVR with 360°camera (VTR50M) User Manual...

  • Page 2: Table Of Contents

    Owner’s Manual VTR50M 1. Contents 2. Before Use 3. Product Introduction 4. Installation Steps 5. Function Introduction 6. Device Specifications 7. Trouble Shooting - 1 -...

  • Page 3: Before Use

    Before Use 1.1 Attention Please read the complete Owner’s Manual before operating the device in order to avoid bodily harm or improper operations caused by this device. For safety, please do not operate this device while driving 1.2 Operating Environment Please do not expose this device to rain or an excessively damp environment, this device does not have water resistant protection.

  • Page 4: Product Introduction

    1.3 Power Harness Please use the provided POWER harness, do not use any other POWER harness otherwise it may damage the unit. 1.4 TF Card This device supports TF cards 8 GB to 32 GB, High Speed Class 6 to Class 10. Product Introduction ①...
  • Page 5 2 Installation image 2 Functions 4.1 Operation and Sleep Mode 4.1.1 Startup & Shutdown When the vehicle ignition switch (ACC) is on, the device will be automatically turned on. When the vehicle ignition switch (ACC) is switched off, the device will automatically display “shutdown”, “parking” and “cancel” menu option as shown in the picture 4.1.2 below.
  • Page 6 When the device detects an impact or a collision, the device will wake up and start recording. NOTES: Parking Monitor Mode works properly if the dash cam is hardwired to a constant power source. 4.2 Interface operation 4.2.1 Interface operation preview 4.2.2 The video interface preview and operation 4.2.2.1 The video switch mode - 5 -...
  • Page 7 4.2.2.2 Wide-angle mode (Wide Mode) 4.2.2.3 Spherical mode (Ball Mode) 4.2.2.4 Front and rear mode (Around Mode) - 6 -...
  • Page 8 4.2.2.5 Multi-window mode (Four Mode) 4.2.2.6 Video recording in case of any impact or collision in lock mode 4.2.2.7 The display of rear view camera video images in Picture in Picture mode - 7 -...
  • Page 9 4.2.3 Video and Photo Playback Mode The unit stores video and photos on its micro SD Card. They can be reviewed and played back through Playback Mode. 4.2.3.1 Video and Photo Playback File Menu 4.2.3.2 Front camera video recording playback and mode switching - 8 -...
  • Page 10 4.2.3.3 Rear camera video playback 4.2.3.4 Picture play-back and playback mode switching - 9 -...
  • Page 11 4.2.4 Settings 4.2.4.1 Video Settings 4.2.4.2 System Settings - 10 -...
  • Page 12 4.3 Download VeSee Player and Installation Take out TF memory card and insert it into PC SD Card slot. Locate a file called “VeSeeInstall.msi” and install its application by double clicking it. - 11 -...

  • Page 13: Device Specifications

    4.4 Device Specifications Specifications Parking Monitoring Supported Loop Video Supported Video Format Photo Format JPEG Camera Pixel 3 Million Pixels Camera Angle Horizontal 360 Degree Display Screen 4 inch 480x800 Touch Screen 5 Points Touch Control Storage Supports 8GB-32GB, Class 6 & Above Loudspeaker 4Ω2W Microphone...

  • Page 14: Trouble Shooting

    4.5 Trouble shooting If the device doesn’t work under the normal operating conditions, please review the following for your reference; if the problem cannot be resolved, please contact customer service. Problem Cause Solution Cig Lighter plug charger is damaged 1. Inspect Lighter Plug Charger for damage, if no damage check or the fuse is blown.

  • Page 15: Packing List

    Packing List 360° Camera/Rear View Mirror Monitor DVR x 1 12 FT USB to Cigarette Lighter Plug Power Harness (Cig Plug has USB socket) x 1 10 FT USB to Hardwire Power Harness x 1 Mirror Mounting Straps x 2 Rear View Camera with 20ft AV input Cable×1 16GB Micro SD Card User Manual...
  • Page 16 Vision Tech America, Inc. 1452 E. Valencia Dr., Fullerton, CA 92831 Tel: 888-941-3060 For technical support contact 888-941-3060 or email info@visiontechamerica.com WWW.VISIONTECHAMERICA.COM...
