VTM51M

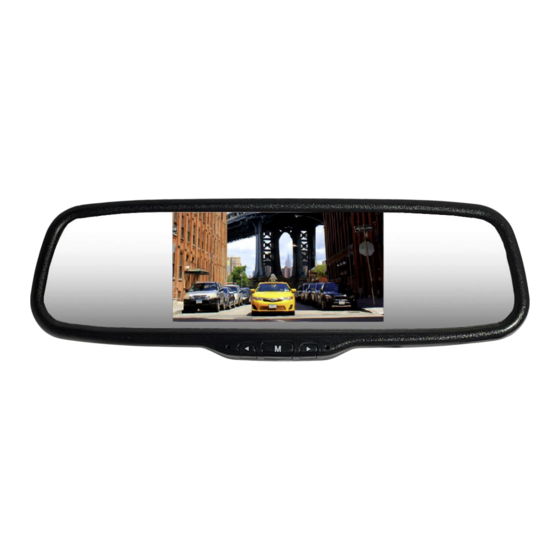

5" Replacement Mirror Monitor
USER MANUAL
Please read the instructional complete before use and keep it for
future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VTM51M and is the answer not in the manual?

Questions and answers

Summary of Contents for Boyo VTM51M

  • Page 1 VTM51M 5” Replacement Mirror Monitor USER MANUAL Please read the instructional complete before use and keep it for future reference.
  • Page 2: Before Installation

    Product Features • 5 Inch TFT LCD Panel • Display Panel Aspect Ratio 16:9 • Resolution 800x480 • High Brightness 1200cd/m • Mirror Glass • Universal Mirror Mount • 2 Video Inputs, Video Signal Auto Detection • PAL/NTSC Auto Switch •...
  • Page 3: Installation

    Loosen the set screw Hold close to the glass Remove the mirror Slide up against windshield Step 2. VTM51M installation. Reverse of a mirror removal. • Attach the universal mount to the mirror • Slide in the universal bracket over the mount •...
  • Page 4: Monitor Operation

    Monitor Operation Buttons: ( Adjust - ) ( Adjust + ) Power on/off & Menu Monitoring: • The monitor detects video signal. • When the video input port 1 detects the video signal, it will automatically display the video input 1. •...
  • Page 5: Troubleshooting

    Troubleshooting 1. No backup camera video. The backup camera is connected and powered. Possibility 1: Camera has no power. Please check voltage to the camera. Possibility 2: Bad video extension cable or connector. Please test with another video extension. Possibility 3: Bad camera.
  • Page 6: Warranty Information

    BOYO®- brand parts. This warranty is VOID if you purchased this product as used, floor model sample, or refurbished; if the product has been altered or modified in any way (including but not limited to attempted repair without authorization from BOYO®- Vision Tech America, Inc.
