Timer Installation

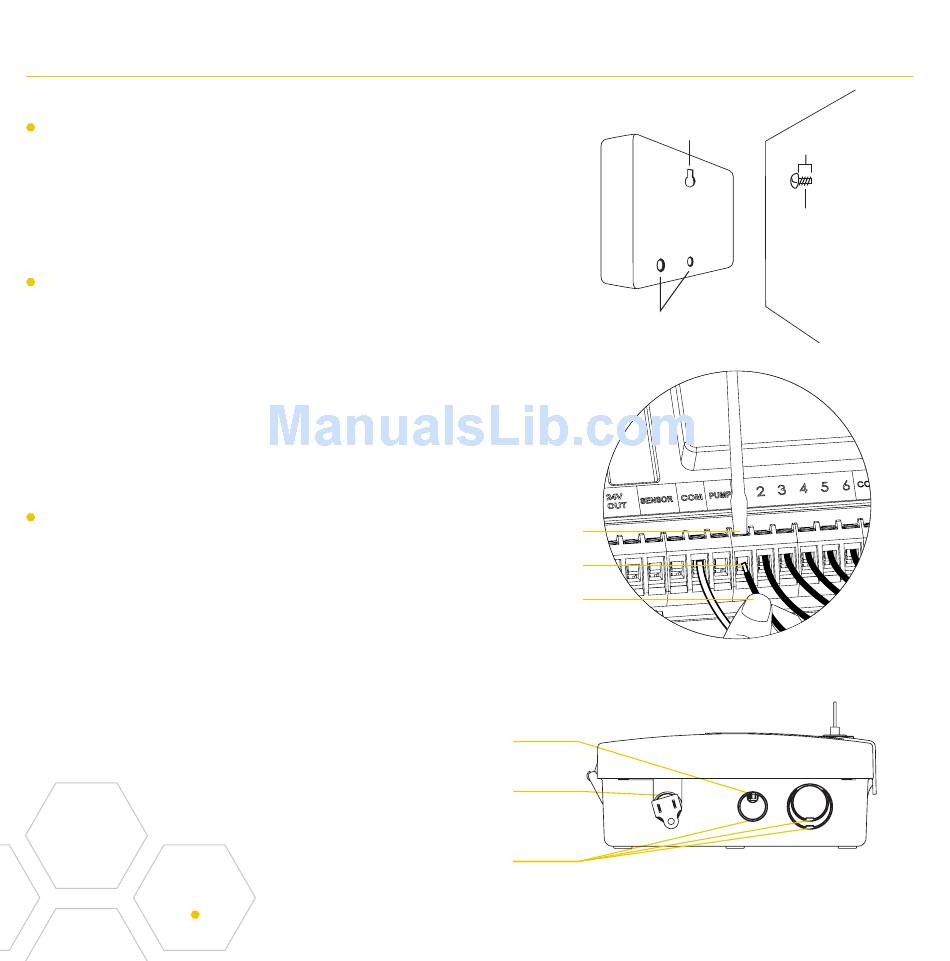

Select a location
Keyhole
1/8"
Choose a location near power and away
from direct sunlight, if possible . Make sure
to leave room for the timer door to open
No. 8 Screw
completely .
Mount the timer
Install a screw (included) into the wall .
Wall
Pre-formed
Use the expanding anchors (included) for
Mounting Holes
plaster, masonry or drywall installations .
Hang the timer on the installed screw using
the keyhole slot . Level the timer and use
the second screw in one of the preformed
mounting holes to secure the timer .
Connect valve wires
Loosen Screw
Strip 1/2" (12 mm) of insulation from each
Strip Wire
wire . Connect one wire from each valve
to a "Common" (COM) wire and the other
Push In
wires to a numbered terminal (only one
Tighten Screw
wire per terminal .)
Small Hole–for running 5 or 7
Bottom View
strand wire straight into the box
Knock-out for hardwired installations
1/2", 3/4" and 1" knock-outs for larger
systems with more wire bundles
Note: We recommend you consult an electrician for hardwired installations .
