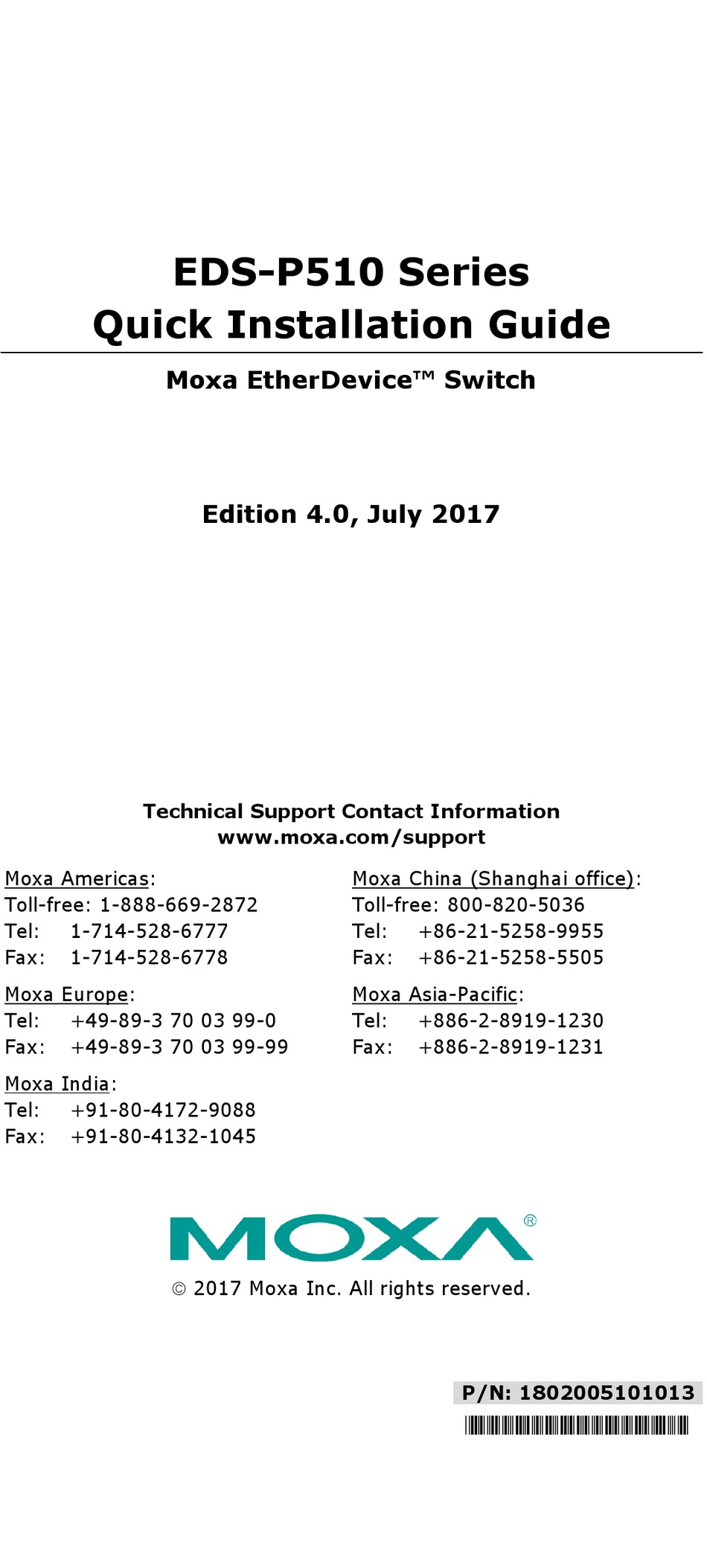

Quick Installation Guide
Moxa Americas:
Toll-free: 1-888-669-2872
Tel:
1-714-528-6777
Fax:
1-714-528-6778
Moxa Europe:
Tel:
+49-89-3 70 03 99-0
Fax:
+49-89-3 70 03 99-99
Moxa India:
Tel:
+91-80-4172-9088
Fax:
+91-80-4132-1045
EDS-P510 Series
Moxa EtherDevice™ Switch
Edition 4.0, July 2017
Technical Support Contact Information
www.moxa.com/support
 2017 Moxa Inc. All rights reserved.
Moxa China (Shanghai office):
Toll-free: 800-820-5036
Tel:
+86-21-5258-9955
Fax:
+86-21-5258-5505
Moxa Asia-Pacific:
Tel:
+886-2-8919-1230
Fax:
+886-2-8919-1231
P/N: 1802005101013
*1802005101013*

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EtherDevice EDS-P510 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Moxa Technologies EtherDevice EDS-P510 Series

Summary of Contents for Moxa Technologies EtherDevice EDS-P510 Series

  • Page 1 EDS-P510 Series Quick Installation Guide Moxa EtherDevice™ Switch Edition 4.0, July 2017 Technical Support Contact Information www.moxa.com/support Moxa Americas: Moxa China (Shanghai office): Toll-free: 1-888-669-2872 Toll-free: 800-820-5036 Tel: 1-714-528-6777 Tel: +86-21-5258-9955 Fax: 1-714-528-6778 Fax: +86-21-5258-5505 Moxa Europe: Moxa Asia-Pacific: Tel: +49-89-3 70 03 99-0 Tel: +886-2-8919-1230...

  • Page 2: Package Checklist

    Overview The Moxa EtherDevice™ EDS-P510 Series Ethernet switches are Gigabit managed redundant Ethernet switches that come standard with 4 10/100BaseT(X) 802.3af (PoE) compliant Ethernet ports and 3 combo Gigabit Ethernet ports. The EDS-P510 Ethernet switches provide up to 15.4 watts of power per PoE port, and allow power to be supplied to connected devices (such as surveillance cameras, wireless access points, and IP phones) when AC power is not readily available or cost-prohibitive to provide locally.
  • Page 3 Panel Views of EDS-P510 Front Panel: 1. 1 to 7: 10/100BaseT(X) port 2. G1 to G3: Combo (10/100/1000BaseT(X) or 100/1000BaseSFP slot Gigabit port.) 3. PWR1: LED for power input 1 4. PWR2: LED for power input 2 5. Fault LED 6.

  • Page 4: Mounting Dimensions

    Mounting Dimensions Unit = mm (inch) DIN-Rail Mounting The aluminum DIN-Rail attachment plate should already be fixed to the back panel of the EDS-P510 when you take it out of the box. If you need to reattach the DIN-Rail attachment plate to the EDS-P510, make sure the stiff metal spring is situated towards the top, as shown by the following figures.

  • Page 5: Wiring Requirements

    Wall Mounting (Optional) For some applications, you will find it convenient to mount Moxa EDS-P510 on the wall, as shown in the following illustrations: STEP 1—Remove the aluminum DIN-Rail attachment plate from the rear panel of the EDS-P510, and then attach the wall mount plates with M3 screws, as shown in the figure at the right.

  • Page 6: Safety First

    ATTENTION This unit is a built-in type. When the unit is installed in another piece of equipment, the equipment enclosing the unit must comply with fire enclosure regulation IEC60950-1/EN60950-1 (or similar regulation). ATTENTION Safety First! Be sure to disconnect the power cord before installing and/or wiring your Moxa EtherDevice Switch.

  • Page 7: Wiring The Redundant Power Inputs

    Wiring the Relay Contact The EDS-P510 has two sets of relay outputs—relay 1 and relay 2. Each relay contact uses two contacts of the terminal block on the EDS-P510’s top panel. Refer to the next section for detailed instructions on how to connect the wires to the terminal block connector, and how to attach the terminal block connector to the terminal block receptor.
  • Page 8 Wiring the Digital Inputs The EDS-P510 has two sets of digital inputs, DI 1 and DI 2. Each DI consists of two contacts of the 6-pin terminal block connector on the EDS-P510’s top panel, which are used for the two DC inputs. The top and front views of one of the terminal block connectors are shown here.

  • Page 9: Led Indicators

    “Turbo Ring” DIP Switch Settings DIP 1 DIP 2 DIP 3 DIP 4 ON: Enables this ON: Enables the ON: Activates DIP EDS as the Ring default “Ring switches 1, 2, 3 to Master. Coupling” ports. configure “Turbo Ring” settings. Reserved for future use.
  • Page 10 Color State Description When the EDS-P510 is set as the Master of the Turbo Ring, or as the Head of the Turbo Chain. The EDS-P510 has become the Ring Master of the Turbo Ring, or the Head MSTR/HEAD GREEN Blinking of the Turbo Chain, after the Turbo Ring or the Turbo Chain is down.

  • Page 11: Switch Properties

    Specifications of EDS-P510 Series Technology Standards IEEE 802.3af for Power-over-Ethernet, IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100Base FX, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802.3x for Flow Control, IEEE 802.1D for Spanning Tree Protocol, IEEE 802.1w for Rapid STP, IEEE 802.1Q for VLAN Tagging, IEEE 802.1p for Class of Service,...

  • Page 12: Regulatory Approvals

    Power Rated Voltage 48 VDC, redundant dual inputs Operating Voltage 44 to 57 VDC Rated Current 1.58 A @ 48 VDC Power Consumption 14.24 W max., without PDs' consumption Inrush Current 15.8 A @ 48 VDC Electrical Isolation 2250 VDC to chassis for 60 s Heat Dissipation 49.1 BTU/h Overload Current...
