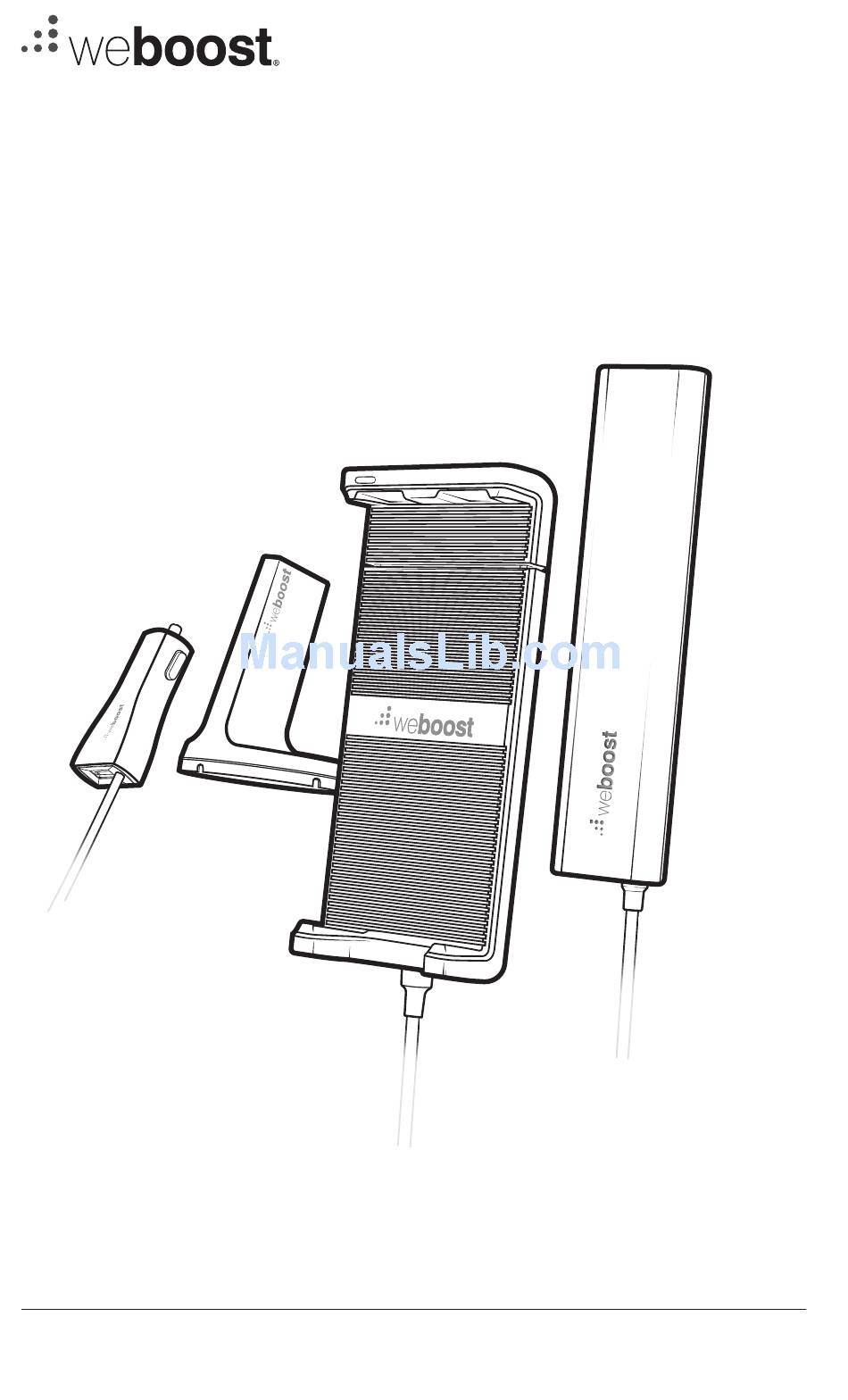

Page 1: User Manual
A WILSON ELECTRONICS BRAND DRIVE SLEEK Vehicle Signal Booster Kit User Manual... -
Page 2: Table Of Contents
______ Index Package Contents Mount Outside Antenna STEP 1: Route & Connect Booster STEP 2: Route Cable To Front Of Vehicle STEP 3: Connect System To Power STEP 4: Insert Phone Into Cradle STEP 5: Troubleshooting Safety Guidelines Specifications Warranty... -
Page 3: Package Contents
________ Package Contents Magnetic Outside Signal Power Sleek Vent Mount Antenna Booster Supply Cradle (for cradle) DRIVE SLEEK CELL PHONE SIGNAL BOOSTER... - Page 4 ______ Step 1: Mount Outside Magnetic Antenna Identify a location on the top of your vehicle that is: • Near the center of the roof • At least 12 inches away from any other antennas • At least 6 inches away from any windows (including sunroofs) Cle an the surface where you will place the outside antenna.
- Page 5 ______ Step 2: Route Antenna Cable & Connect Booster Route the cable into the vehicle. See examples below. NOTE: The cable is strong enough that it may be shut in most vehicle doors without damaging the cable. Car/Sedan: Cable routed into rear side door.
- Page 6 ______ (STEP 2 cont.) Connect the cable from the outside antenna to the booster port labeled by simply pressing the connector in until ANTENNA you hear a “click”. NOTE: Connecting cable from outside antenna to booster does not take much force. booster cable from outside antenna...
-
Page 7: Step 3: Route Cable To Front Of Vehicle
______ Step 3: Route Cable To Front Of Vehicle & Connect To Cradle We recommend routing the 15ft. fixed cable from the booster, under mats and between seats up to the front of the vehicle where the cradle will be located. to front of vehicle Connect booster cable to cradle cable. -
Page 8: Step 4: Connect System To Power
______ Step 4: Connect System To Power Connect the power to the 12V CLA port on your vehicle and route power cable back to the booster. NOTE: We recommend routing with the same path as the cradle/booster cable (under mats and between seats). Cable clips are provided to help route &... - Page 9 ______ Step 5: Insert Your Phone Into Cradle Make sure you have plenty of slack in the cable going up to the cradle (Velcro straps included to manage excess ® cable). Insert your phone into cradle and watch your signal increase! insert phone into cradle extends...
-
Page 10: Troubleshooting
Check/secure power connections to the CLA, booster, and cradle. If light shuts off, remove from vehicle port and plug back in to reset the system. For any questions or assistance contact our weBoost Customer Support Team (1-877-312-4547). Dropped Calls If you are regularly experiencing dropped calls in the same areas, turn off VoLTE/HD Voice in your phone’s settings. -
Page 11: Safety Guidelines
______ Safety Guidelines Use only the power supply provided in this package. Use of a non-weBoost product may damage your equipment. Any antenna used with this device must be located at least 8 inches from all persons. FCC requires to never use the cell phone in the cradle next to your ear. -
Page 12: Specifications
This device complies with Part 15 of FCC rules. Operation is subject to two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by weBoost could void the authority to operate this equipment. CELL PHONE SIGNAL BOOSTER DRIVE SLEEK... -
Page 13: Warranty
2 YEAR WARRANTY weBoost Signal Boosters are warranted for two (2) years against defects in workmanship and/or materials. Warranty cases may be resolved by returning the product directly to the reseller with a dated proof of purchase. Signal Boosters may also be returned directly to the manufacturer at the consumer’s expense, with a dated proof of purchase and a Returned Material... - Page 14 Notes CELL PHONE SIGNAL BOOSTER DRIVE SLEEK...
- Page 15 Notes DRIVE SLEEK CELL PHONE SIGNAL BOOSTER...
- Page 16 Copyright © 2017 weBoost. All rights reserved. weBoost products covered by U.S. patent(s) and pending application(s) For patents go to: weboost.com/us/patents NOT AFFILIATED WITH WILSON ANTENNA GDE000027_Rev01_08.24.17...
