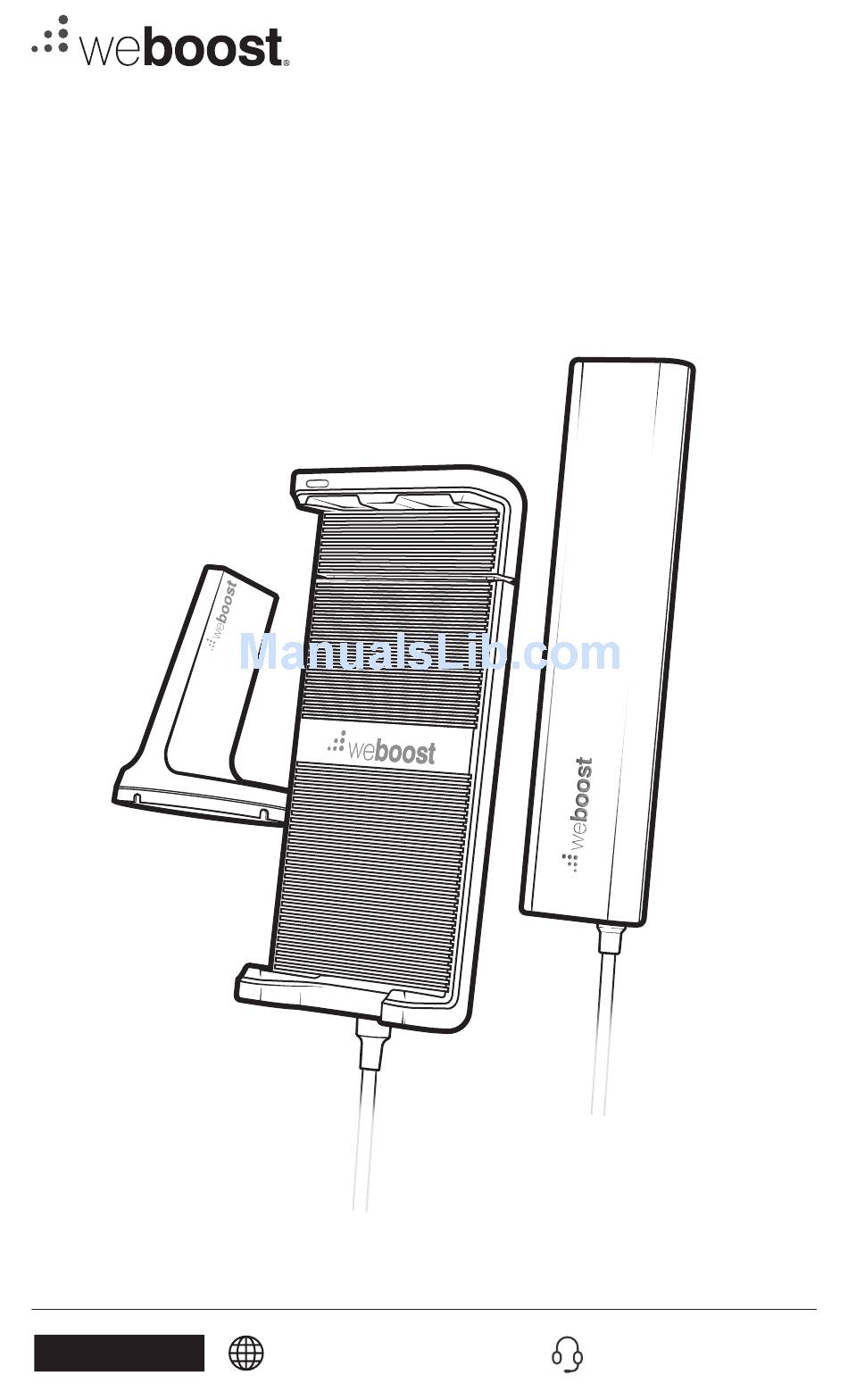

Page 1: User Manual
A WILSON ELECTRONICS BRAND DRIVE SLEEK Vehicle Signal Booster Kit User Manual support.weboost.com 866.294.1660 NEED HELP? -
Page 2: Table Of Contents
______ Index Package Contents Mount Outside Antenna STEP 1: Route & Connect Booster STEP 2: Route Cable To Front Of Vehicle STEP 3: Connect System To Power STEP 4: Insert Phone Into Cradle STEP 5: Light Patterns Troubleshooting Safety Guidelines Specifications Warranty... -
Page 3: Package Contents
________ Package Contents Sleek Outside Signal Power Magnetic Cradle Antenna Booster Supply Vent Mount (for cradle) DRIVE SLEEK CELL PHONE SIGNAL BOOSTER... - Page 4 6 in. away from windows (including sunroofs) NOTE: For roofs that are not metallic, use the included metal disk by peeling away the adhesive cover and sticking on the clean surface. WORKS WITH ALL VEHICLES CELL PHONE SIGNAL BOOSTER DRIVE SLEEK...
-
Page 5: Step 2: Route & Connect Booster
NOTE: The cable is strong enough that it may be shut in most vehicle doors without damaging the cable. Car/Sedan: Cable routed into rear side door. SUV/Van/Hatchback: Cable routed into top of hatchback door. Truck: Cable routed into side door. DRIVE SLEEK CELL PHONE SIGNAL BOOSTER... - Page 6 ______ (STEP 2 cont.) Connect the cable from the outside antenna to the booster port labeled by simply pressing the connector in ANTENNA until you hear a “click”. booster cable from outside antenna ANTENNA CELL PHONE SIGNAL BOOSTER DRIVE SLEEK...
-
Page 7: Step 3: Route Cable To Front Of Vehicle
We recommend routing the 15ft. fixed cable from the booster, under mats and between seats up to the front of the vehicle where the cradle will be located. to front of vehicle Connect booster cable to cable from cradle. snap-in connectors cradle DRIVE SLEEK CELL PHONE SIGNAL BOOSTER... -
Page 8: Step 4: Connect System To Power
NOTE: The booster will be on whenever there is power from the 12V CLA port. If your vehicle always has power going to this port, you may want to ANTENNA unplug this when you’re not driving so the booster does not drain your battery. CELL PHONE SIGNAL BOOSTER DRIVE SLEEK... - Page 9 Insert your phone into cradle and watch your signal increase! insert phone into cradle extends cradle to boost signal magnetic vent mount NOTE: Magnetic vent mount included to mount the cradle to your dash. DRIVE SLEEK CELL PHONE SIGNAL BOOSTER...
-
Page 10: Light Patterns
______ Light Patterns Solid White This indicates that your booster is functioning properly and at maximum gain. Light Off Needs power. support.weboost.com 866.294.1660 NEED HELP? CELL PHONE SIGNAL BOOSTER DRIVE SLEEK... -
Page 11: Troubleshooting
Reset system by disconnecting and reconnecting the power supply. If you are having any difficulties while testing or installing your booster, contact our weBoost Customer Support team for assistance (866.294.1660). FREQUENTLY ASKED QUESTIONS What hours can I contact customer support? Customer Support can be reached monday thru friday by calling 866.294.1660, or... - Page 12 Kit 311112-5810 314202 NMO Antenna w/RG174 800/1900 NMO Antenna 311703 10’ RG58 Cable Trucker Antenna w/10.5’ RG58 Kit 314203-5810 Kit 311104-17410 311101 800/900/1900 NMO Antenna 800/1900 NMO Antenna 311701 10’ RG58 Cable 10’ RG174 Cable CELL PHONE SIGNAL BOOSTER DRIVE SLEEK...
-
Page 13: Safety Guidelines
______ Safety Guidelines Use only the power supply provided in this package. Use of a non-weBoost product may damage your equipment. Connecting the Signal Booster directly to the cell phone with use of an adapter will damage the cell phone. -
Page 14: Specifications
Power output for single cell Band 12/17 Band 13 Band 5 Band 2 Band 4 phone (Downlink) dBm -0.6 -2.5 Noise Figure 5 dB nominal Power Requirements 12 V 1.5 A / USB 5V 2.1 A CELL PHONE SIGNAL BOOSTER DRIVE SLEEK... - Page 15 This device complies with Part 15 of FCC rules. Operation is subject to two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by weBoost could void the authority to operate this equipment.
-
Page 16: Warranty
2 YEAR WARRANTY weBoost Signal Boosters are warranted for two (2) years against defects in workmanship and/or materials. Warranty cases may be resolved by returning the product directly to the reseller with a dated proof of purchase. Signal Boosters may also be returned directly to the manufacturer at the consumer’s expense, with a dated proof of purchase and a Returned Material...
