Rosemount 702 Quick Start Manual

Rosemount 702 Quick Start Manual

Wireless discrete transmitter
Hide thumbs Also See for 702:

Advertisement

Quick Links

Download this manual See also: Reference Manual
Quick Start Guide
00825-0200-4702, rev. FA
December 2012

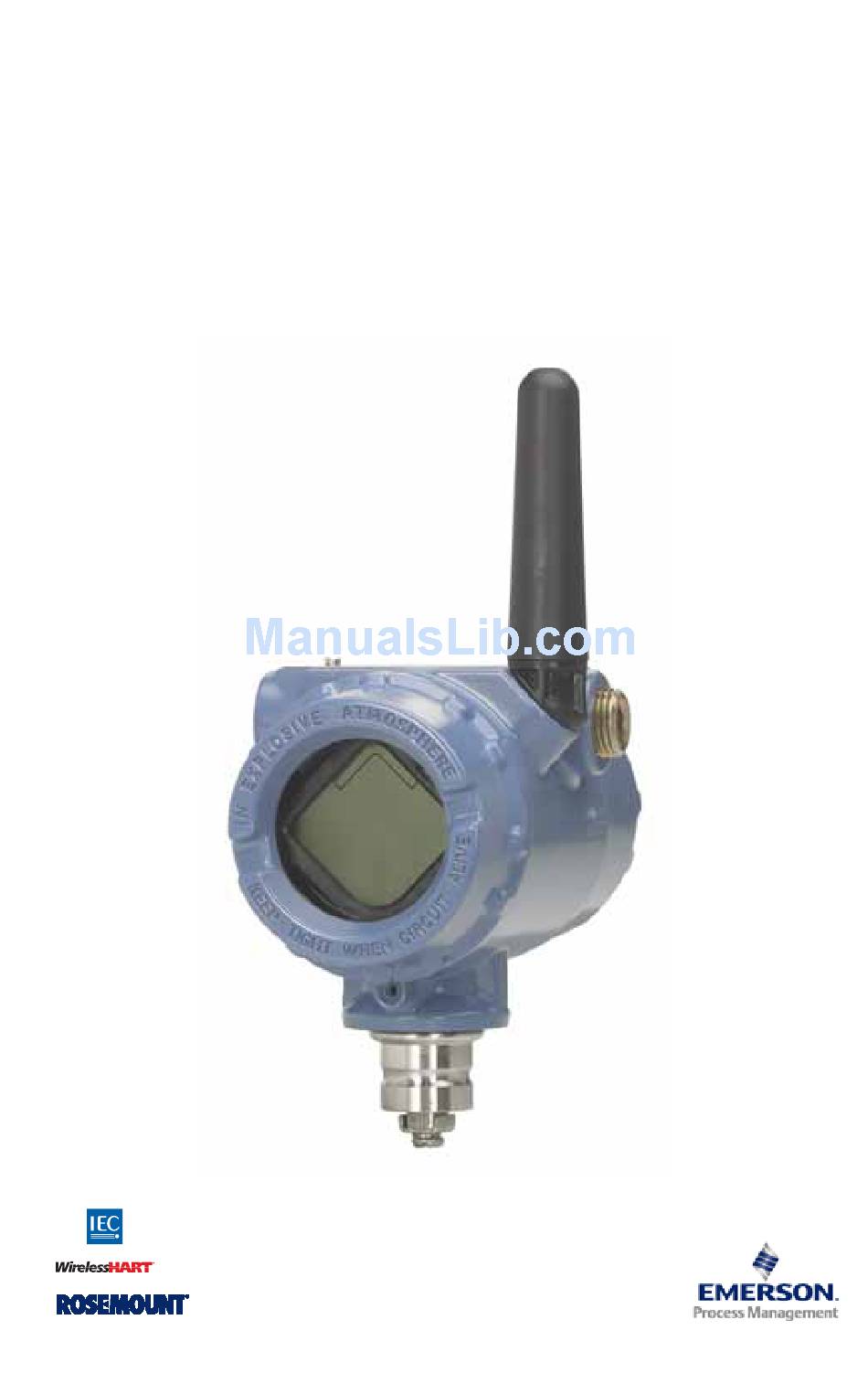

Rosemount 702 Wireless Discrete
Transmitter

Advertisement

loading
Need help?

Need help?

Do you have a question about the 702 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Rosemount 702

Summary of Contents for Rosemount 702

  • Page 1 Quick Start Guide 00825-0200-4702, rev. FA December 2012 Rosemount 702 Wireless Discrete Transmitter...

  • Page 2: Table Of Contents

    December 2012 Quick Start Guide NOTICE This installation guide provides basic guidelines for the Rosemount® 702. It does not provide instructions for detailed configuration, diagnostics, maintenance, service, troubleshooting, or installations. Refer to the Rosemount 702 Reference Manual (Document Number 00809-0200-4702) for more instruction. This guide and the manual are available electronically on www.rosemount.com.

  • Page 3: Wireless Considerations

    Install the Black Power Module, SmartPower™ Solutions model number 701PBKKF (part number 00753-9220-0001) into the Rosemount 702 transmitter to power the device. Wireless devices should be powered up in order of proximity from the Gateway, beginning with the closest device, then working outward from the Gateway.
  • Page 4 Conduit Entry Field communicator connections The Power Module needs to be installed before the Field Communicator can interface with the Rosemount 702 transmitter. This transmitter uses the Black Power Module; please order model number 701PBKKF or part number 00753-9220-0001. Figure 3. Connection Diagram...

  • Page 5: Physical Installation

    Quick Start Guide December 2012 The Rosemount 702 transmitter and all other wireless devices should not be set up until after the Smart Wireless Gateway has been installed and is functioning properly. The Rosemount 702 transmitter can be installed in one of two configurations: Direct Mount, where the switch is connected directly to the Rosemount 702 transmitter housing’s conduit entry, or Remote Mount, where the switch is...
  • Page 6 1. Install the switch according to standard installation practices making sure to use thread sealant on all connections. 2. Run wiring (and conduit if necessary) from the switch to the Rosemount 702 transmitter. 3. Pull the wiring through the threaded conduit entry of the Rosemount 702 transmitter.
  • Page 7 The antenna should be approximately 3-ft. (0.91 m) from any large structures or buildings, to allow clear communication to other devices. High gain, remote antenna (optional) The high gain, remote antenna options provide flexibility for mounting the Rosemount 702 transmitter based on wireless connectivity, lightning protection, and current work practices.
  • Page 8 December 2012 Quick Start Guide When installing remote mount antennas for the Rosemount 702 transmitter, always use established safety procedures to avoid falling or contact with high-power electrical lines. Install remote antenna components for the Rosemount 702 transmitter in compliance with local and national electrical codes and use best practices for lightning protection.

  • Page 9: Device Network Configuration

    Network ID and Join Key of the Gateway and other devices in the network. If the Network ID and Join Key do not match that of the Gateway, the Rosemount 702 transmitter will not communicate with the network. The Network ID and Join Key...

  • Page 10: Verify Operation

    Field Communicator, using the Smart Wireless Gateway’s integrated web interface, or by using AMS® Suite Wireless Configurator. If the Rosemount 702 transmitter was configured with the Network ID and Join Key, and sufficient time has passed, the transmitter will be connected to the network.
  • Page 11 December 2012 Local display Start-up sequence When the Rosemount 702 transmitter is first powered up, the LCD will display a sequence of screens: All Segments On, Device Identification, Device Tag, and then the user chosen variables of the periodic display.
  • Page 12 If the device joins the network and immediately has an alarm present, it is likely caused by the “702 Transmitter Terminal Diagram” sensor configuration. Check the sensor wiring (see on page 15 “Rosemount 702 transmitter Fast Key ) and the sensor configuration (see Sequence” on page 29 Figure 7. Smart Wireless Gateway Explorer Page...

  • Page 13: Troubleshooting

    Quick Start Guide December 2012 Figure 8. AMS Wireless Configurator, Device Explorer Screen Troubleshooting If the device is not joined to the network after power up, verify the correct configuration of the Network ID and Join Key, and that Active Advertising has been enabled on the Smart Wireless Gateway.

  • Page 14: Reference Information: Wiring Switch Inputs, Output Circuits, And Leak

    Reference information: wiring switch inputs, output circuits, and leak sensors Dry contact switch inputs The Rosemount 702 Transmitter has a pair of screw terminals for each of two channels, and a pair of communication terminals. These terminals are labeled as follows:...
  • Page 15 Wireless output specifications Dual input The Rosemount 702 transmitter will accept the input from one or two single pole single throw switches on inputs CH1 and CH2. The wireless output of the transmitter will be both a primary variable (PV) and a secondary variable (SV). The PV is determined by the CH1 input.
  • Page 16 December 2012 Quick Start Guide Figure 11. Single, Dual Input Single or Dual Input Wireless Switch Input Wireless Output Switch Input Output Closed TRUE (1.0) Closed TRUE (1.0) Open FALSE (0.0) Open FALSE (0.0)
  • Page 17 December 2012 Dual input, limit contact logic When configured for Limit Contact Logic, the Rosemount 702 transmitter will accept the input from two single pole single throw switch on inputs CH1 and CH2, and will use limit contact logic for the determination of the wireless outputs.
  • Page 18 Quick Start Guide Dual input, opposing contact logic When configured for Opposing Contact Logic, the Rosemount 702 transmitter will accept the input from a double pole single throw switch on inputs CH1 and CH2, and will use opposing contact logic for the determination of the wireless outputs.
  • Page 19 December 2012 Momentary discrete inputs, measurement option code 32 and 42 The Rosemount 702 transmitter is capable of detecting momentary discrete inputs of 10 milliseconds or more in duration, regardless of the wireless update rate. At each wireless update, the device reports current discrete input state along with an accumulating count of close-open cycles for each input channel.
  • Page 20 Count Discrete output circuits, measurement option code 42 The Rosemount 702 transmitter has two channels that can each be configured for discrete input or output. Inputs must be dry contact switch inputs and these were described in a preceding section of this document. Outputs are a simple switch closure to activate an output circuit.
  • Page 21 Quick Start Guide December 2012 Note The output switch functionality of the Rosemount 702 transmitter requires that the network is managed by a version 4 Smart Wireless Gateway, with v4.3 or greater firmware installed. Figure 16. Output Circuit Wiring Figure 17. Possible Configurations for Both Channel 1 and Channel 2...
  • Page 22 Quick Start Guide Figure 18. Dual Output Circuits with a Common Ground If two output circuits are connected to a single Rosemount 702 transmitter with a single power supply, both CH + and CMN terminals must be connected to each output circuit.
  • Page 23 Quick Start Guide December 2012 Figure 20. Wiring an Interposing Relay to Switch Greater Currents or Voltages Leak sensors, liquid hydrocarbon detection, measurement option code 61 Terminal block connections The Liquid Hydrocarbon Detection configuration is intended for use with the Tyco®...
  • Page 24 The connections to the Fast Fuel Sensor TraceTek sensing cable are made by matching the appropriately colored wires to the matching colored termination lugs. The Rosemount 702 Wireless Discrete Transmitter can support up to 3 Fast  Fuel sensors. These Fast Fuel sensors are connected using TraceTek Modular...
  • Page 25 (Branch Connector) TT-FFS-100 or TT-FFS-250 (Fast Fuel Sensor Probe) The Rosemount 702 Wireless Discrete Transmitter can support up to 500 feet  of TraceTek hydrocarbon or solvent sensor cable (TT5000 or TT5001 series). The total amount of sensor cable connected to a single Rosemount 702 transmitter is not to exceed 500 ft (150 m).
  • Page 26 Sensor Not Connected, Assume Leak, take appropriate action Table 2 describes use of the Rosemount 702 transmitter for hydrocarbon detection in other communications protocols such as Modbus or OPC. It is imperative that both PV and SV be mapped to the host system so as to make a good interpretation of the condition and status of the leak detector.
  • Page 27 TopWorx, an Emerson company. These kits are ordered as a part of the Rosemount 702 model code, or separately as an accessory kit, and are available for both insulated and un-insulated pipes.
  • Page 28 Eye wash monitoring When the eye wash valve is activated (valve open) by pushing down on the hand paddle, the TopWorx switch is activated (closed switch) and the Rosemount 702 transmitter senses that switch closure. This switch state is then transmitted by the Rosemount 702 transmitter to the Gateway, which then sends that information to the control host or alert system.
  • Page 29 Figure 27. TopWorx switch installed on an eye wash station. Field communicator use Note In order to communicate with a Field Communicator, power the Rosemount 702 transmitter by connecting the power module Table 3. Rosemount 702 transmitter Fast Key Sequence...
  • Page 30 December 2012 Quick Start Guide Figure 28. Field Communicator Connections CH Input Mode: Dry Contact Only CH1 + CH Output Mode: 26VDC Max 100mA Max 0020 P/N 00753-9200-0020 COMM...

  • Page 31: Product Certifications

    38 The EC Declaration of Conformity begins on , and the most recent revision can be found at www.rosemount.com under Documentation. Telecommunication Compliance All wireless devices require certification to ensure that they adhere to regulations regarding the use of the RF spectrum. Nearly every country requires this type of product certification.
  • Page 32 IP66 / 67 Special Conditions of Certification: 1. The Model 702 transmitter housing contains aluminum and is considered a potential risk of ignition by impact or friction. Care must be taken into account during installation and use to prevent impact and friction.
  • Page 33 Ex ia IIC T4 Ga (–60 °C ≤ Tamb ≤ +70 °C) 1180 IP66 / IP67 FOR USE WITH ROSEMOUNT SMARTPOWER ™ POWER MODULE PART NUMBER 753-9220-0001, or FOR USE WITH EMERSON PROCESS MANAGEMENT SMART POWER OPTION 701PBKKF WARNING – POTENTIAL ELECTROSTATIC CHARGING HAZARD – SEE...
  • Page 34 December 2012 Quick Start Guide SWITCH TERMINAL OUTPUT PARAMETER LIMITS Option Code 22 = 6.6 V = 26 mA = 42.6 mW = 11 uF = 25 mH Special Conditions for Safe Use (X) 1. The surface resistivity of the antenna is greater than 1G. To avoid electrostatic change build-up, it must not be rubbed or cleaned with solvents or a dry cloth.
  • Page 35 Markings: Ex ia IIC T5 Ga (–60 °C ≤ Ta ≤ +40 °C); Ex ia IIC T4 Ga (–60 °C≤ Ta ≤ +70 °C) IP66 / IP67 FOR USE WITH ROSEMOUNT SMARTPOWER ™ POWER MODULE PART NUMBER 753-9220-0001, or FOR USE WITH EMERSON PROCESS MANAGEMENT SMART POWER OPTION 701PBKKF WARNING –...
  • Page 36 December 2012 Quick Start Guide SWITCH TERMINAL OUTPUT PARAMETER LIMITS Option Code 22 = 6.6 V = 26 mA = 42.6 mW = 11 uF = 25 mH Special conditions for safe use (X) 1. The surface resistivity of the antenna is greater than 1 G. To avoid electrostatic charge build-up, it must not be rubbed or cleaned with solvents or a dry cloth.
  • Page 37 Quick Start Guide December 2012 Japanese Certifications I4 TIIS Intrinsic Safety Certificate Number: TC18640 Markings:Ex ia IIC T4 Ambient Temp -20~ 60 °C Dry Contact Inputs Option Code 22 = 6.6 V = 26 mA = 42.6 mW = 10.9 uF = 25 uH China (NEPSI) Certifications I3 China Intrinsic Safety...
  • Page 38 December 2012 Quick Start Guide Figure 29. EC Declaration of Conformity for Rosemount 702...
  • Page 39 Quick Start Guide December 2012...
  • Page 40 December 2012 Quick Start Guide...
  • Page 41 Quick Start Guide December 2012...
  • Page 42 T 49 (8153) 9390, F49 (8153) 939172 Beijing Rosemount Far East © 2012 Rosemount Inc. All rights reserved. All marks property of owner. Instrument Co., Limited The Emerson logo is a trade mark and service mark of Emerson Electric Co No.
