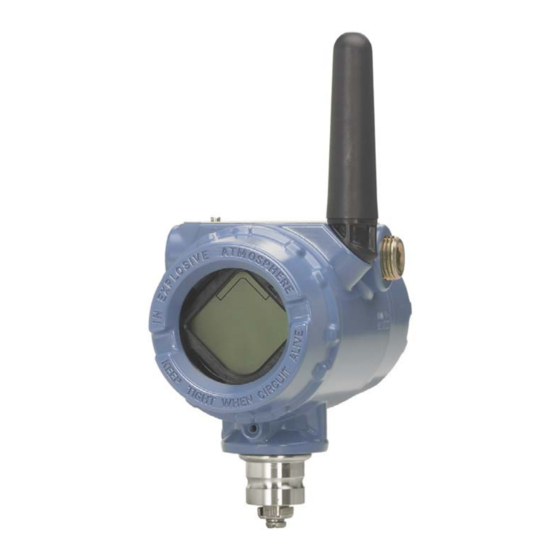

Rosemount 702 Reference Manual

Wireless discrete transmitter
Hide thumbs Also See for 702:
Table of Contents

Advertisement

Quick Links

Download this manual

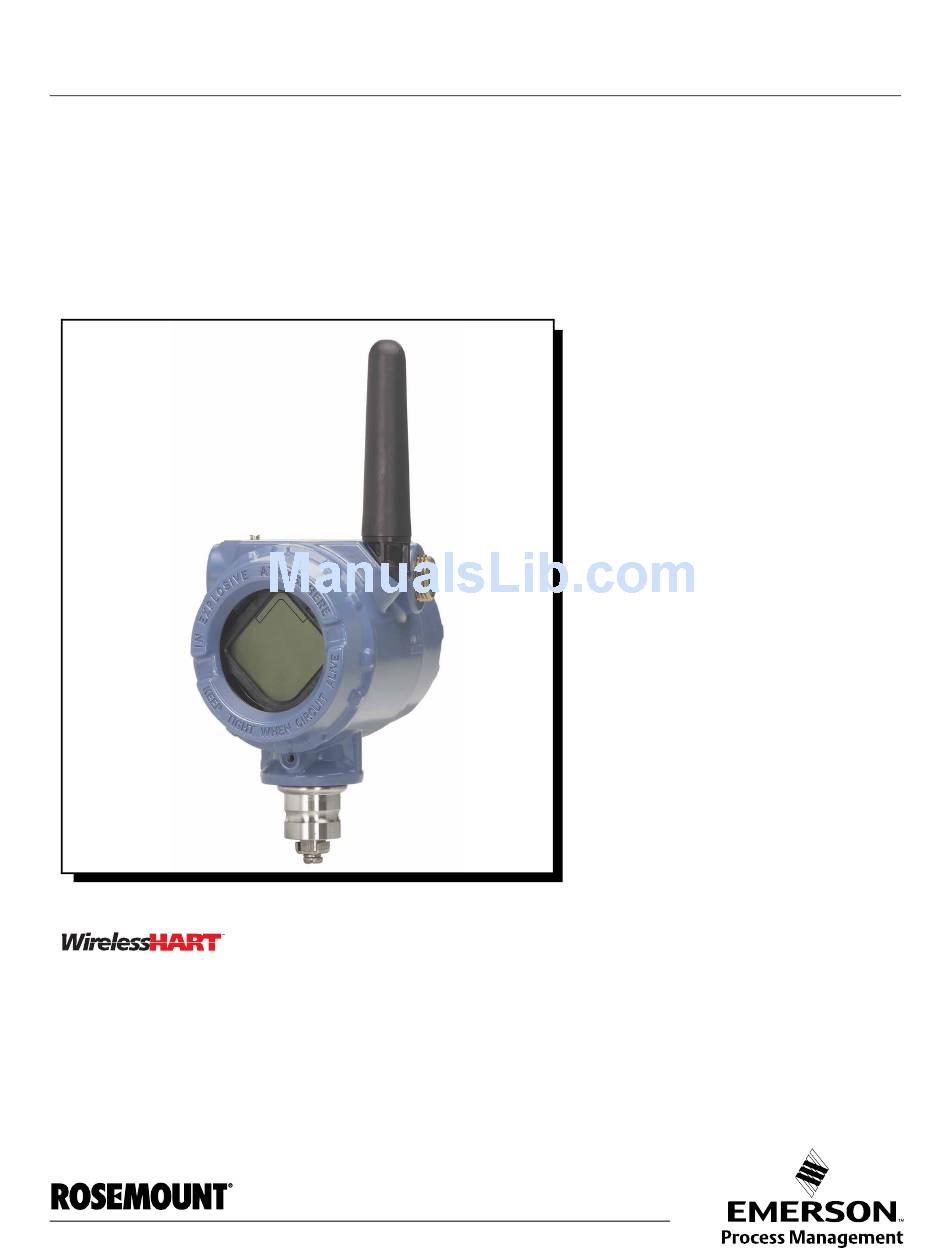

Reference Manual
00809-0200-4702, Rev BA
June 2010
Rosemount 702 Wireless Discrete Transmitter
www.rosemount.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 702 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Rosemount 702

Summary of Contents for Rosemount 702

  • Page 1 Reference Manual 00809-0200-4702, Rev BA June 2010 Rosemount 702 Wireless Discrete Transmitter www.rosemount.com...
  • Page 3 The products described in this document are NOT designed for nuclear-qualified applications. Using non-nuclear qualified products in applications that require nuclear-qualified hardware or products may cause inaccurate readings. For information on Rosemount nuclear-qualified products, contact an Emerson Process Management Sales Representative.
  • Page 4 NOTICE The Rosemount 702 and all other wireless devices should be installed only after the Smart Wireless Gateway has been installed and is functioning properly. Wireless devices should also be powered up in order of proximity from the Smart Wireless Gateway, beginning with the closest.

  • Page 5: Table Of Contents

    702 Transmitter........
  • Page 6 Reference Manual 00809-0200-4702, Rev BA Rosemount 702 June 2010 SECTION 5 Safety Messages ......... 5-1 Warnings .

  • Page 7: Safety Messages

    Safety Messages ....... . . page 1-1 702 Transmitter ........page 1-1 Considerations .

  • Page 8: Considerations

    June 2010 CONSIDERATIONS General Switches produce either an open or closed signal. By using simple HART configuration, the Rosemount 702 converts the switch signal to a wireless-enabled signal. Wireless Considerations Power Up Sequence The power module should not be installed on any wireless device until the Smart Wireless Gateway (“Gateway”) is installed and functioning properly.

  • Page 9: Mechanical

    Rosemount 702 June 2010 Figure 1-2. Conduit Entries Conduit Entry Conduit Entry Field Communicator Connections The Power Module needs to be connected for the Field Communicator to interface with the 702. Figure 1-3. Field Communicator Connections P/N 00753-9200-0020 COMM Mechanical Location When choosing an installation location and position, take into account access to the transmitter.

  • Page 10: Electrical

    June 2010 Electrical Power Module The Rosemount 702 WirelessHART™ transmitter is self-powered. The included power module contains two “C” size primary lithium/thionyl chloride batteries. Each battery contains approximately 2.5 grams of lithium, for a total of 5 grams in each pack. Under normal conditions, the battery materials are self-contained and are not reactive as long as the batteries and the power module are maintained.

  • Page 11: Service Support

    Reference Manual 00809-0200-4702, Rev BA Rosemount 702 June 2010 Example The transmitter specification limit is 185 °F (85 °C). If the ambient temperature is 131 °F (55 °C) and the maximum process temperature to be measured is 1500 °F(815 °C), the maximum permissible connection head temperature rise is the transmitter specification limit minus the ambient temperature (moves 185 °F to 131°F [85 to 55 °C]), or 86 °F (30°C).
  • Page 12 Reference Manual 00809-0200-4702, Rev BA Rosemount 702 June 2010...

  • Page 13: Safety Messages

    Reference Manual 00809-0200-4702, Rev BA Rosemount 702 June 2010 Section 2 Configuration Safety Messages ....... . . page 2-1 Device Sensor Configuration .

  • Page 14: Switch Connections

    00809-0200-4702, Rev BA Rosemount 702 June 2010 Switch Connections The 702 is compatible with a number of simple switches. When ordered in the optional configuration for Liquid Hydrocarbon Detection, option code 61, the ® ® 702 is compatible with Tyco...

  • Page 15: Device Network Configuration

    Always ensure a proper seal so that metal touches metal, but do not over tighten. Dry Contact Inputs, Measurement Option Code 22 Figure 2-1. 702 Terminal Block Connect the HART communication leads to the COMM terminals on the terminal block.

  • Page 16: Liquid Hydrocarbon Detection, Measurement Option Code 61

    Figure 2-2. Fuel Sensor Terminal Diagram Connect Tyco TraceTek and Fast Fuel sensor lead wires by matching the colors of wires to colors on terminal block. Figure 2-3. Field Communicator Connections P/N 00753-9200-0020 COMM For HART communication, a 702 DD is required.

  • Page 17: Hart Menu Tree

    Reference Manual 00809-0200-4702, Rev BA Rosemount 702 June 2010 HART MENU TREE For ease of operation, changing setup, such as switch type, can be completed in several locations. Dry Contact Inputs, Measurement Option Code 22 Figure 2-4. Field Communicator Menu Tree, DD Revision 2 1.

  • Page 18: Liquid Hydrocarbon Detection, Measurement Option Code 61

    Reference Manual 00809-0200-4702, Rev BA Rosemount 702 June 2010 Liquid Hydrocarbon Detection, Measurement Option Code 61 Figure 2-5. Field Communicator Menu Tree, DD Revision 1, for Leak Detection 1. Network ID 1. Device Status 2. Join Device to Network 2. Communication Status 1.

  • Page 19: Fast Key Sequence

    Table 2-1 lists the fast key sequence for common transmitter functions. NOTE: The fast key sequences assume that a current DD is being used: DD Rev 2 for dry contact inputs, and DD Rev 1 for leak detection. Table 2-1. 702 Fast Key Sequence Function Key Sequence...
  • Page 20 Reference Manual 00809-0200-4702, Rev BA Rosemount 702 June 2010...

  • Page 21: Safety Messages

    Reference Manual 00809-0200-4702, Rev BA June 2010 Rosemount 702 Section 3 Mounting, Wiring Switches, and Sensors Safety Messages ........page 3-1 Mounting .

  • Page 22: Mounting

    MOUNTING The Rosemount 702 can be installed in one of two configurations: Direct Mount: The switch is connected directly to the 702’s housing’s conduit entry. For installation instructions see Direct Mount on page 3-2. Remote Mount: The switch is mounted separate from the 702 housing, then connected to the 702 via conduit.
  • Page 23 Reference Manual 00809-0200-4702, Rev BA June 2010 Rosemount 702 Figure 3-2. Power Module Installation Close the housing cover and tighten to safety specifications. Always ensure a proper seal by installing the electronic housing covers so that metal touches metal, but do not over tighten.

  • Page 24: Remote Mount

    Pull the wiring through the threaded conduit entry. Attach the switch wiring to the terminals as shown in the wiring diagram Figure on page 3-5. If commissioning the 702, connect the power module as shown in Figure 3-2 on page 3-3. Figure 3-4. Remote Mount...

  • Page 25: Wiring Switches And Sensors

    Dual Input, No Logic Specifications The 702 Discrete Transmitter will accept the input from one or two single pole single throw switches on inputs S1 and S2. The wireless output of the transmitter will be both a primary variable (PV) and a secondary variable (SV).
  • Page 26 June 2010 Dual Input, Limit Contact Logic When configured for Limit Contact Logic, the 702 Discrete Transmitter will accept the input from two single pole single throw switches on inputs S1 and S2, and will use limit contact logic for the determination of the wireless outputs.

  • Page 27: Liquid Hydrocarbon Detection, Measurement Option Code 61

    (TT-ZBC-MC-BLK) as suggested in Figure 3-11. • If more than one Tyco Fast Fuel sensor is attached to a 702 transmitter, the detection of liquid hydrocarbon by one sensor is sufficient to cause the 702 to send a “Leak” message. However, it is not possible for the...
  • Page 28 500 feet of TraceTek hydrocarbon or solvent sensor cable (TT5000 or TT5001 series). The total amount of sensor cable connected to a single 702 transmitter is not to exceed 500 ft. However leader cable, jumper cables (if used) and branch connectors are not included in the 500 foot limit.

  • Page 29: Lcd Display

    Operating: -4 to 175 °F (-20 to 80 °C) Storage: -40 to 185 °F (-40 to 85 °C) Replace the transmitter cover. NOTE Only use Rosemount Wireless LCD Part Number: 00753-9004-0002. Figure 3-13. Optional LCD DIsplay Pins LCD Display Cover...

  • Page 30: Ground The Transmitter

    Rosemount 702 June 2010 GROUND THE The Rosemount 702 operates with the housing grounded or floating. Floating systems, however, can cause extra noise that may affect many types of TRANSMITTER readout devices. If the signal appears noisy or erratic, grounding at a single point may solve the problem.

  • Page 31: Safety Messages

    • Use extreme caution when making contact with the leads and terminals. NOTE The Rosemount 702 and all other wireless devices should be installed only after the Gateway has been installed and is functioning properly. Wireless devices should be powered up in order of proximity from the Gateway, beginning with the device closest to the Gateway.

  • Page 32: Verify Operation

    S R C H N G N E G O T L I M - O P Field Communicator A 702 DD is required for HART communication. For connecting with a Field Communicator, refer to Figure 2-2 on page 2-3. Function Key Sequence...

  • Page 33: Ams Wireless Configurator

    Reference Manual 00809-0200-4702, Rev BA Rosemount 702 June 2010 Figure 4-1. Smart Wireless Gateway Network Settings AMS Wireless When the device has joined the network, it will appear in the Device Manager as illustrated below Configurator Troubleshooting If the device is not joined to the network after power up, verify the correct configuration of the Network ID and Join Key, and verify that Active Advertising has been enabled on the Gateway.
  • Page 34 Reference Manual 00809-0200-4702, Rev BA Rosemount 702 June 2010...

  • Page 35: Safety Messages

    Reference Manual 00809-0200-4702, Rev BA Rosemount 702 June 2010 Section 5 Operation and Maintenance Safety Messages ....... . . page 5-1 Wireless Discrete Output from Switches and Sensors .

  • Page 36: Wireless Discrete Output From Switches And Sensors

    Dual Input, No Logic Specifications The 702 Discrete Transmitter will accept the input from one or two single pole single throw switches on inputs S1 and S2. The wireless output of the transmitter will be both a primary variable (PV) and a secondary variable (SV).
  • Page 37 TRUE (1.0) Dual Input, Limit Contact Logic When configured for Limit Contact Logic, the 702 Discrete Transmitter will accept the input from two single pole single throw switches on inputs S1 and S2, and will use limit contact logic for the determination of the wireless outputs.
  • Page 38 June 2010 Dual Input, Opposing Contact Logic When configured for Opposing Contact Logic, the 702 Discrete Transmitter will accept the input from a single pole double throw switch on inputs S1 and S2, and will use opposing contact logic for the determination of the wireless outputs.

  • Page 39: Liquid Hydrocarbon Detection, Measurement Option Code 61

    • The Emerson Smart Wireless 702 Discrete Transmitter can support up to 3 Fast Fuel sensors. These Fast Fuel sensors are connected using TraceTek Modular Leader Cable (TT-MLC-MC-BLK), optional modular jumper cables (TT-MJC-xx-MC-BLK) and branching connectors (TT-ZBC-MC-BLK) as suggested in Figure 3-11.
  • Page 40 Rosemount 702 June 2010 The following figures show how the AMS Suite Intelligent Device Manager overview screen looks for the 702 Liquid Hydrocarbon Detection option, for each of the leak sensor conditions. Figure 5-7. Normal - AMS Device Manager Overview screen Figure 5-8.
  • Page 41 1.0 or 0.0 Leak detected, sensor status good Sensor Not Connected, Assume Leak, take appropriate action Table 5-1 describes use of the 702 Discrete Transmitter for hydrocarbon detection in other communications protocols such as Modbus or OPC. It is imperative that both PV and SV be mapped to the host system so as to make a good interpretation of the condition and status of the leak detector.
  • Page 42 Tyco TraceTek sensors must be installed as per manufacturer recommendations. • Do not run the 702 Discrete Transmitter for long periods (more than two weeks) with a Tyco fuel sensor in the leak state as this will more rapidly deplete the power module.

  • Page 43: Lcd Screen Messages

    Liquid Hydrocarbon Detection, Measurement Option Code 61. Startup Screen The following screens will display when the power module is first connected to the Rosemount 702. Sequence X X X X X All Segments On: used to visually determine if...

  • Page 44: Diagnostic Button Screen Sequence

    Reference Manual 00809-0200-4702, Rev BA Rosemount 702 June 2010 S N S R 2 SV Screen - Discrete input 2 True D E V TV Screen - feature board temperature value 2 5. 2 5 d e g c S u p l y QV Screen - voltage reading at the power module 7.

  • Page 45: Network Diagnostic Status Screens

    Reference Manual 00809-0200-4702, Rev BA Rosemount 702 June 2010 i d - X X Device Identification: used to determine Device ID X X X X X X Diagnostic Button Screen 3: assuming the device n e t w k has the correct join key, this ID tells the user what...
  • Page 46 Reference Manual 00809-0200-4702, Rev BA Rosemount 702 June 2010 Diagnostic Button Screen 4.3: the device has n e t w k sent JOIN request and is waiting for the ACTIVATE command j o i n g Diagnostic Button Screen 4.4: the device is in...

  • Page 47: Device Diagnostic Screens

    Reference Manual 00809-0200-4702, Rev BA Rosemount 702 June 2010 Device Diagnostic The following screens will show the device diagnostics depending on the state of the device. Screens Device Information - Status: there is a critical error D E V which may prevent the device from operating correctly.
  • Page 48 Reference Manual 00809-0200-4702, Rev BA Rosemount 702 June 2010 a l e r t Alert Screen - at least one alert is present - this screen will not display if no alerts are present p r e s n t...
  • Page 49 - check the switch s n s r and switch wiring connections - check additional status for more detailed information of the failure source f a i l u r NOTE Use Rosemount Wireless LCD Part Number: 00753-9004-0002. 5-15...

  • Page 50: Power Module Replacement

    Reference Manual 00809-0200-4702, Rev BA Rosemount 702 June 2010 POWER MODULE Expected power module life is ten years at reference conditions. REPLACEMENT When the power module needs to be replaced, remove the power module cover and the power module (Part Number 00753-9220-0001) then replace the cover.

  • Page 51: Specifications

    Reference Manual 00809-0200-4702, Rev BA Rosemount 702 June 2010 Appendix A Specifications and Reference Data Specifications ........page A-1 Dimensional Drawings .

  • Page 52: Performance Specifications

    Weight Low - Copper Aluminum: 702 without LCD - 4.6 lbs. (2 kg) 702 with M5 LCD - 4.7 lbs. (2.1 kg) Stainless Steel: 702 without LCD - 8.0 lbs. (3.6 kg) 702 with M5 LCD - 8.1 lbs. (3.7 kg) Enclosure ratings (702) Housing option code D (Aluminum) is NEMA 4X, and IP66/67.

  • Page 53: Dimensional Drawings

    Reference Manual 00809-0200-4702, Rev BA Rosemount 702 June 2010 DIMENSIONAL DRAWINGS 702 Direct Mount WM Antenna Extended Range Antenna 12.43 WK Antenna 12.43 2.4 GHz/WirelessHART Antenna (316) (316) 10.91 10.91 (277) (277) 6.718 6.718 3.457 (171) 3.457 3.457 (171) (87.8) 4.20...

  • Page 54: Ordering Information

    June 2010 ORDERING INFORMATION Table 1. 702 Wireless Discrete Transmitter Ordering Information ★ The Standard offering represents the most common options. The starred options (★) should be selected for best delivery. __The Expanded offering is subject to additional delivery lead time.
  • Page 55 ★ Thin Wire Cable Gland (3 mm - 8 mm) Typical Model Number: 702 D X 22 D 1 NA WA3 WK1 M5 (1) LCD Display not available for option code 61. (2) Long-life Power Module must be shipped separately, order Part #00753-9220-0001.
  • Page 56 Reference Manual 00809-0200-4702, Rev BA Rosemount 702 June 2010...

  • Page 57: Approved Manufacturing Locations

    20 cm from all persons. European Union The EC Declaration of Conformity for all applicable European directives for this product can be found on www.rosemount.com. A hard copy may be Directive Information obtained by contacting your local sales representative.

  • Page 58: Hazardous Locations Certificates

    <= 40 °C) 1180 IP66 / IP67 For use with Rosemount SmartPower ™ options P/N 753-9220-XXXX only Special conditions for safe use (X) The surface resistivity of the antenna is greater than 1 gigaohm. To avoid electrostatic charge build-up, it must not be rubbed or cleaned with solvents or a dry cloth.
  • Page 59 Ex ia IIC T5 (-60 °C <= T <= 40 °C) IP66 / IP67 For use with Rosemount SmartPower options P/N 753-9220-XXXX only Special conditions for safe use (X) The surface resistivity of the antenna is greater than 1 gigaohm. To avoid electrostatic charge build-up, it must not be rubbed or cleaned with solvents or a dry cloth.
  • Page 60 Reference Manual 00809-0200-4702, Rev BA Rosemount 702 June 2010 Associated apparatus should be installed in a safe location, and during installation, operation, and maintenance, the regulations of the instruction manual have to be strictly observed. End users are not permitted to change any components insides.
  • Page 61 Reference Manual 00809-0200-4702, Rev BA Rosemount 702 June 2010 Figure B-1. Rosemount 702 FM Intrinsically Safe Installation Drawing (1 of 2)
  • Page 62 Reference Manual 00809-0200-4702, Rev BA Rosemount 702 June 2010 Figure B-2. Rosemount 702 FM Intrinsically Safe Installation Drawing (2 of 2)
  • Page 63 Reference Manual 00809-0200-4702, Rev BA Rosemount 702 June 2010 Figure B-3. Rosemount 702 CSA Intrinsic Safety Installation Drawing...
  • Page 64 Reference Manual 00809-0200-4702, Rev BA Rosemount 702 June 2010...
  • Page 65 Reference Manual 00809-0200-4702, Rev BA Rosemount 702 June 2010 Index . . 1-2 ..2-3 ..1-4 Active Advertising Join Key Temperature Effects ....4-2 .
  • Page 66 Reference Manual 00809-0200-4702, Rev BA Rosemount 702 June 2010 Index-2...
  • Page 68 The Emerson logo is a trade mark and service mark of Emerson Electric Co. Rosemount and the Rosemount logotype are registered trademarks of Rosemount Inc. PlantWeb and AMS are registered trademarks of one of the Emerson Process Management group of companies.
