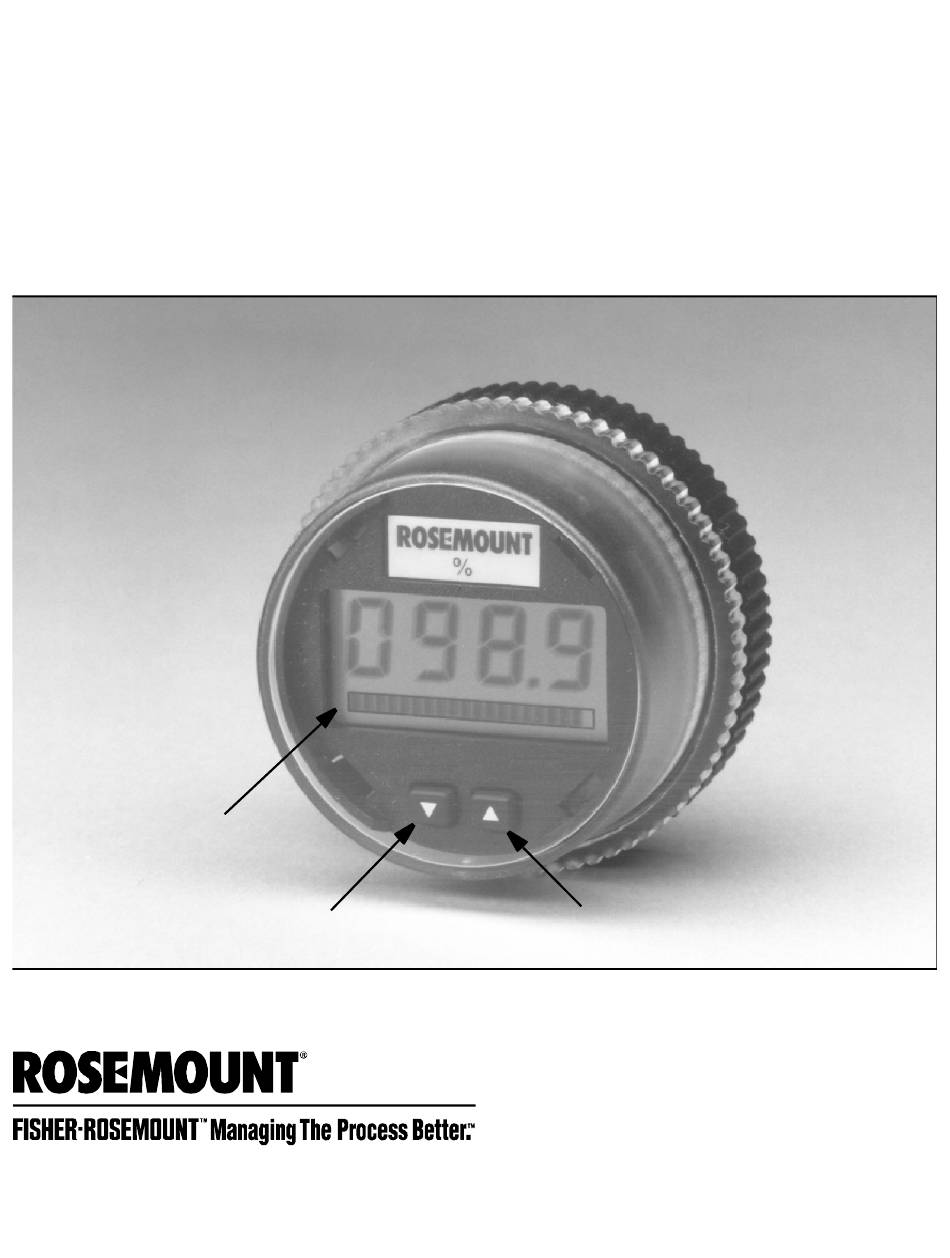

- Page 1 00809-0100-4691 English Rev. AA LCD Meter Product Manual Analog Bar Graph Left Configuration Button Right Configuration Button...

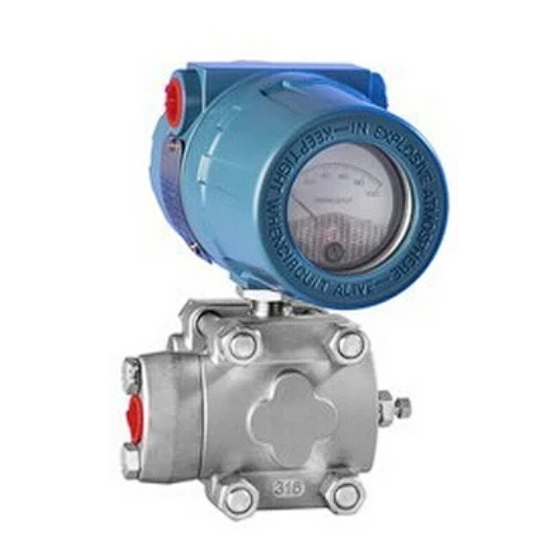

- Page 2 The Rosemount ® LCD meter is designed to be used with the Rosemount Model 1151 Smart and Analog Pressure Transmitters, the Model 1144 Pressure Transmitter, the Model 751 Field Signal Indicator, the Model 444 Temperature Transmitter, and the Model 1135 Pressure-to-Current Converter.
- Page 3 Figure 1 shows the mounting hardware required to properly install the LCD meter on a transmitter or in the field signal indicator. This mounting hardware may also be used with the Rosemount universal (analog) meter. LCD METER CONFIGURATION The LCD meter may be configured to meet specific requirements by using the left and right configuration buttons located on the meter face as shown on the cover.
- Page 4 Remove the cover 1. Unscrew the retaining ring shown on the cover and lift the transparent cover off of the housing. Position the decimal point and select the meter function 2. Press the left and right configuration buttons simultaneously and release them immediately. 3.
- Page 5 numbers, press the right configuration button. Set the numbers between –999 and 9999. The sum of the 4 mA point and the span must not exceed 9999. 11. To store the information, press both configuration buttons simultaneously for two seconds. Note that the meter displays “----”...
- Page 6 LCD METER SPECIFICATIONS Input Signal 4–20 mA dc. Meter Indication 4-digit LCD showing –999 to 9999. A 20-segment bar graph directly represents the 4–20 mA current. Digital Display Resolution 0.05% of range ±1 digit. Analog Bar Graph Resolution 1 mA or 5% of input range. Indication Accuracy 0.25% of range ±1 digit.
- Page 7 Input current < 3.5 mA: Display blank. Input current > 22.0 mA: Display flashes 112.5% of full scale value or 9999, whichever is less. Hazardous Locations Approved for use with Rosemount Models 444, 751, 1135, 1144, and 1151. Meter Size -inch diameter face with...
- Page 8 Rosemount Inc. 8200 Market Boulevard Chanhassen, MN 55317 USA Tel 1-800-999-9307 Telex 4310012 Fax (612) 949-7001 © Rosemount Inc. 1997. All rights reserved. http://www.rosemount.com ¢00809-0100-4691S¤ 00809-0100-4691, Rev. AA...
- Page 9 Mounting Screw into Housing Strap Washer Retaining Straps Mounting Screws Mounting Screw into Mounting Plate Terminal Screws (Mount into Transmitter “Test” Terminal Block) Mounting Plate Meter (Meter May Be Rotated in 90° Increments) Cover Bushing Cover Foam Spacer FIGURE 1. LCD Meter Exploded View.
