StarTech.com SDOCK1EU3P2 Quick Start Manual

Quick-start guide
Standalone Drive Eraser and Dock for 2.5in/3.5in SATA Drives - USB 3.0
- 4Kn Support
SDOCK1EU3P2
FR: Guide de l'utilisateur - fr.startech.com
DE: Bedienungsanleitung - de.startech.com
ES: Guía del usuario - es.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
IT: Guida per l'uso - it.startech.com
Introduction
You can use the SDOCK1EU3P2 standalone eraser dock to erase
your 2.5 in. and 3.5 in. SATA drives without having to connect to
a computer, which makes it easier to reuse and repurpose your
storage. The SDOCK1EU3P2 also supports 4Kn (4K native) drives.
You can connect a serial printer to the eraser and print a
confirmation that includes the time and date that you erased the
drive, as well as the erase mode that you used. The SDOCK1EU3P
supports nine erase modes, and can also be used as a single-bay
dock for your SATA drive.

Package contents

• 1 x hard drive eraser and USB 3.0 dock
• 1 x USB 3.0 cable
• 1 x universal power adapter (NA/JP, UK, EU, ANZ)
• 1 x quick-start guide
Product diagram

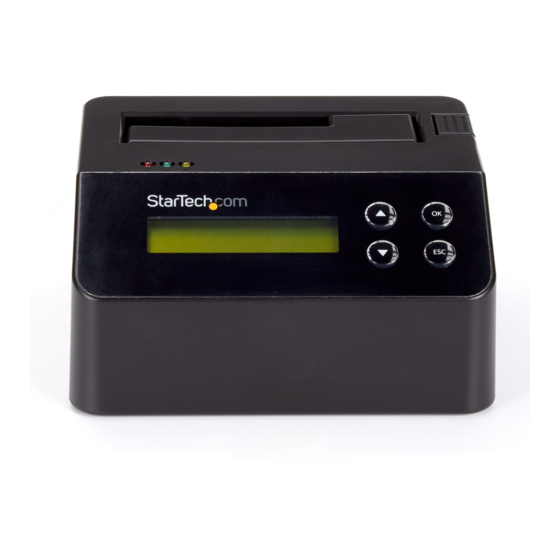

Front view

Power and link LED
Activity LED
Error LED
LCD display Menu navigation buttons
For the latest information, technical specifications, and support for
this product, please visit www.StarTech.com/SDOCK1EU3P2.
Drive bay
Eject button
OK button
ESC button
*actual product may vary from photos

Rear view

USB 3.0 port Power jack
RS232 serial-based printer port
About USB 3.0 and USB 3.1 Gen 1
USB 3.0 is also known as USB 3.1 Gen 1. This connectivity standard
offers speeds up to 5Gbps.
About available erase modes
SDOCK1EU3P2 features the following nine erase modes:
Erase option
Quick Erase
1-Pass Erase
3-Pass (DoD 5220.22-M)
3-Pass (CSEC ITSG-06)
3-Pass (HMG Enhanced IS 5)
7-Pass (VSITR)
Custom Erase
Secure Erase
Enhanced Secure Erase
Description of the process
The partition table is quickly erased.
A full disk overwrite (all zeroes)
is completed.
A multi-pass overwrite based on
DOD 5220.22-M specifications
is performed.
A multi-pass overwrite based on
CSEC ITSG-06 specifications
is completed.
A multi-pass overwrite based on
HMG IS5 (Enhanced) specifications
is completed.
A multi-pass overwrite based on
VSITR specifications is completed.
The user specifies the number of
passes and the pattern used.
The drive's internal Secure Erase
command is executed.
The drive's internal Enhanced Secure
Erase command is executed.
Manual Revision: 11/04/2016
Power
switch
