SATDOCKU3SE
Instruction Manual
USB 3.0 Hard Drive Docking
Station
SuperSpeed USB 3.0 to SATA
Hard Drive Docking Station for
2.5"/3.5" SATA Hard Drives
with
USB 3.0 ExpressCard Adapter

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SATDOCKU3S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for StarTech.com SATDOCKU3S

Summary of Contents for StarTech.com SATDOCKU3S

  • Page 1 SATDOCKU3SE Instruction Manual USB 3.0 Hard Drive Docking Station SuperSpeed USB 3.0 to SATA Hard Drive Docking Station for 2.5”/3.5” SATA Hard Drives with USB 3.0 ExpressCard Adapter...
  • Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question.

  • Page 3: Table Of Contents

    Table of Contents Introduction ... 1 Packaging Contents...1 System Requirements ...1 Front View - SATDOCKU3S ...2 Rear View - SATDOCKU3S ...2 ECUSB3S View ...3 Installation ... 4 Hardware Installation - SATDOCKU3S ...4 Driver Installation - SATDOCKU3S ...4 Hardware Installation - ECUSB3S ...5 Driver Installation - ECUSB3S ...5...

  • Page 4: Introduction

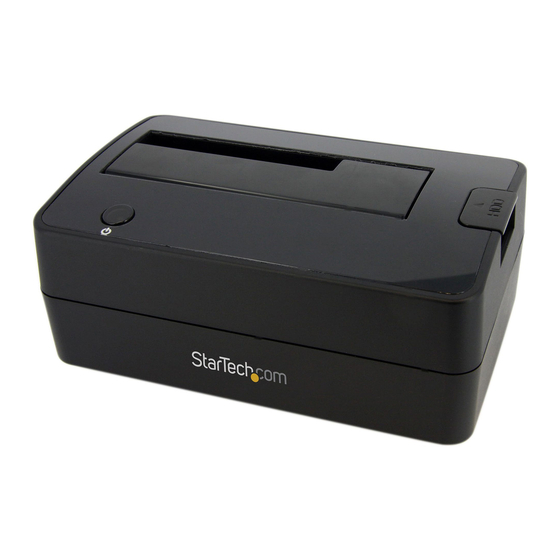

    Introduction The StarTech.com SATDOCKU3S USB 3.0 Hard Drive Docking Station delivers full and instant access to any 2.5” or 3.5” SATA hard drive (SATA 1.5/3.0Gbps), without having to mount the drive inside a computer or install it into an external enclosure. Connected through a single USB 3.0 SuperSpeed or USB 2.0 HighSpeed connection, the...

  • Page 5: Front View - Satdocku3S

    Front View - SATDOCKU3S Hard Drive Hard Drive slot Eject button Power Button Power/Activity Rear View - SATDOCKU3S USB 3.0 type B connector (Host) DC Power connector...

  • Page 6: Ecusb3S View

    ECUSB3S View DC power connector USB 3.0 type A ports...

  • Page 7: Installation

    WARNING: Hard drives require careful handling, especially when being transported. If you are not careful with your hard disk, lost data may result. Always handle storage devices with caution. Hardware Installation - SATDOCKU3S Connect the external power adapter from the hard drive dock to a power outlet.

  • Page 8: Hardware Installation - Ecusb3S

    An ExpressCard/34 to /54 bracket is recommended for those types of computers (i.e. StarTech.com ID: ECBRACKET). The card should now be detected by the computer systems operating system.

  • Page 9: Verifying Installation - Ecusb3S

    Verifying Installation - ECUSB3S Windows 2000/XP/Server 2003/Vista/7 From the main desktop, right-click on “My Computer” (“Computer” in Vista/7), then select Manage. In the new Computer Management window, select Device Manager from the left window panel. In the Device Manager, under the Universal Serial Bus Controllers category, you should see the new entries for the USB controller card.

  • Page 10: Using The Storage Device

    Using the Storage Device Windows 2000/XP/Vista/7 If you are using a brand new hard drive that does not contain any data, then you will first need to prepare the hard drive for use. From the main desktop, right-click on “My Computer” (“Computer” in Vista/7), then select Manage.
  • Page 11 The New Partition Wizard will appear. Follow the instructions in the wizard to complete setting up the drive. Once complete, the Disk should show up as “Healthy” with a drive letter assigned (i.e. E:). This drive letter should now appear within My Computer. If you are installing a hard drive that already has data on it, then after plugging it in, the drive should automatically show up with a drive letter assigned within My Computer.

  • Page 12: Specifications - Satdocku3S

    Specifications - SATDOCKU3S Bus Interface USB 3.0 1 x USB 3.0 type-B Connectors 1 x DC Power LEDs 1 x Power/Activity Chipset ID LucidPort USB300 Maximum Data Transfer Rate USB 3.0: 5Gbps 2.5” or 3.5” SATA 1.5/3.0Gbps Compatible Hard Drives with capacity up to 2TB (500GB for 2.5”)

  • Page 13: Specifications - Ecusb3S

    Specifications - ECUSB3S ExpressCard (34mm form factor) Bus Interface USB 3.0 rev1.0 Intel xHCI rev0.95 2 x USB 3.0 type A External Connectors 1 x DC power connector Chipset ID NEC uPD720200 Maximum Data Transfer Rate USB 3.0: 5Gbps Operating Temperature C to 50 C (32 F to 122...

  • Page 14: Technical Support

    Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or...
