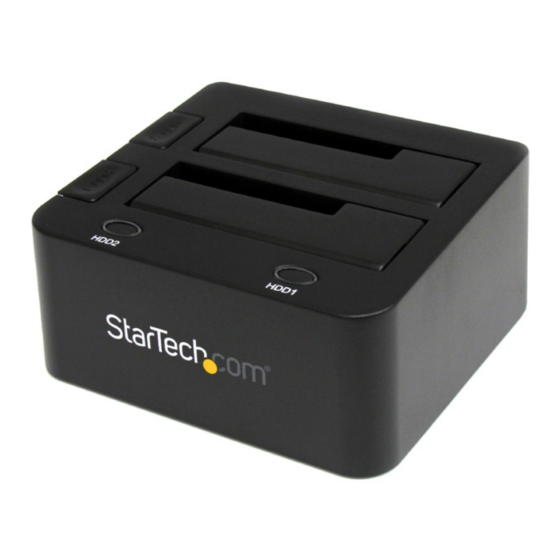

USB 3.0 to Dual 2.5/3.5in SATA HDD Dock
with UASP
SDOCK2U33
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 08/31/2016
*actual product may vary from photos
Advertisement
Table of Contents
Related Manuals for StarTech.com 8STSDOCK2U33
Summary of Contents for StarTech.com 8STSDOCK2U33
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 08/31/2016...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
-
Page 3: Table Of Contents
Table of Contents Product Overview ..................1 Front View ..............................1 Rear View ..............................1 Introduction ....................2 Packaging Contents ..........................2 System Requirements ..........................2 Installation ....................2 Docking Station Installation ........................2 Drive Installation ............................2 Drive Removal..................3 Docking Station Operation ..............4 Drive Initialization ............................ -
Page 4: Product Overview
Product Overview Front View HDD2 eject button Hard drive #2 slot HDD1 eject button Hard drive #1 slot Power button / Power and Activity Power button / LED HDD2 Power and Activity LED HDD1 Rear View USB 3.0 port Power adapter port Instruction Manual... -
Page 5: Introduction
Introduction Packaging Contents • 1 x USB 3.0 to dual 2.5/3.5 in. SATA hard drive docking station • 1 x USB 3.0 cable • 1 x universal power adapter (NA/JP, EU, UK, ANZ) • 1 x instruction manual System Requirements •... -
Page 6: Drive Removal
3. Once the drives have been installed and the docking station has been powered on, the computer Operating System will automatically recognize the drive(s) and it will be accessible as though it were installed in the system internally. Note: If your computer fails to automatically recognize your drive it is likely your drive has not been initialized or formatted correctly. -
Page 7: Docking Station Operation
Docking Station Operation Drive Initialization Prior to using your installed drive, it will need to be initialized and formatted to the operating system requirements in order for your computer system to recognize it. 1. From the main Windows desktop, right-click on “My Computer” (“Computer” in Vista/ 7 / 8/ 8.1), then select Manage. -
Page 8: Led Indicators
LED Indicators The docking station offers a power LED indicator (blue) and an activity LED indicator (red) for each drive. When the drive is powered on, the Blue LED Power indicator will illuminate. While the hard drive is being accessed, the Red LED will flash. Do not remove your drive from the docking station while the Red LED is flashing, as it could damage to your drive, resulting in data loss. -
Page 9: Specifications
Specifications Host Interface USB 3.0 External Connectors 1 x USB 3.0 B female 2 x SATA DATA (7 pin) + Power (15 pin) Internal Connectors reciprocal Maximum Data Transfer Rate USB 3.0: 5 Gbit/s Windows 2000/XP/Server 2003/Vista/Server Compatible Operating Systems 2008 R2/7/8/8.1 (32/64-bit), Mac OS 9/10, Linux, Google Chrome OS Instruction Manual... -
Page 10: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 11 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
