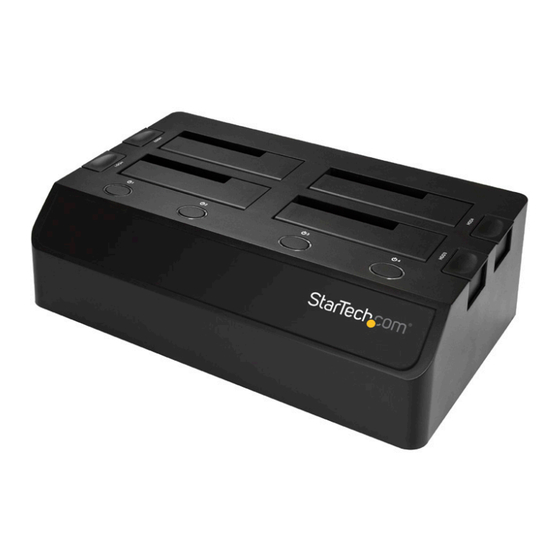

4-bay drive docking station for sata ssd/hdd

Advertisement

Quick Links

4-Bay Drive Docking Station for
SATA SSD/HDD
SDOCK4U313
FR: Guide de l'utilisateur - fr.startech.com
DE: Bedienungsanleitung - de.startech.com
ES: Guía del usuario - es.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
IT: Guida per l'uso - it.startech.com
For the latest information, technical specifications, and support for
this product, please visit www.StarTech.com/SDOCK4U313.
Manual Revision: 05/04/2018
*actual product may vary from photos

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SDOCK4U313 and is the answer not in the manual?

Questions and answers

Summary of Contents for StarTech.com SDOCK4U313

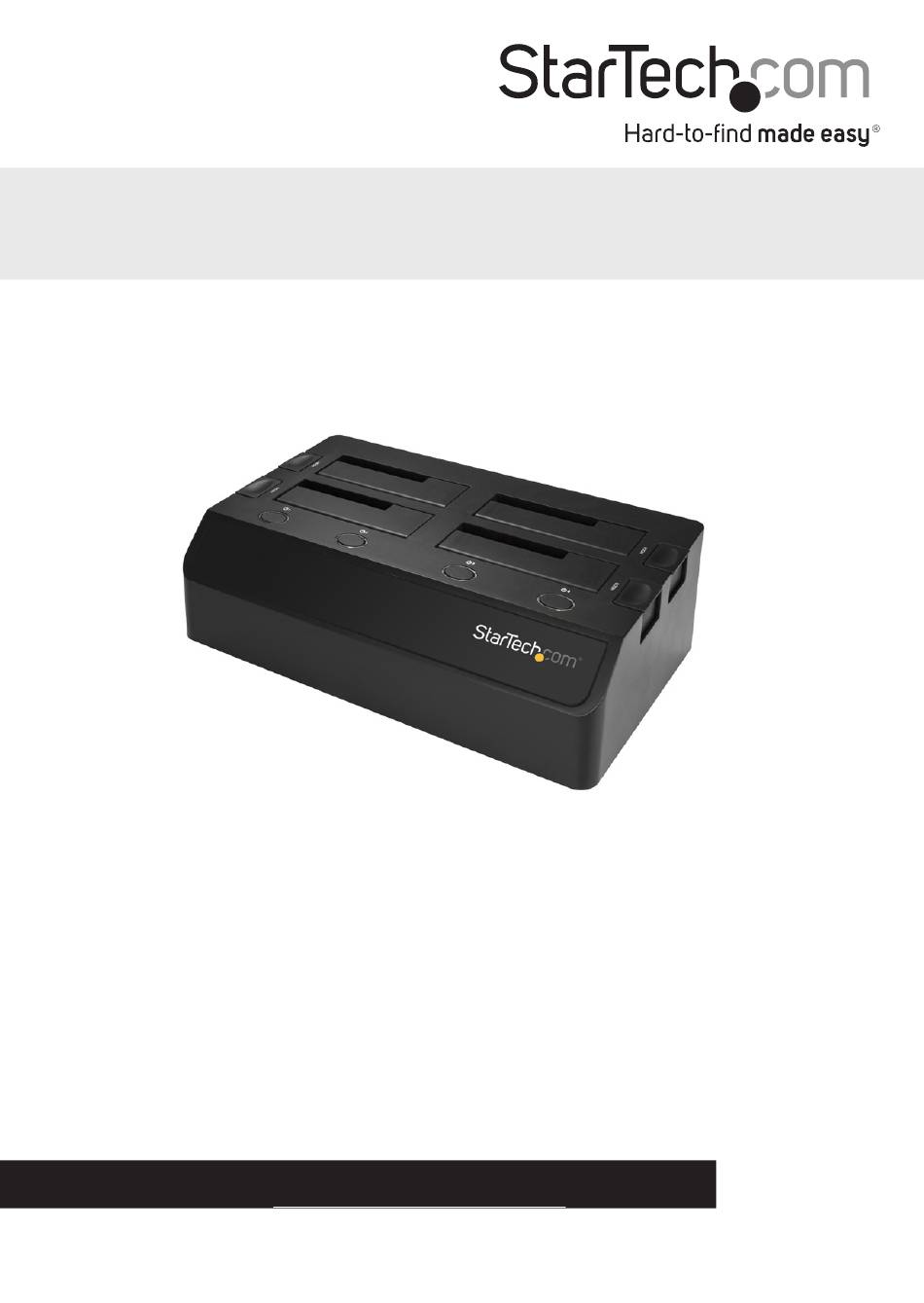

  • Page 1 4-Bay Drive Docking Station for SATA SSD/HDD SDOCK4U313 *actual product may vary from photos FR: Guide de l’utilisateur - fr.startech.com DE: Bedienungsanleitung - de.startech.com ES: Guía del usuario - es.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com IT: Guida per l’uso - it.startech.com...
  • Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
  • Page 3: Table Of Contents

    Table of Contents Product diagram ..................1 Front view ..............................1 Rear view ..............................2 Package contents ...................2 Requirements ..................3 About USB 3.1 Gen 2 ................3 About the LED indicators ..............3 Installation ....................4 Connect the dock to a computer ......................4 Insert a hard drive into the dock ......................
  • Page 4: Product Diagram

    Product diagram Front view 1 Hard drive #1 eject button 9 Hard drive #3 eject button 2 Hard drive #1 slot 10 Hard drive #3 slot 3 Hard drive #1 power and activity LED 11 Hard drive #3 power and activity LED 4 Hard drive #1 power button 12 Hard drive #3 power button 5 Hard drive #2 eject button...
  • Page 5: Rear View

    Rear view 1 Fan 2 dial 2 USB C port 3 Power adapter port 4 Fan 1 dial Package contents • 1 x docking station • 1 x USB 3.1 (Type-C) cable • 1 x USB 3.1 (Type-A) cable • 1 x universal power adapter (NA/JP, UK, EU, ANZ) •...
  • Page 6: Requirements

    10Gbps. The SDOCK4U313 is backwards compatible and supports USB 2.0 and USB 3.1 Gen 1 (5Gbps). About the LED indicators The SDOCK4U313 features a power and activity LED indicator for each of the four hard drive slots. LED status...
  • Page 7: Installation

    Installation Connect the dock to a computer 1. Connect the universal power adapter to the power adapter port on the dock and to a power source. 2. Connect the USB 3.1 (Type-C™) cable or the USB 3.1 (Type-A) cable to the USB C™ port on the dock and to the USB port on your computer.
  • Page 8: Prepare A Hard Drive For Use

    Prepare a hard drive for use Windows OS If you install a hard drive that has data on it, after you connect the dock to your computer, the hard drive appears under My Computer or Computer with a hard drive letter assigned to it.
  • Page 9: Macos

    macOS If you install a brand-new hard drive that doesn’t contain any data, you must prepare the hard drive for use. Warning! When you complete the following steps, you create a partition that uses the entire hard drive space. 1. Do one of the following: •...
  • Page 10: Windows Os

    Windows OS 1. Click the Safely remove Hardware and Eject Media icon in the task bar. 2. Select the hard drive in the list of storage devices. 3. When a message appears saying that it’s safe to remove the hard drive, press the power button next to the slot that contains the hard drive that you want to remove.
  • Page 11: Technical Support

    Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product.
  • Page 12 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
