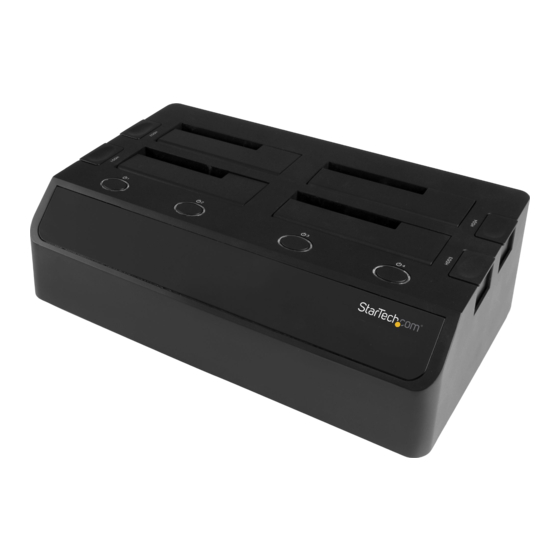

USB 3.0 4-Bay 2.5/3.5" SATA SSD/HDD Dock
with UASP
SDOCK4U33
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 08/31/2016
*actual product may vary from photos
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for StarTech.com SDOCK4U33E
Summary of Contents for StarTech.com SDOCK4U33E
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 08/31/2016...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
-
Page 3: Table Of Contents
Table of Contents Product Diagram ..................1 Front View ..............................1 Rear View ..............................2 Introduction ....................3 Packaging Contents ..........................3 System Requirements ..........................3 Installation ....................3 Docking Station Installation ........................3 Drive Installation ............................4 Drive Removal..................4 Docking Station Operation ..............5 Drive Initialization ............................ -
Page 4: Product Diagram
Product Diagram Front View 1. HDD #1 Power button/Activity LED 2. HDD #2 Power button/Activity LED 3. HDD #3 Power button/Activity LED 4. HDD #4 Power button/Activity LED 5. HDD #1 slot 6. HDD #2 slot 7. HDD #3 slot 8. -
Page 5: Rear View
Rear View 1. Cooling Fan #2 speed control 2. USB 3.0 port 3. Power adapter port 4. Cooling Fan #1 speed control Instruction Manual... -
Page 6: Introduction
Introduction Packaging Contents • 1 x USB 3.0 4-bay 2.5/3.5” SATA SSD/HDD dock • 1 x USB 3.0 cable • 1 x universal power adapter (NA/JP, EU, UK, ANZ) • 1 x instruction manual System Requirements • Computer system with available USB 3.0 (5 Gbit/s) port or USB 2.0 port (480Mbps) •... -
Page 7: Drive Installation
Drive Installation 1. Carefully align and insert the 2.5” or 3.5” SATA drive(s) you wish to dock in the desired hard drive slot on the docking station, such that the SATA power and data connectors on the drive are properly aligned with the corresponding connectors inside the hard drive slot. -
Page 8: Docking Station Operation
4. Safely and carefully store your drive in a secure location. (See your hard drive manual for proper storage instructions.) Docking Station Operation Drive Initialization Prior to using your installed drive, it will need to be initialized and formatted to the operating system requirements in order for your computer system to recognize it. -
Page 9: Led Indicators
2. A dialog window will automatically appear, asking you to initialize the drive. Depending on the version of Windows, it will give you the option of either creating an “MBR” or “GPT” disk. Note: GPT (GUID partition) is required for drives larger that 2TB but is not compatible with some older operating systems, while MBR is supported by newer and older operating systems. -
Page 10: Adjust Cooling Fan Speed
Adjust Cooling Fan Speed The docking station offers two hard drive cooling fans with adjustable speed control. To increase fan speed turn your desired Cooling fan control counter clock wise. To decrease fan speed turn your desired Cooling fan control clockwise. Disconnecting the Hard Drive Windows 1. -
Page 11: Specifications
Specifications Host Interface USB 3.0 External Connectors 1 x USB 3.0 B female 4 x SATA DATA (7 pin) + Power (15 pin) Internal Connectors reciprocal Maximum Data Transfer Rate USB 3.0: 5 Gbit/s Windows 2000/XP/Server 2003/Vista/Server Compatible Operating Systems 2008 R2/7/8/8.1 (32/64-bit), Mac OS 9/10, Linux, Google Chrome OS Instruction Manual... -
Page 12: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 13 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
