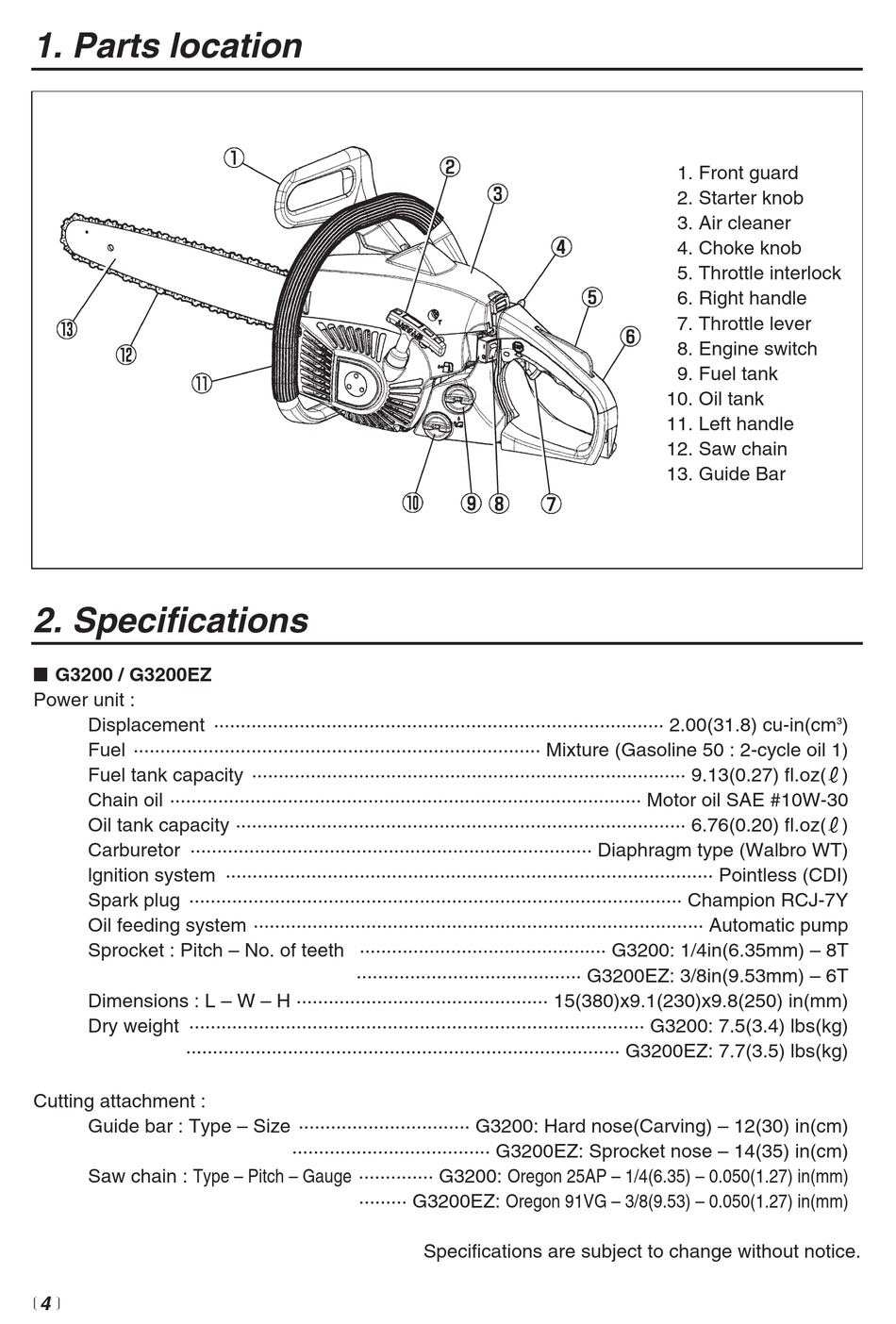

1. Parts location

2. Specifications

■ G3200 / G3200EZ
Power unit :
Displacement ···················································································· 2.00(31.8) cu-in(cm
Fuel ············································································ Mixture (Gasoline 50 : 2-cycle oil 1)
Fuel tank capacity ················································································· 9.13(0.27) fl.oz( )
Chain oil ························································································ Motor oil SAE #10W-30
Oil tank capacity ···················································································· 6.76(0.20) fl.oz( )
Carburetor ··········································································· Diaphragm type (Walbro WT)
lgnition system ··························································································· Pointless (CDI)
Spark plug ···························································································· Champion RCJ-7Y
Oil feeding system ···················································································· Automatic pump
Sprocket : Pitch – No. of teeth ·············································· G3200: 1/4in(6.35mm) – 8T
Dimensions : L – W – H ··············································· 15(380)x9.1(230)x9.8(250) in(mm)
Dry weight ····················································································· G3200: 7.5(3.4) lbs(kg)
················································································· G3200EZ: 7.7(3.5) lbs(kg)
Cutting attachment :
Guide bar : Type – Size ································ G3200: Hard nose(Carving) – 12(30) in(cm)
Saw chain : Type – Pitch – Gauge ·············· G3200: Oregon 25AP – 1/4(6.35) – 0.050(1.27) in(mm)
4 
·········································· G3200EZ: 3/8in(9.53mm) – 6T
····································· G3200EZ: Sprocket nose – 14(35) in(cm)
········· G3200EZ: Oregon 91VG – 3/8(9.53) – 0.050(1.27) in(mm)
Specifications are subject to change without notice.
1. Front guard
2. Starter knob
3. Air cleaner
4. Choke knob
5. Throttle interlock
6. Right handle
7. Throttle lever
8. Engine switch
9. Fuel tank
10. Oil tank
11. Left handle
12. Saw chain
13. Guide Bar
)
