2. Specifications

■ G5000AVS
Power unit :
Displacement ············································································································· 49.3(3.24) cc(cu. in.)
Fuel ··································································································· Mixture(Gasoline 50 : Two-cycle oil 1)
Fuel tank capacity ·········································································································· 550(1.17) cc(pints)
Chain oil ·················································································································· Motor oil SAE #10W-30
Oil tank capacity ············································································································ 260(0.55) cc(pints)
Carburetor ···································································································· Diaphragm type (Walbro WT)
Ignition system ······················································································ C.D.I. with timing advance function
Spark plug ····················································································································· Champion RCJ-6Y
Oil feeding system ········································································· Mechanical plunger pump with adjuster
Sprocket Teeth x Pitch ················································································································· 7T x .325"
Dimensions (L x W x H)····························································· 410 x 235 x 265(16.1 x 9.3 x 10.4) mm(in.)
Dry weight : Power unit only ······························································································ 5.0(11.0) kg(lbs)
Cutting head :
Guide bar : Type-Size ······························································································· Sprocket nose – 16 in.
Saw chain : Type – Pitch – Gauge ··························································· Oregon 33SL – .325 in. –.050 in.
4
English

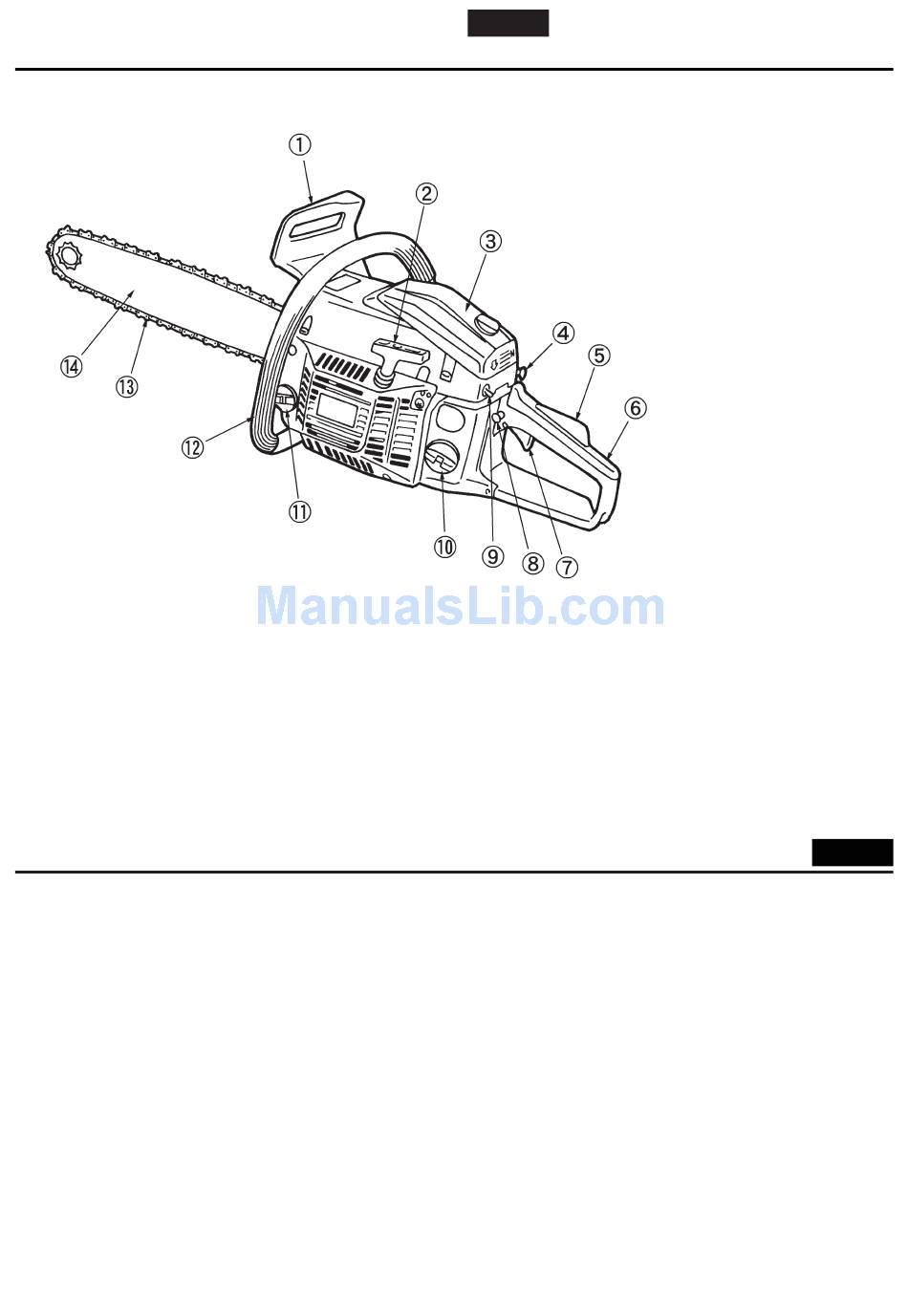

1. Parts location

1. Front guard
2. Starter knob
3. Air cleaner
4. Choke knob
5. Throttle interlock
6. Right handle
7. Throttle lever
8. Latch
9. Engine switch
10. Fuel tank
11. Oil tank
12. Left handle
13. Saw chain
14. Guide Bar
(when using ZENOAH genuine oil)
Specifications are subject to change without notice.
