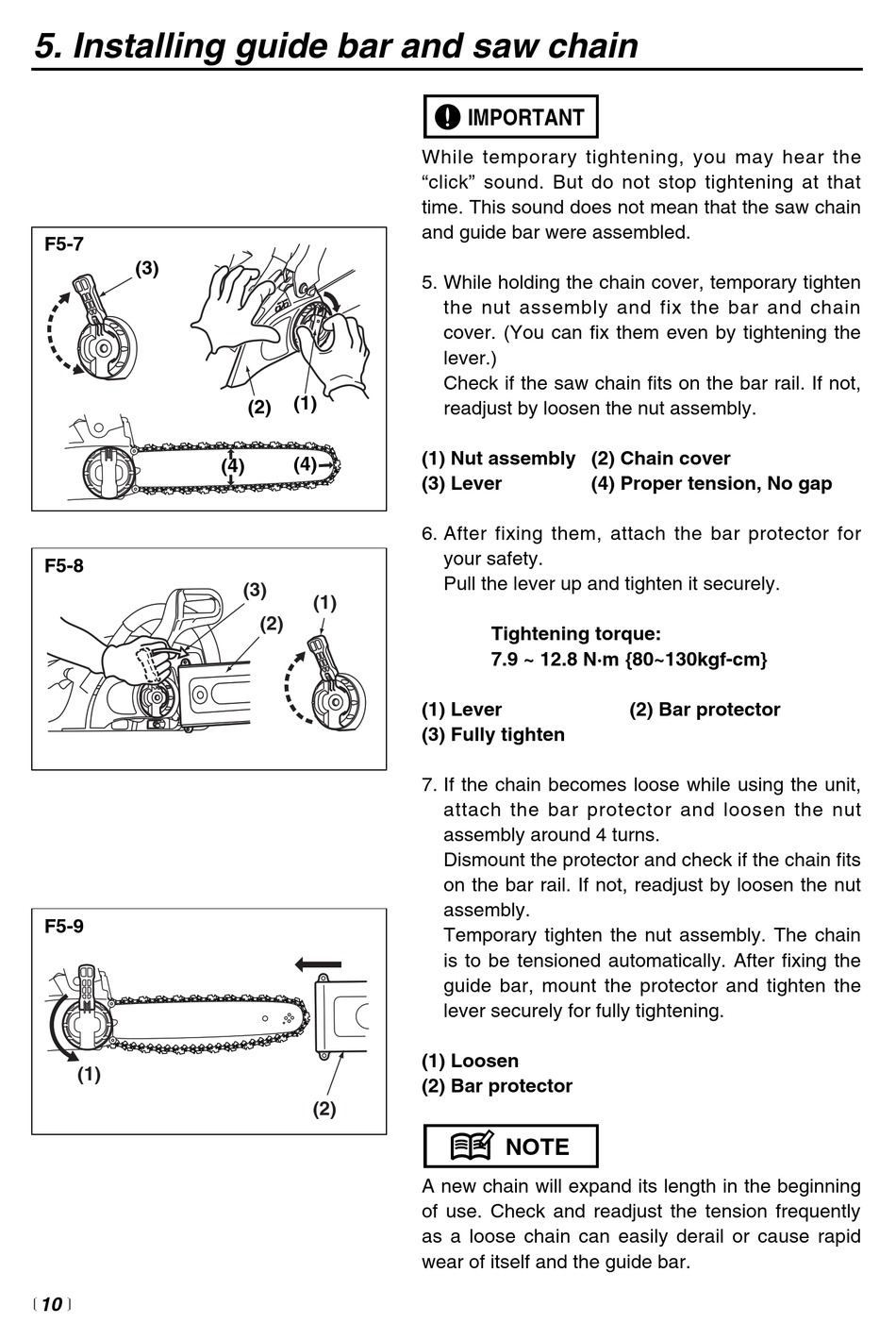

5. Installing guide bar and saw chain
F5-7
(3)
F5-8
F5-9
(1)
10 
(1)
(2)
(4)
(4)
(3)
(1)
(2)
(2)
IMPORTANT
While temporary tightening, you may hear the
"click" sound. But do not stop tightening at that
time. This sound does not mean that the saw chain
and guide bar were assembled.
5. While holding the chain cover, temporary tighten
the nut assembly and fix the bar and chain
cover. (You can fix them even by tightening the
lever.)
Check if the saw chain fits on the bar rail. If not,
readjust by loosen the nut assembly.
(1) Nut assembly (2) Chain cover
(3) Lever
6. After fixing them, attach the bar protector for
your safety.
Pull the lever up and tighten it securely.
Tightening torque:
7.9 ~ 12.8 N·m {80~130kgf-cm}
(1) Lever
(3) Fully tighten
7. If the chain becomes loose while using the unit,
attach the bar protector and loosen the nut
assembly around 4 turns.
Dismount the protector and check if the chain fits
on the bar rail. If not, readjust by loosen the nut
assembly.
Temporary tighten the nut assembly. The chain
is to be tensioned automatically. After fixing the
guide bar, mount the protector and tighten the
lever securely for fully tightening.
(1) Loosen
(2) Bar protector
NOTE
A new chain will expand its length in the beginning
of use. Check and readjust the tension frequently
as a loose chain can easily derail or cause rapid
wear of itself and the guide bar.
(4) Proper tension, No gap
(2) Bar protector
