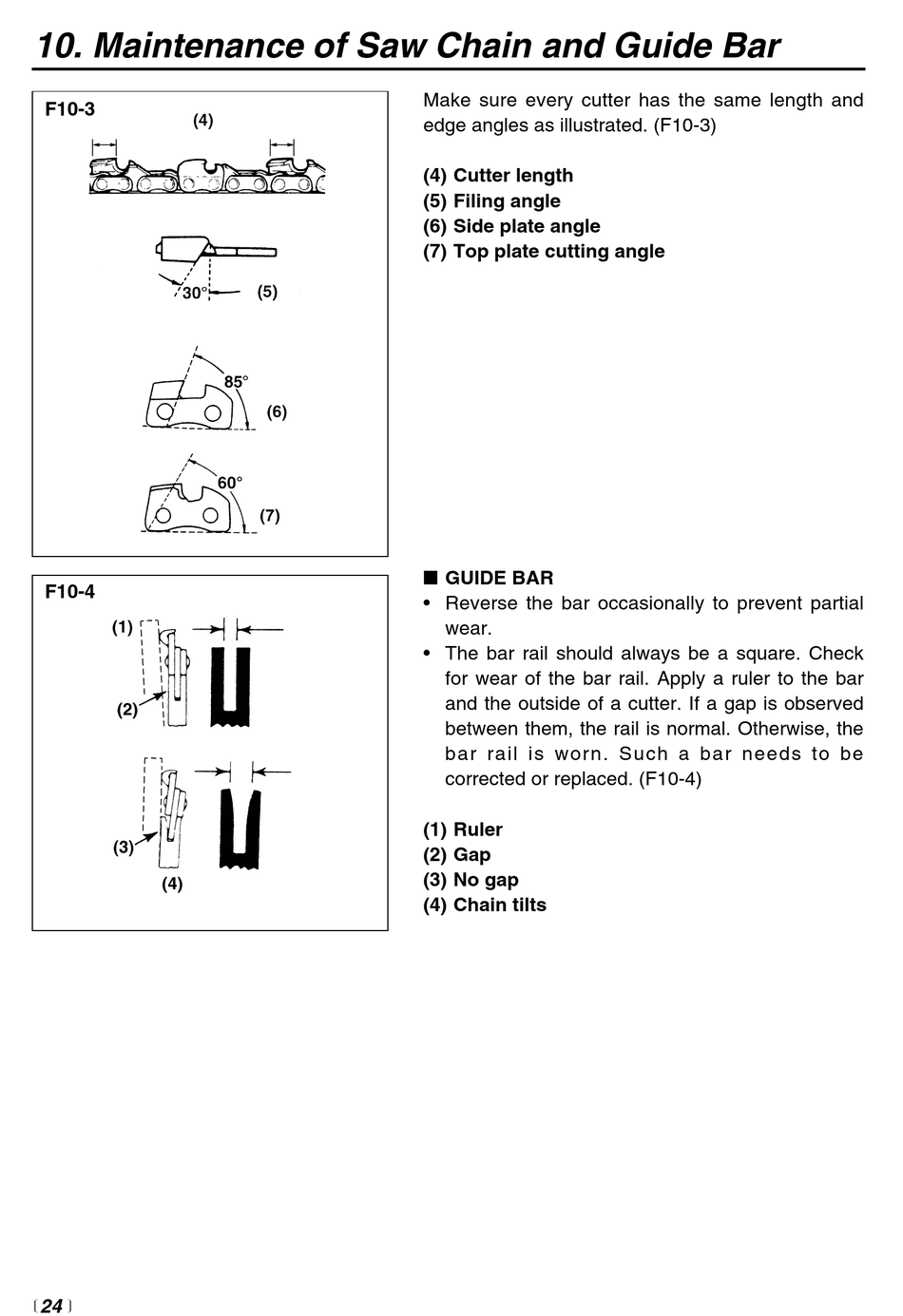

10. Maintenance of Saw Chain and Guide Bar
F10-3
F10-4
24 
Make sure every cutter has the same length and
edge angles as illustrated. (F10-3)
(4) Cutter length
(5) Filing angle
(6) Side plate angle
(7) Top plate cutting angle
■ GUIDE BAR
• Reverse the bar occasionally to prevent partial
wear.
• The bar rail should always be a square. Check
for wear of the bar rail. Apply a ruler to the bar
and the outside of a cutter. If a gap is observed
between them, the rail is normal. Otherwise, the
bar rail is worn. Such a bar needs to be
corrected or replaced. (F10-4)
(1) Ruler
(2) Gap
(3) No gap
(4) Chain tilts
