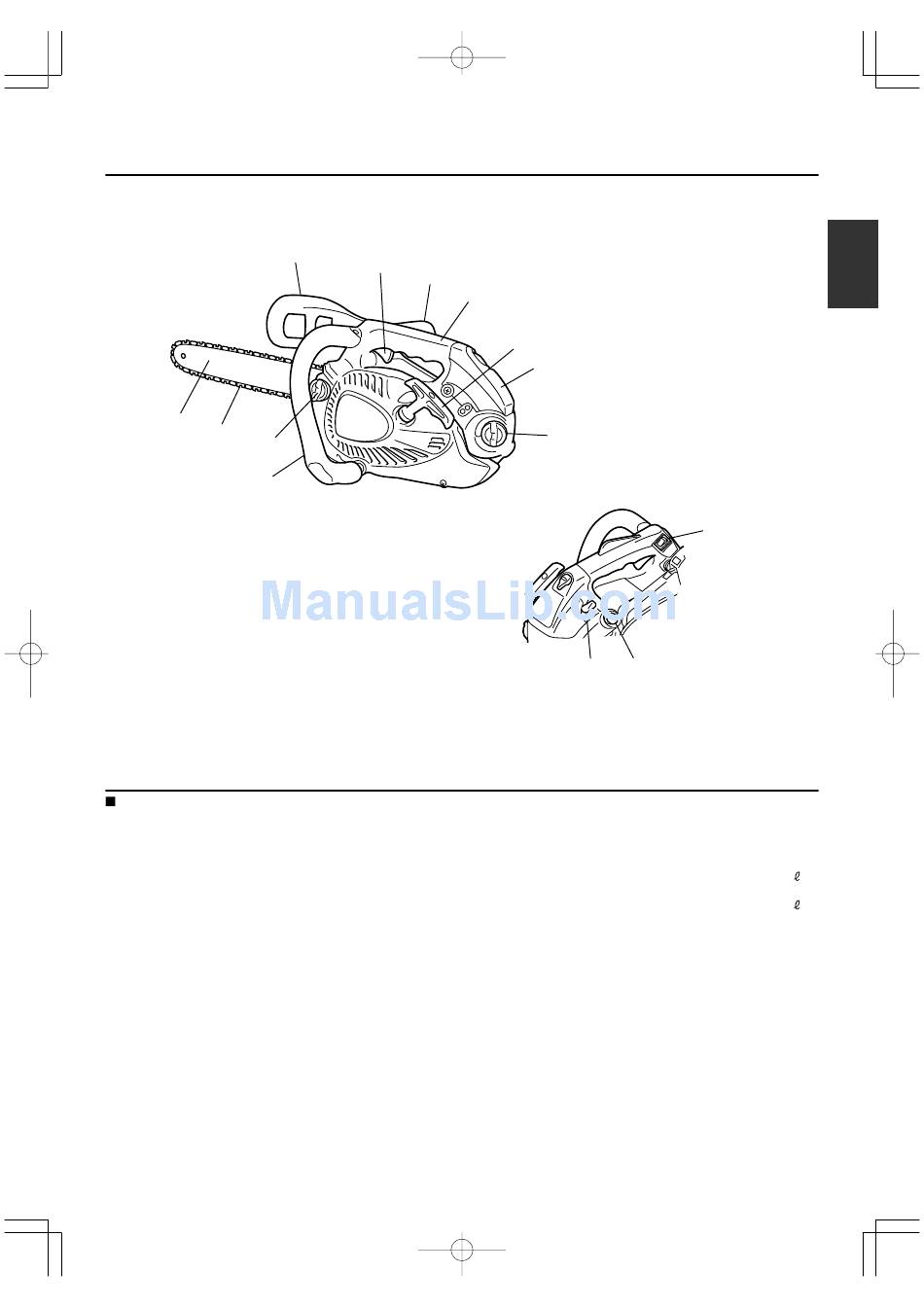

1. Parts location

(13)
(12)
(10)
(11)

2. Specifications

GZ3500T
Power unit :
Displacement ·············································································································· 2.15(35.2) cu-in(cm
Fuel ··································································································· Mixture(Gasoline 50 : Two-cycle oil 1)
································································································· (when using RedMax/ZENOAH genuine oil)
Fuel tank capacity ············································································································ 8.5(0.25) fl.oz( )
Chain oil ·················································································································· Motor oil SAE #10W-30
Oil tank capacity ············································································································· 5.70(0.17) fl.oz( )
Carburetor ····································································································· Diaphragm type (Walbro WT)
lgnition system ··································································································································· Digital
Spark plug ······························································································································ NGK CMR7H
Oil feeding system ··········································································································· Mechanical pump
Power ·························································································································· 1.45/10,000 (kw/rpm)
Max speed ································································································································ 12,500 (rpm)
Idle speed ··································································································································· 2,900 (rpm)
Sprocket : Pitch – No. of teeth ······················································································ 3/8in(9.53mm) – 6T
Dimensions : L – W – H ····································································· 11.9(297)x9.2(235)x9.0(230) in(mm)
Dry weight : Power unit only ································································································ 7.3(3.3) lbs(kg)
Cutting attachment :
Guide bar : Type – Size ···································································· Sprocket nose – 12(30), 14(35) in(cm)
Saw chain : Type – Pitch – Gauge ···································· Oregon 91VG – 3/8(9.53) – 0.050(1.27) in(mm)
(1)
(7)
(5)
(6)
(2)
(3) 10. Oil tank
11. Left handle
12. Saw chain
13. Guide bar
14. Priming bulb
(9)
(4)
(14)
Specifications are subject to change without notice.
GZ3500T
1. Front guard
2. Starter knob
3. Air cleaner cover
4. Choke knob
5. Throttle interlock
6. Right handle
7. Throttle lever
8. Engine switch
9. Fuel tank
(8)
