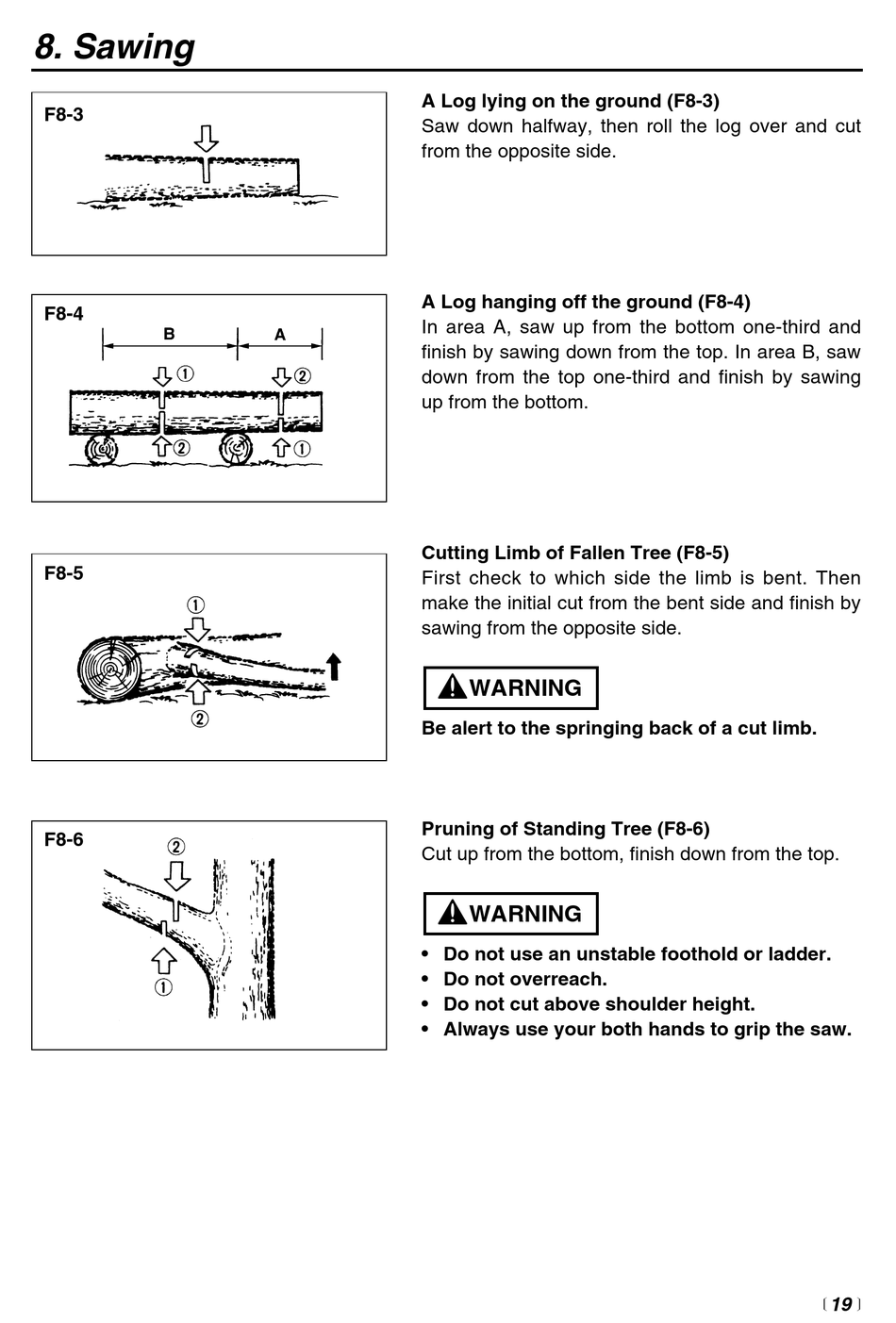

8. Sawing
F8-3
F8-4
F8-5
F8-6
A Log lying on the ground (F8-3)
Saw down halfway, then roll the log over and cut
from the opposite side.
A Log hanging off the ground (F8-4)
In area A, saw up from the bottom one-third and
finish by sawing down from the top. In area B, saw
down from the top one-third and finish by sawing
up from the bottom.
Cutting Limb of Fallen Tree (F8-5)
First check to which side the limb is bent. Then
make the initial cut from the bent side and finish by
sawing from the opposite side.
WARNING
Be alert to the springing back of a cut limb.
Pruning of Standing Tree (F8-6)
Cut up from the bottom, finish down from the top.
WARNING
• Do not use an unstable foothold or ladder.
• Do not overreach.
• Do not cut above shoulder height.
• Always use your both hands to grip the saw.
19 
