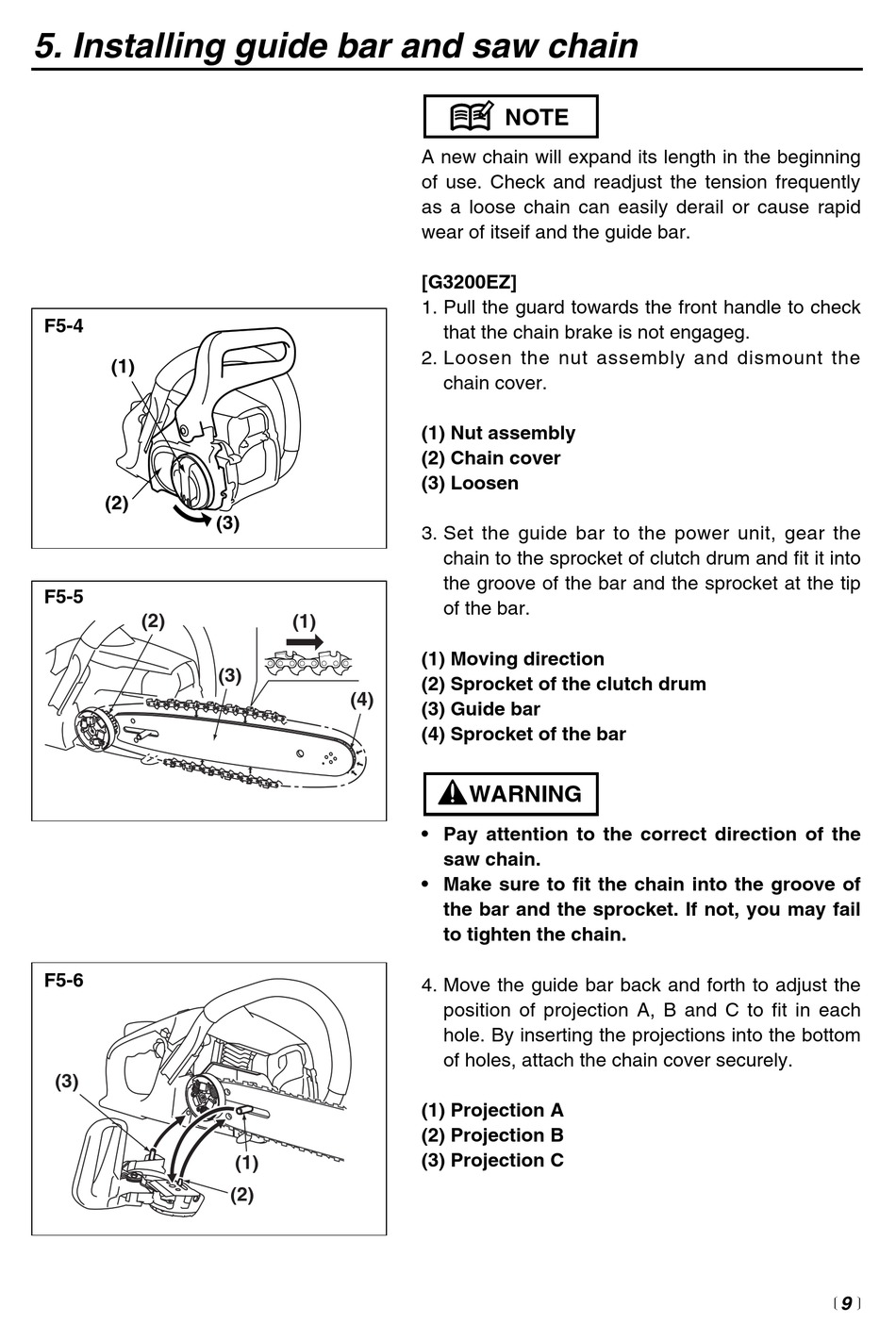

5. Installing guide bar and saw chain
F5-4
(1)
(2)
F5-5
(2)
F5-6
(3)
(3)
(1)
(3)
(4)
(1)
(2)
NOTE
A new chain will expand its length in the beginning
of use. Check and readjust the tension frequently
as a loose chain can easily derail or cause rapid
wear of itseif and the guide bar.
[G3200EZ]
1. Pull the guard towards the front handle to check
that the chain brake is not engageg.
2. Loosen the nut assembly and dismount the
chain cover.
(1) Nut assembly
(2) Chain cover
(3) Loosen
3. Set the guide bar to the power unit, gear the
chain to the sprocket of clutch drum and fit it into
the groove of the bar and the sprocket at the tip
of the bar.
(1) Moving direction
(2) Sprocket of the clutch drum
(3) Guide bar
(4) Sprocket of the bar
WARNING
• Pay attention to the correct direction of the
saw chain.
• Make sure to fit the chain into the groove of
the bar and the sprocket. If not, you may fail
to tighten the chain.
4. Move the guide bar back and forth to adjust the
position of projection A, B and C to fit in each
hole. By inserting the projections into the bottom
of holes, attach the chain cover securely.
(1) Projection A
(2) Projection B
(3) Projection C
