Black Box ServSwitch ACX1R Series Quick Start Quide

ServSwitch DKM Quick Start Guide
Table 3-1. Component descriptions.
Number Description
1 Source (computer, CPU)
2 CPU Unit
3 Interconnect cable
4 CON Unit
5 Console (monitor, keyboard, mouse)
4. DDC Information Download
By default, data from the internal DDC list is reported
to the source (computer, CPU). If these settings do not
work properly, you can download and store the con-
sole monitor's DDC information internally. The devices
must be configured accordingly.
On all KVM Extenders with USB-HID support, users
can load the console monitor's DDC information by
using keyboard commands.
1. Enter Command Mode with the "hotkey."
2. Press the <a> key to download the console
monitor's DDC information.
The screen will go black for a short time.
Command Mode is now closed, and the keyboard
LEDs return to previous status.
This re-adjusts the video mode and should give you
optimal screen quality. The CPU should now show the
console monitor as the current screen, together with
the available video resolutions.
The DDC information of the console monitor was
loaded once.
To re-load the DDC information, repeat the operation.
During DDC transfer, the status LEDs on both CON
and CPU units flash while reading (CON unit) and
copying (CPU unit) information.
724-746-5500 | blackbox.com
ACX1T
Black Box Tech
Support: FREE! Live.
24/7. Tech support
the way it should be.
Great tech support is just 30 seconds
away at 724-746-5500 or blackbox.com.
Customer Order toll-free in the U.S.:
Call 877-877-BBOX
Support
(outside U.S. call 1-724-746-5500)
Information
FREE technical support
24 hours a day, 7 days a week:
Call 724-746-5500 or
fax 724-746-0746
Mailing address:
Black Box Corporation
1000 Park Drive
Lawrence, PA 15055-1018
Web site: www.blackbox.com
E-mail: info@blackbox.com
© Copyright 2011. Black Box Corporation. All rights reserved.
Black Box and the Double Diamond logo are registered trademarks,
and ServSwitch is a trademark, of BB Technologies, Inc. TOSLINK is a
registered trademark of Kabushiki Toshiba dba Toshiba Corporation.
Any other trademarks mentioned in this manual are acknowledged to
be the property of the trademark owners.
ACX1T Quick Start Guide, rev. 1
724-746-5500 | blackbox.com

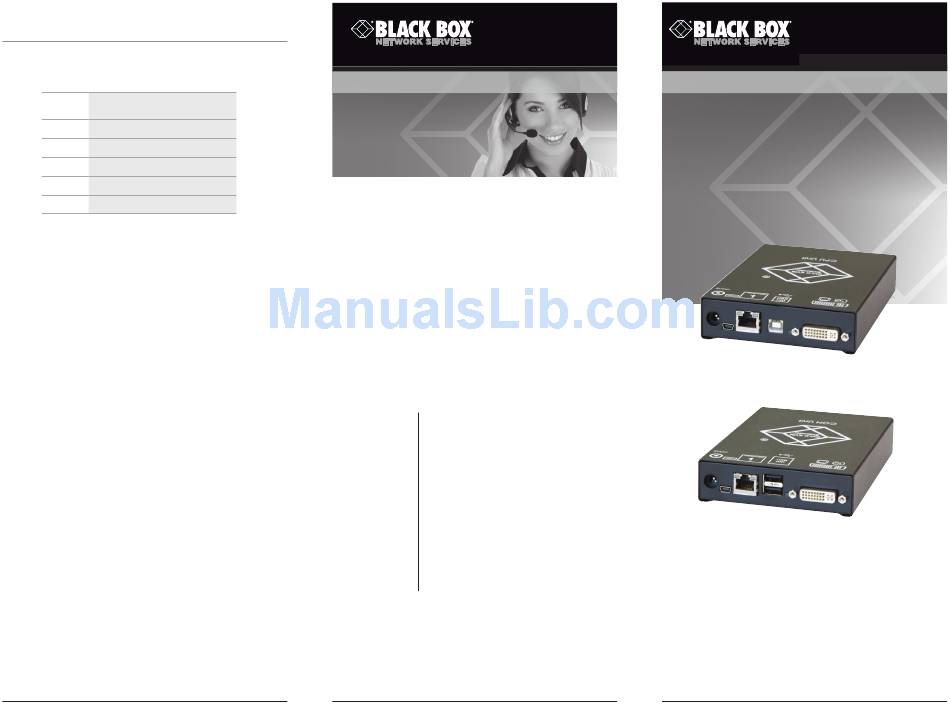

Page 5
ServSwitch
™
Quick Start Guide

BLACK BOX

®
Increase the distance between a source
(computer, CPU) and its console (keyboard,
monitor, and mouse) and other peripheral
devices.
1. What's Included
Your packages should contain the following
items. If anything is missing or damaged,
contact Black Box Technical Support at
724-746-5500 or info@blackbox.com.
• DKM Compact Extender CPU Unit
• DKM Compact Extender CON Unit
• (2) 5-VDC international power supply units
724-746-5500 | blackbox.com
Page 6
ACX1T, ACX1R Series
DKM Compact Extenders
BLACK B
