ServSwitch DKM Quick Start Guide
2.3 Setup of USB 2.0 Modules
1. Connect the CPU with the CPU module (USB 2.0).
2. Connect the USB 2.0 devices with the CON module
(connect to USB 2.0 devices).
3. System Overview
1 2 3 4

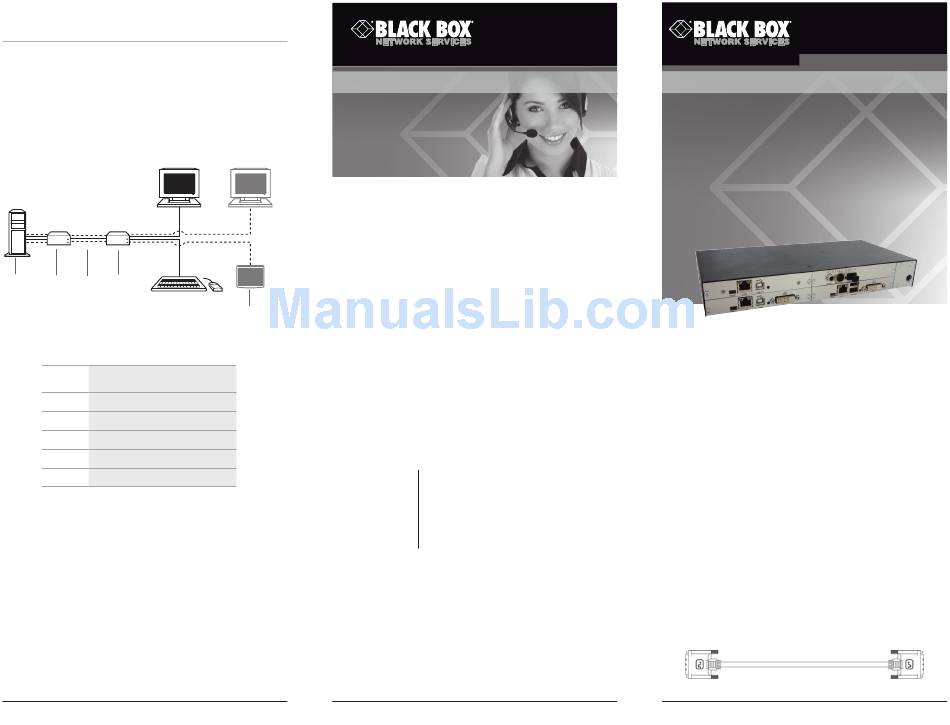

Figure 3-1. System components.
Table 2-1. Components descriptions.
Number Description
1 Source (computer, CPU)
2 CPU Module
3 Interconnect cable
4 CON Module
5 Console (monitor, keyboard, mouse)
4. DDC Information Download
By default, data from the internal DDC list is reported
to the source (computer, CPU). If these settings do not
work properly, you can download and store the
console monitor's DDC information internally. The
devices must be configured accordingly.
On all KVM Extenders with USB-HID support, users
can load the console monitor's DDC information by
using keyboard commands.
1. Enter Command Mode with the "hotkey."
2. Press the <a> key to download the console
monitor's DDC information.
724-746-5500 | blackbox.com
ACX1MT
Black Box Tech
Support: FREE! Live.
24/7. Tech support
the way it should be.
Great tech support is just 30 seconds
away at 724-746-5500 or blackbox.com.
The screen will go black for a short time.
Command Mode is now closed, and the keyboard
LEDs return to previous status.
This re-adjusts the video mode and should give you
optimal screen quality. The CPU should now show the
5
console monitor as the current screen, together with
the available video resolutions.
The DDC information of the console monitor was
loaded once.
To re-load the DDC information, repeat the operation.
During DDC transfer, the status LEDs on both CON
and CPU units flash while reading (CON module) and
copying (CPU module) information.
Customer
Support
Information
© Copyright 2011. Black Box Corporation. All rights reserved.
Black Box and the Double Diamond logo are registered trademarks,
and ServSwitch is a trademark, of BB Technologies, Inc. TOSLINK is a
registered trademark of Kabushiki Toshiba dba Toshiba Corporation.
Any other trademarks mentioned in this manual are acknowledged to
be the property of the trademark owners.
ACX1MT Quick Start Guide, rev. 1
724-746-5500 | blackbox.com
Page 5

BLACK BOX

FREE technical support
24 hours a day, 7 days a week:
Call 724-746-5500 or
fax 724-746-0746
Web site: www.blackbox.com
E-mail: info@blackbox.com
Page 6
ACX1MT, ACX1MR Series
ACXMODH Series

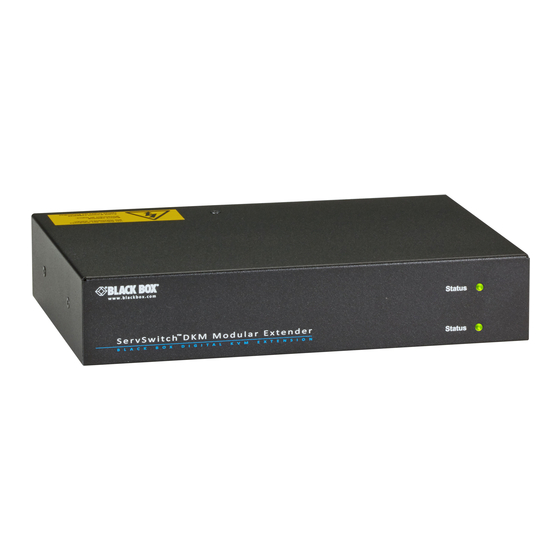

ServSwitch DKM Modular Extenders
Quick Start Guide
®
Increase the distance between a source
(computer, CPU) and its console (keyboard,
monitor, and mouse) and other peripheral
devices.
1. What's Included
Your extender package contains the following items. If
anything is missing or damaged, please contact Black
Box Technical Support at 724-746-5500 or info@
blackbox.com.
Basic Modules:
• Modular Chassis with pre-installed CON/CPU
Modules
• (1) 5-VDC international power supply unit per box
NOTE: The ACXMODH6R and ACXMODH21R have
internal power supplies instead of separate
external power supply units.
• (1) country-specific power cord per box
• Quick Setup Guide
• (1) DVI video cable (6 ft. [1.8 m] DVI-D male-to-
male)
Figure 1-1. DVI video cable.
