6. If changing the lamp, remove old lamp from lamp socket. Hold the new lamp only by its
ceramic base. Never touch the glass bulb. Insert the new lamp in the lamp socket.
7. Please turn the head in horizontal position. Hinge must be on the upper side of the head.
Turn screws left and remove plastic cover. Loosen head screw and open the lamp cover
8. With the nipple of the lamp facing the back insert one end of the lamp into the socket. Pull
up the spring of the other side of the socket and snap the other end of the lamp into place.
Make sure it fits correctly into the socket.
lamp in correct position.

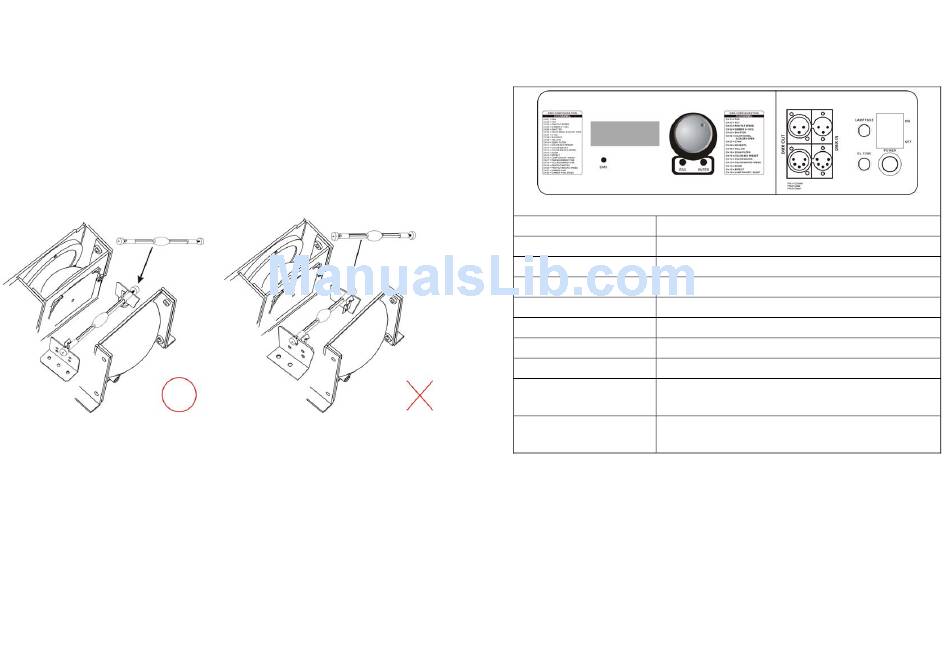

Please refer to the diagram to know how to put the
8A

4. How To Set The Unit

4.1 Control Panel

LCD monitor To show the various menus .
DMX LED DMX input present
ESC Button To go back to the previous functions
ENTER Button To confirm the selected functions
Jog wheel To select the given functions
On/Off switch Turns On/Off the power
Fuse To replace the fuse
Power cord To connect the power plug
For DMX 512 operation, use 3-pin XLR plug cable to link
3-pin XLR DMX input/output
the unit together
For DMX 512 operation, use 5-pin XLR plug cable to link
5-pin XLR DMX input/output
the unit together
9A
