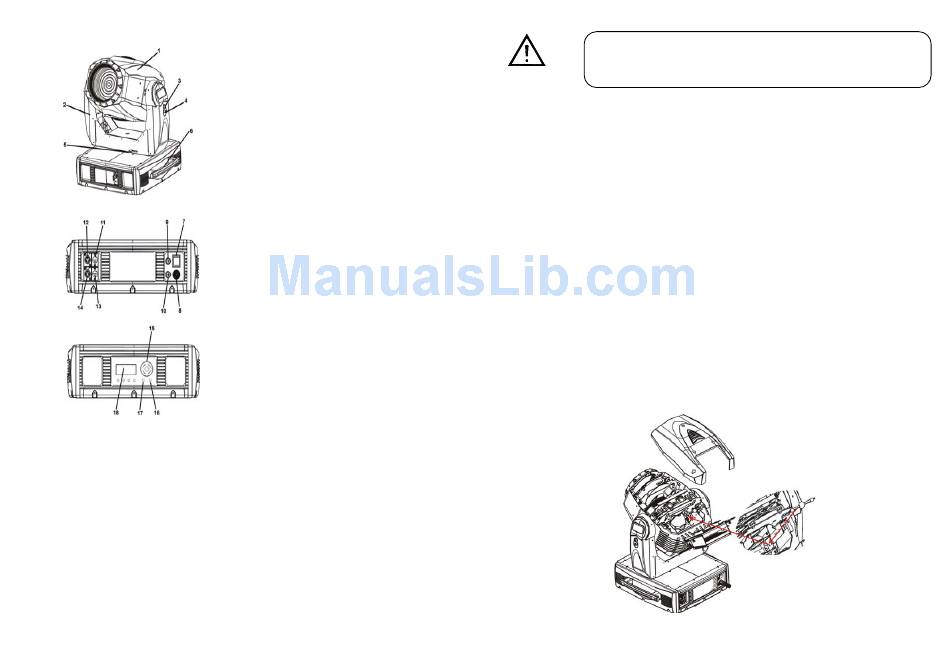

2.1. Description of the fixture

1. Moving head
2. Yoke
3. Tilt lock button (red)
4. Tilt unlock button (green)
5. Pan lock/unlock lever
6. Handle
7. Power switch
8. Power cord
9. Lamp fuse
10. Power cord EL Fuse
11. DMX In 3-Pin XLR
12. DMX Out 3-Pin XLR
13. DMX In 5-Pin XLR
14. DMX Out 5-Pin XLR
15. Jog wheel
16. Enter button
17. Esc button
18. LCD display
6A

2. Lamp

In case of replacement of the lamp or maintenance, do not open the
fixture when power off it within 15 minutes.
WARNING
Because of its high internal pressure, there might be a risk that the Discharge lamp would
explode during operation. The lamp emits intense UV radiation which is harmful to the
eyes and skin. The high luminance of the arc can cause severe damage to the retina if
looks directly at the lamp.
MSI 1200W/S, HMI 1200/S, HMQ 1200/S K SFc 10-4
1. Always switch off the main supply and never handle the lamp when it
is hot.
2. Do not touch the bulb with bare hands. If this happens, clean the lamp with denatured
alcohol and wipe it with a lint free cloth before installation.
3. The lamp generates UV radiations Never operate the lamp without appropriate shielding.
4. When power on the unit, the lamp is during high pressure and there is a slight risk of arc
tube rupture. The risk increases with age, temperature and improper handling of the lamp.
Do not use the lamp any longer than its lifespan.
5. Make sure the lamp is located in the center of the reflector for the best spot.
