4.2 Main Function

To select any of the pre-set functions, press the ENTER button and turn jog wheel until the
required one is shown on the monitor. Select the function by ENTER button. Use the jog wheel
to change the mode. Once the required mode has been selected, press the ENTER button to
setup or it will automatically return to the main functions without any change after idling 10
seconds. To go back to the previous functions without any change press the ESC button. The

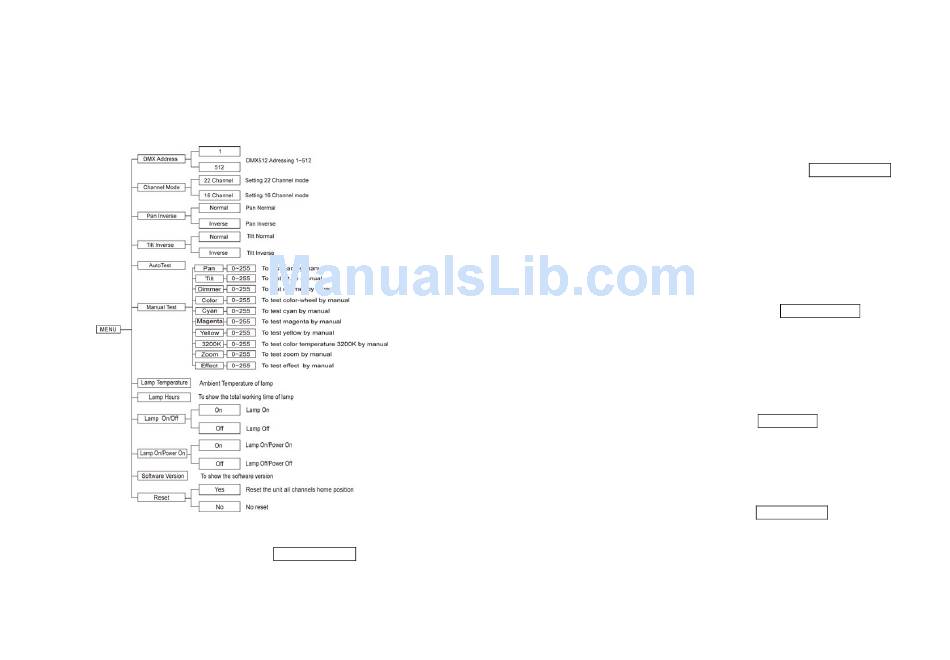

main functions are shown below:
DMX 512 Address Setting
Press the ENTER button and turn jog wheel until the
monitor. Pressing ENTER button and the display will blink. Use jog wheel to change the DMX
512 address. Once the address has been selected, press the ENTER button to setup or
automatically return to the main functions without any change after 10 seconds. To go back to
the previous functions without any change press the ESC button.
DMX Address is shown on the
10A
Channel Mode
Press the ENTER button and turn jog wheel until the Channel Mode is shown on the monitor.
Pressing ENTER button and the display will blink. Use jog wheel to select the (16 Channel ) or
(22 Channel) mode. Once the mode has been selected, press the ENTER button to setup or
automatically return to the main functions without any change after 10 seconds. To go back to
the previous functions without any change press the ESC button.
Pan Inversion
Press the ENTER button and turn jog wheel until the
on the monitor. Pressing ENTER button and the display will blink. Use jog wheel
to select the (Normal) or (Inversion) mode. Once the mode has been selected,
press the ENTER button to setup or automatically return to the main functions
without any change after 10 seconds. To go back to the previous functions
without any change press the ESC button.
Tilt Inversion
Press the ENTER button and turn jog wheel until the
monitor. Pressing ENTER button and the display will blink. Use jog wheel to select the (Normal)
or (Inversion) mode. Once the mode has been selected, press the ENTER button to setup or
automatically return to the main functions without any change after 10 seconds. To go back to
the previous functions without any change press the ESC button.
Auto Test
Press the ENTER button and turn jog wheel until the Auto Test
Pressing ENTER button and the display will blink. select option and the unit will run self-test by
built-in program. To go back to the main functions press the ESC button twice.
Manual Test
Press the ENTER button and turn jog wheel until the
Pressing ENTER button and the display will blink. Use jog wheel to select the (Pan) or (Tilt) or
(Dimmer)or ......mode. Once the mode has been selected, press the ENTER button and use
jog wheel to select the 0~255 value. Once the value has been selected, press the ENTER
button to setup or automatically return to the main functions without any change after 10
seconds.To go back to the previous functions without any change press the ESC button.
is shown
Pan Inversion
Tilt Inversion is shown on the
is shown on the monitor.
Manual Test is shown on the monitor.
