4. How To Set The Unit

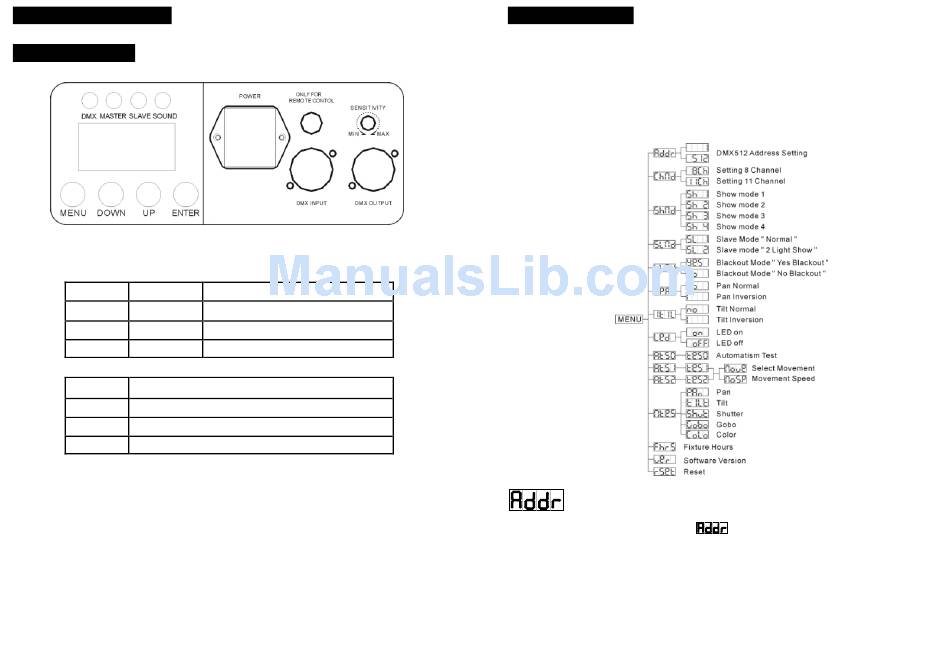

4.1 Control Panel
Display
To show the various menus and the selected f unctions
LED
DMX On
MASTER On
SLAVE On
SOUND Flashing
Button
MENU To select the programming f unctions
DOWN To go backward in the selected functions
UP To go f orward in the selected f unctions
ENTER To conf irm the selected functions
Mains input
IEC socket and integrated f use holder, connect to main power cable.
Only for remote control
By connect to the 1/4'' microphone jack to control the unit for Stand by, Function and Mode
f unction.
Sensitivity
To adjust the sound receiv ing sensitivity
DMX input/output
For DMX512 link, use 3-pin XLR plug cable to link the unit together.
DMX input present
Master Mode
Slav e Mode
Sound activ ation
6-
4.2 Main Function
To select any of the given functions, press the MENU button up to when the required one is
showing on the display. Select the function by ENTER button and the display will blink. Use
DOWN and UP button to change the mode. Once the required mode has been selected,
press the ENTER button to setup or it will automatically return to the main f unctions without
any change after idling 8 seconds. To go back to the f unctions without any change press the
MENU button. The main functions are showing below:
DMX 512 Address Setting
Press the MENU button up to when the
button and the display will blink. Use DOWN and UP button to change the DMX512 address.
Once the address has been selected, press the ENTER button to setup or automatically
return to the main functions without any change after 8 seconds. To go back to the f unctions
without any change press the MENU button again.
is showing on the display. Pressing ENTER
7-
