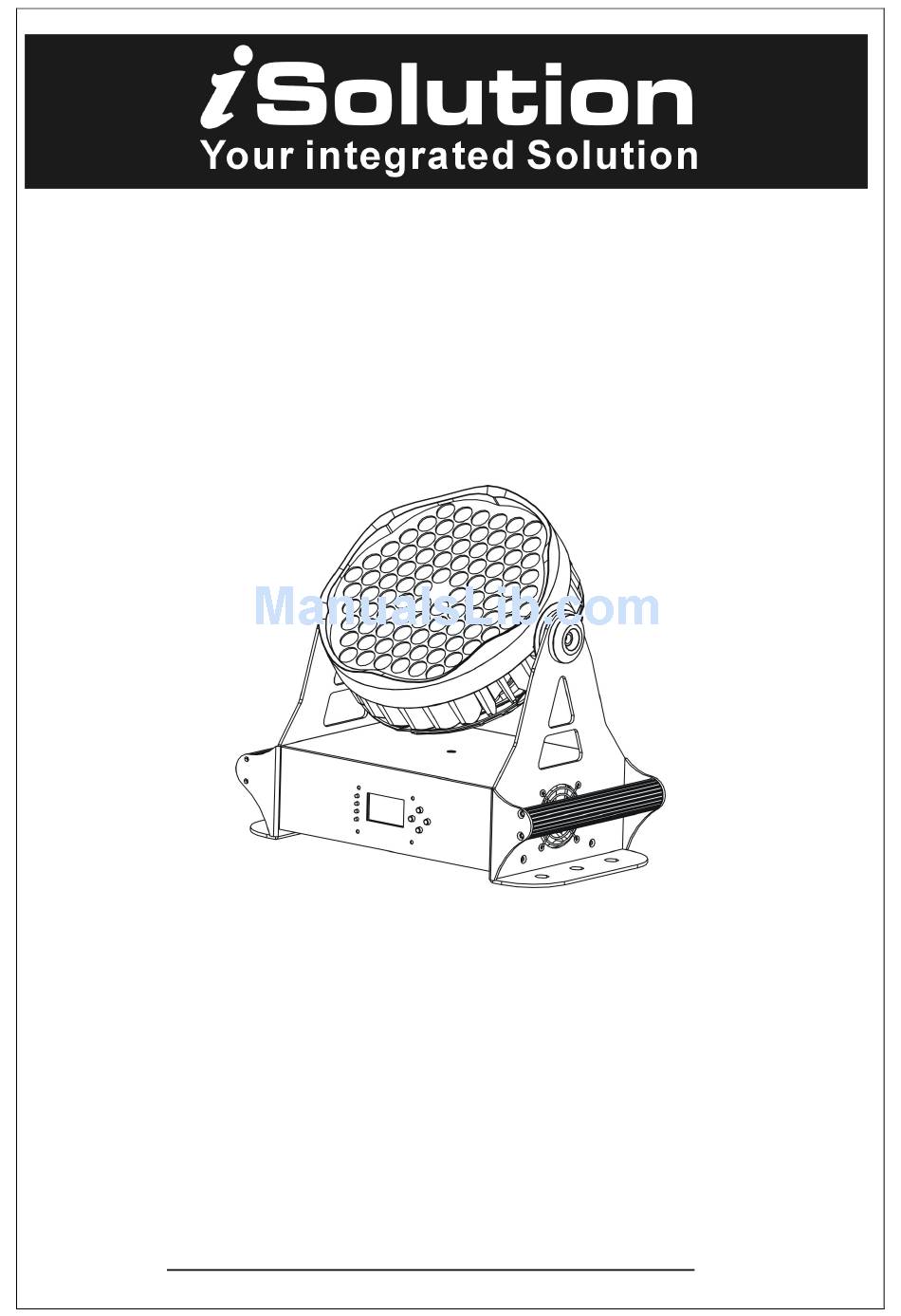

  • Page 1 Stage Wash SW-90 RGBW User Guide Please read these instructions carefully before use...

  • Page 2: Table Of Contents

    SW-90 RGBW CONTENTS 1. Safety Instruction ..................2 2. Technical Specification ................4 3. Change Beam Angle ................. 4 4. How To Set The Unit ................. 5 4.1 Control Panel ......................5 4.2 Power On Display ....................6 4.3 Main Function ......................6 5.

  • Page 3: Safety Instruction

    SW-90 RGBW 1. Safety Instruction Please read carefully the instruction, which includes important information about the installation, usage and maintenance. WARNING Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that they also receive this instruction booklet.
  • Page 4 SW-90 RGBW Avoid any inflammable liquids, water or metal objects entering the unit. Once it happen, cut off the mains power immediately. Do not operate in dirty and dusty environment, also cleaning fixtures regularly. Do not allow children to operate the fixture.

  • Page 5: Technical Specification

    SW-90 RGBW 2. Technical Specification DMX Channels: 4/5/7 channels Thermal sensor ensures the unit working at proper temperature Great built-in lighting shows under Master/Slave mode triggered by music The sound sensitivity can be adjust in the menu of LCD display...

  • Page 6: How To Set The Unit

    SW-90 RGBW 4. How To Set The Unit 4.1 Control Panel ○ 1 Display To show the various menus and the selected functions ○ 2 LED DMX input present MASTER Master Mode SLAVE Slave Mode SOUND Flashing Sound activation ○...

  • Page 7: Power On Display

    SW-90 RGBW 4.2 Power On Display Every time you turn on the unit, it will run built-in program to reset all motors to their home position, the display will show type and software version, you may hear some noises for about 20 seconds.
  • Page 8 SW-90 RGBW...
  • Page 9 SW-90 RGBW DMX Address Select DMX Address, press ENTER button to confirm, the present address will blinking on the display, use UP and DOWN button to adjust the address from 0 to 512, press ENTER button to store. Press MENU button back to the last menu or idling one minute to exit menu mode.
  • Page 10 SW-90 RGBW select Red or Green or Blue or White or Dimmer. Select Red, press ENTER button to confirm, use UP and DOWN button to adjust red brightness (0 -255), press ENTER button to confirm. Press MENU button back to the last menu or idling one minute to exit menu mode.
  • Page 11 SW-90 RGBW Sound State Select Sound State, press ENTER button to confirm, present state will blinking on the display, use UP and DOWN button to select on (sound control on) or off (sound control off), press ENTER button to store. Press MENU button back to the last menu or idling one minute to exit menu mode.
  • Page 12 SW-90 RGBW MENU button. Manual Test Select Manual Test, press ENTER button to confirm, pan will blinking on the display, use UP and DOWN button to select Pan or Tilt or Red or Green or Blue or White or Strobe or Dimmer.
  • Page 13 SW-90 RGBW Select Strobe, press ENTER button to confirm, use UP and DOWN button to adjust strobe speed (0 -255), press ENTER button to confirm. Press MENU button back to the last menu or idling one minute to exit menu mode.

  • Page 14: How To Control The Unit

    SW-90 RGBW 5. How To Control The Unit You can operate the unit in three ways: 1. By master/slave built-in preprogram function 2. By easy controller 3. By universal DMX controller 5.1 Master/Slave Built-in Preprogram Function Linking the units as the diagram, select show for the first unit (master) and set other units to slave1 or slave 2 via menu.

  • Page 15: Universal Dmx Controller

    SW-90 RGBW Stand By Blackout the unit 1. Sync. Strobe Select Color Address Dimmer Function 2. Async strobe User Color 1-10 0-255 3. Sound Strobe Mode Sound (LED OFF) LED On LED Slow blinking LED Fast blinking 5.3 Universal DMX Controller 5.3.1 Connection...

  • Page 16: Channel Mode Setting

    SW-90 RGBW when power is disconnected to the unit. 5. Each lighting unit needs to have an address set to receive the data sent by the controller. The address number is between 0-511 (usually 0 & 1 are equal to 1).

  • Page 17: Dmx 512 Configuration

    SW-90 RGBW 5.3.4 DMX 512 Configuration Please refer to below configurations to control the fixtures...

  • Page 18: Troubleshooting

    SW-90 RGBW 6. Troubleshooting Following are a few common problems that may occur during operation. Here are some suggestions for easy troubleshooting: A. The unit does not work, no light and the fan does not work 1. Check the connection of power and main fuse.
  • Page 19 SW-90 RGBW which the fixture operates: damp, smoky or particularly dirty surrounding can cause greater accumulation of dirt on the unit’s optics. Clean with soft cloth using normal glass cleaning fluid. Always dry the parts carefully. Clean the external optics at least every 20 days. Clean the internal optics at least every 30/60 days.
