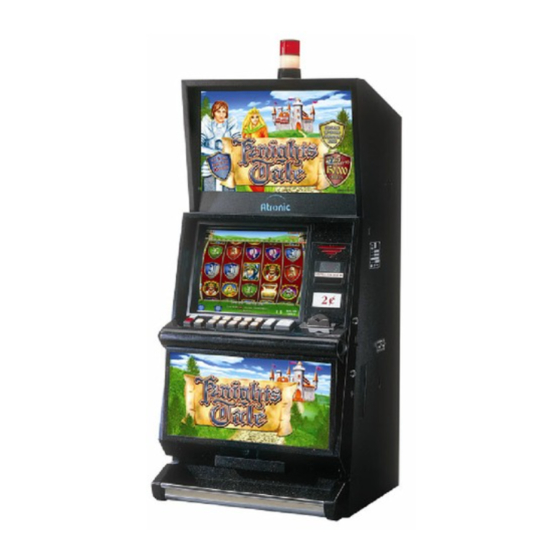

Slot machine, wide body cabinet
Hide thumbs Also See for Cashline:

Advertisement

Atronic Cashline™
Wide Body Cabinet (WBC)
Installation Manual
Rev. 2.4
www.atronic.com
February 2008

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Cashline and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Atronic Cashline

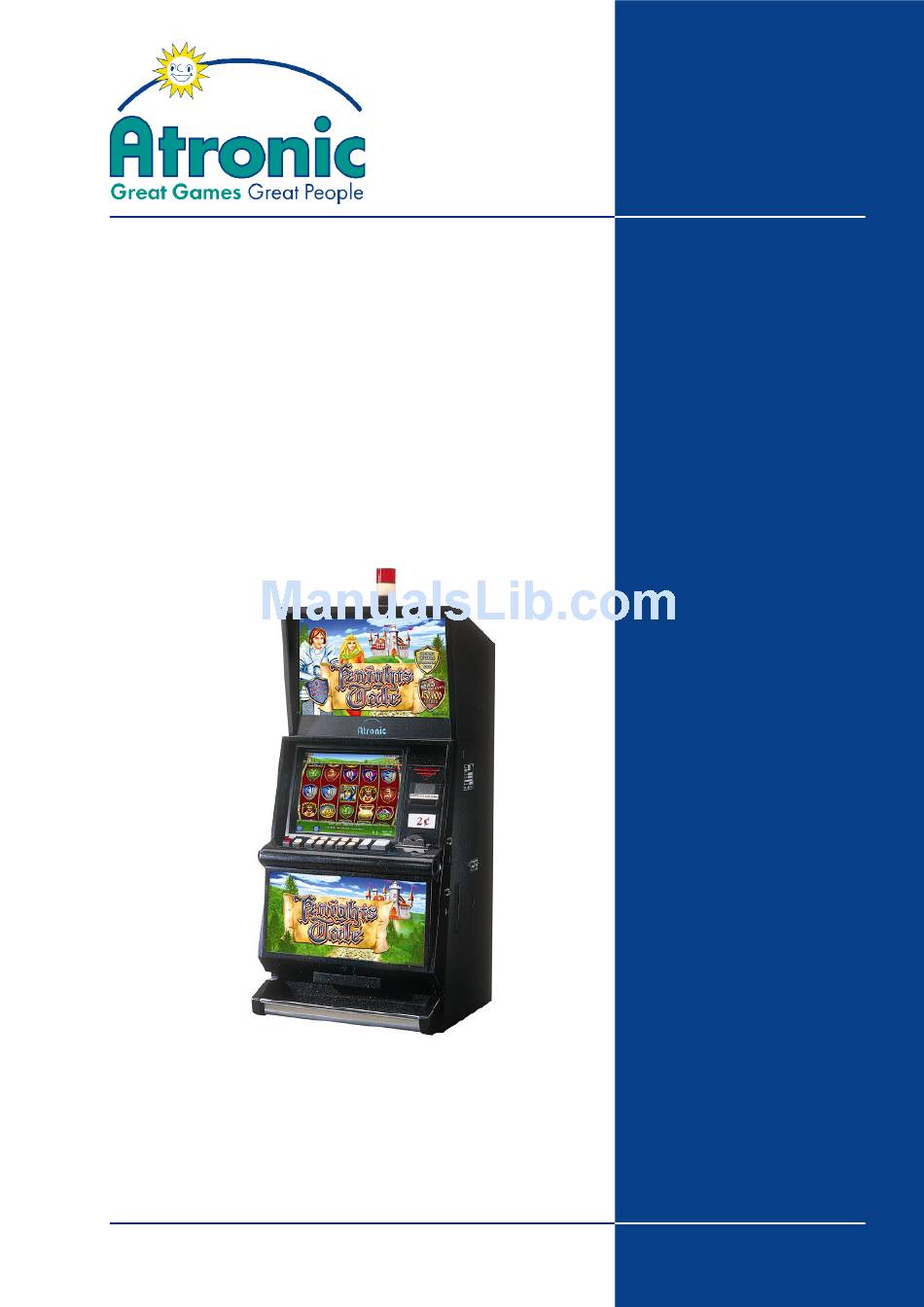

  • Page 1 Atronic Cashline™ Wide Body Cabinet (WBC) Installation Manual Rev. 2.4 www.atronic.com February 2008...
  • Page 2 DISCLAIMER Atronic makes no representation or warranties, express or implied, with respect to this publication, or any product of Atronic, including but not limited to warranties of merchantability or fitness for any particular purpose. Atronic reserves the right to make changes, enhancements, revisions and alterations of any kind to this publication or the product(s) it covers without obligation to notify any person, institution or organization of such changes, enhancements, revisions and alterations.
  • Page 3: Table Of Contents

    ONTENT Introduction About this Manual Scope, Target Audience, Included Software Releases ..Related Publications ........... Safety Instructions ............Machine Components ............Dimensions ..............Technical Data ..............Machine Installation Overview ................Machine Mounting ............Drilling Template ............... Install Toplight ..............Replace Shipping Locks .............
  • Page 4: Introduction

    ABOUT THIS MANUAL Scope This Installation Manual describes how to install an Atronic Cashline™ - Wide Body Cabinet (WBC) gaming machine. It describes how to mount the machine to a base stand and relevant procedures to be carried out before the machine can be put into operation.
  • Page 5: Related Publications

    Note: All mentioned manuals can be found on a CD- ROM titled "Atronic Service Manual 2008" If this manual did not came with this CD-ROM, please ask Atronic Technical Service for a free copy of the latest revision. February 2008...
  • Page 6 - blank page - February 2008...
  • Page 7: Safety Instructions

    AFETY NSTRUCTIONS SAFETY INSTRUCTIONS Follow the precautions below to en- sure safe operation. Caution! High Voltage The power cable must be disconnected from the main power socket, before the machine is free from electrical current. The main power switch is intended for service purposes only.
  • Page 8 Danger of explosion if battery is incorrectly repla- ced! Check for correct polarity and replace with the same or equivalent type only! • Please refer to the Atronic Service Manual CD for further instructions on service and maintenance. Additional Information...
  • Page 9 - blank page - February 2008...
  • Page 10: Machine Components

    ACHINE OMPONENTS MACHINE COMPONENTS Toplight Latch Bar Top Box Bill Door Key Button Board Bill Door Coin Validator Monitor Bill Validator Unit Bill Head Stacker Jackpot Key Audit Key Hardmeters Door Switch Power Switch Power Supply Backplane Main Door Lock Power Board Logic Door Lock Hopper Board...
  • Page 11 & S OCKS WITCHES LOCKS, KEYS AND SWITCHES Audit Key This key activates the Audit Menu and illuminates hardmeters. It also clears status and error messages. Jackpot Key Jackpot events and hand pay admin- istration are controlled by this key. It also controls remote credit func- tion (if applicable) .
  • Page 12: Dimensions

    IMENSIONS Cashline WBC Cabinet DIMENSIONS Weight: approx. 220 lbs. / 100 Kg (D1) see table Drawing shows WBC cabinet 18.5”/470 mm 21.7” / 550 mm with Square Top and 3 element 23.4” / 595 mm 23.9” / 606 mm candle.
  • Page 13: Technical Data

    ECHNICAL TECHNICAL DATA Electrical Specifications Required Voltage: 220V-240V, 2.0A, 50Hz Primary Voltage 100V-120V, 4.0A, 60Hz Power Consumption Idle mode: approx. 185W 1.60A / 115V, 0.8A / 230V Payout mode: approx. 200W 1.75A / 115V, 0.9A / 230V Power Supply Secondary Voltage: + 24V / 4A Secondary Voltage + 12V / 4A...
  • Page 14 - blank page - February 2008...
  • Page 15: Machine Installation Overview

    Hardware configuration and that Software EPROMs are correctly installed on the PCBs. Prepare the base by drilling the mounting holes. Use the Atronic drilling template for proper mounting hole placement. Place and mount the machine to the base. Run the power cable into the base. Do not connect power to the machine.
  • Page 16: Machine Mounting

    Prepare bases for machine mounting Prepare the base stand by drilling the mounting holes. Use the Atronic WBC Drilling Template for hole placement. Leave enough space between two machines. The main door should open without touching the next machine and the key switches should be easy to access.
  • Page 17: Drilling Template

    ACHINE NSTALLATION DRILLING TEMPLATE Make sure to leave min. 180mm (7.1") distance to the next machine or a wall on both sides of the cabinet. February 2008...
  • Page 18: Install Toplight

    • Reinstall the lighting reflector panel and connect its power cable. Replace shipping locks If not ordered otherwise, Atronic machines are equipped with shipping locks for easy commisioning. These locks have to be replaced by casino specific locks to provide appropriate security.
  • Page 19: Prepare Coin Acceptor

    ACHINE NSTALLATION MACHINE INSTALLATION Prepare Coin Comparitor CC16/MC16 • Slide the reference coin holder rightwards, remove the (plastic) transport token and replace it with an appropriate reference coin or casino token. • Fine tune the coin comparitor (if necessary) later when machine setup is completed.
  • Page 20: Check Commboard Settings

    ACHINE NSTALLATION MACHINE INSTALLATION Check Commboard Settings (optional) The commboard DIP switches and rotary switches configure SAS address, APL address, progressive mode and SAS (dual) channel allocation. Use the DIP switch tables within the Software Ma- nual for a particular software version (e.g. P-Level) to check or alter the commboard settings.
  • Page 21: Basic Setup (Overview Only)

    ACHINE NSTALLATION MACHINE INSTALLATION Configure game Configure game settings, which are accessible during normal operation. To access the Service Menu open the main door and press the Service button at front of the logic box. Service Menu has following options: •...
  • Page 22: Tests

    ESTS TESTS Test bill and coin handling Open maindoor and press service button at front of the logic box. The Service Menu is displayed. Then select Selftest. • Test coin handling. -> / Optoboard Test • Test coin diverter. -> / Coin Diverter Check Note: •...
  • Page 23: Technical Support Telephone Numbers

    UPPORT TECHNICAL SUPPORT TELEPHONE NUMBERS Atronic offers and provides technical support 24 hours a day, 7 days a week. If technical assistance is required during normal business hours, please contact your local technical services representative at one of the numbers below. If technical assistance is required outside of normal business hours, please contact one of the Atronic Technical Hotline numbers below.
