  • Page 1 Atronic Harmony™ Installation Manual Rev. 1.6 www.atronic.com June 2008...
  • Page 2 DISCLAIMER Atronic makes no representation or warranties, express or implied, with respect to this publication, or any product of Atronic, including but not limited to warranties of merchantability or fitness for any particular purpose. Atronic reserves the right to make changes, enhancements, revisions and alterations of any kind to this publication or the product(s) it covers without obligation to notify any person, institution or organization of such changes, enhancements, revisions and alterations.
  • Page 3: Table Of Contents

    ONTENT Introduction About this Manual Scope, Target Audience, Included Software Releases ..Related Publications ........... Safety Instructions ............Machine Components ............Dimensions ..............Technical Data ..............Machine Installation Overview ................Machine Mounting ............Drilling Template ............... Replace Shipping Locks ............. Prepare Coin Acceptor ............
  • Page 4: Introduction

    Target Audience We address qualified technical personnel, who are involved in installation, setup and configuration of Atronic gaming machines. With this user group we assume that they are basically familiar with gaming machines and casino related terminology. Please read this document and the contained safety notes carefully before you start machine installation.
  • Page 5: Related Publications

    Note: All mentioned manuals can be found on a CD- ROM titled "Atronic Service Manual 2008" If this manual did not came with this CD-ROM, please ask Atronic Technical Service for a free copy of the latest revision. June 2008...
  • Page 6 - blank page - June 2008...
  • Page 7: Safety Instructions

    The power switch is intended for service purposes only. Caution! Tipping Hazard The machine must be fastened to an appropriate base, to prevent tipping over. Use the Atronic Installation Station (AIS) for machine mounting. -> see also page 17-18. Caution! Moving Parts Make sure to disconnect the hopper, when working on it.
  • Page 8 • Electronic assemblies should only be changed with the power switched off. • Use only original Atronic parts for replacement. • Atronic commboard and mainboard Danger of explosion if battery is incorrectly repla- ced! Check for correct polarity and replace with the same or equivalent type only! •...
  • Page 9 - blank page - June 2008...

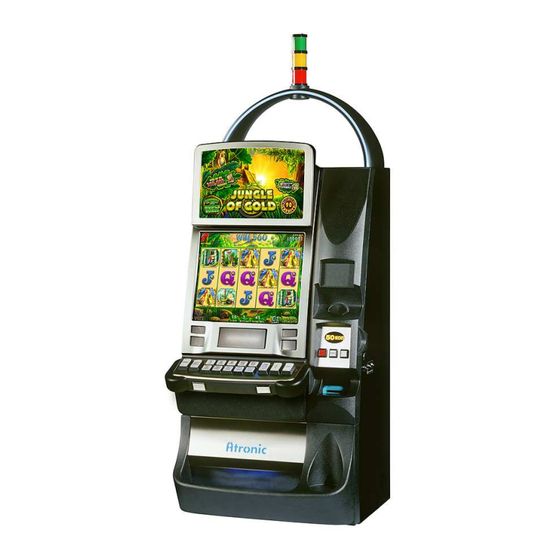

  • Page 10: Machine Components

    ACHINE OMPONENTS MACHINE COMPONENTS Toplight Arch Feature Box Online System Top Glass Module (optional) Mechanical Meters Voucher Printer (optional) Monitor Coin Entry Player Tracking Functional System (optional) Button Panel Loudspeakers Main Door Lock Button Panel Jackpot Key Switch Arm Rest Audit Key Switch Hopper Drawer Lock Front Buttons...
  • Page 11 ACHINE OMPONENTS MACHINE COMPONENTS Logicbox Mechanical Meters (Cover) Logicbox Door Logicbox Lock Monitor Reset Button Service Button Multimediaboard Button Board Cover Maindoor Switch Power Switch Coin Unit Optic Boards Power Supply Coin Acceptor Bill Acceptor - Head - Stacker Bill Door Switch - Cashbox Hopper Subwoofer Cabinet...
  • Page 12 ACHINE OMPONENTS MACHINE COMPONENTS Logic Box Logicbox Switch Backplane Release Lever for Commboard Multimediaboard Cover Mainboard DVD-ROM Drive Multimediaboard Graphic Card Multimediaboard (VP11) Cover June 2008...
  • Page 13: Dimensions

    IMENSIONS DIMENSIONS Harmony™ Upright (HAV) 542 mm / 21.3” 550 mm / 21.7” 580 mm / 22.8” Harmony™ Upright (HAV) with optional topper 360 mm / 14.2” 550 mm / 21.7” 542 mm / 21.3” 580 mm / 22.8” Inch values rounded to one decimal place.
  • Page 14: Technical Data

    ECHNICAL TECHNICAL DATA Weight: approx. 100 kg (220.5 lbs) Required Voltage: 100V to 240V AC, 50Hz / 60Hz, use earthed power outlet min. 6A / 115V, 3A / 230V Power Consumption: Idle Mode: approx. 160 Watt, 0.7A / 230V Payout Mode: approx. 230 Watt, 1A / 230V Max.
  • Page 15 - blank page - June 2008...
  • Page 16: Machine Installation Overview

    EPROMs are correctly installed. Prepare the base by drilling the mounting holes. Use the Atronic drilling template for proper mounting hole placement. Place and mount the machine to the base, using the Atronic Installation Station (see next page).
  • Page 17: Machine Mounting

    Station (AIS). The machine can tip over, if it is not properly mounted to a solid base. 1. Use the Atronic Installation Station (AIS) drilling template, supplied by Atronic, to mark the holes on the base before drilling. Make sure to leave min.
  • Page 18: Drilling Template

    ACHINE NSTALLATION DRILLING TEMPLATE 270.5 105.5 Backside Ø 10mm (drill 1 out of 3 for securing bolt) Ø 10mm Baseplate (AIS) Cabinet Footprint Make sure to leave min. 180mm (7.1") distance to the next machine or a wall on both sides of the cabinet. Do not cover the ventilation slots at the backside of the cabinet.
  • Page 19: Replace Shipping Locks

    Replace shipping locks Atronic machines are equipped with shipping locks for easy commisioning. These locks have to be replaced by casino specific locks to provide appropriate security.
  • Page 20: Prepare Coin Acceptor

    ACHINE NSTALLATION MACHINE INSTALLATION continued Prepare Coin Acceptor (MC-16) • Slide holder for reference coin rightwards, remove (plastic) transport chip and replace it with appro- priate reference coin. • Check reference coin for proper (parallel) seating. -> See manuals Peripherals / Coin Acceptor for details. Prepare Hopper The hopper high level switch detects the filling level of the hopper by the weight of the coins.
  • Page 21: Apply Power

    ACHINE NSTALLATION MACHINE INSTALLATION continued Apply Power • Punch out one of the perforated knock-out plates in order to provide access for the power cable (fi- gure a). • Mount the enclosed edge protection (figure b). • Check that the machine mains cable has not been damaged during transit.
  • Page 22: Basic Setup (Overview Only)

    Initial Setup menu. The Initial Setup al- lows to configure all basic machine setting. 4. Carry out (Progressive) Jackpot Configuration A PC or notebook with Atronic's Alink Config soft- ware is connected to the gaming machine and uploads the progressive jackpot configuration data.
  • Page 23: Tests

    ESTS TESTS Test bill and coin handling Open maindoor and press service button at front of the logic box. The Service Menu is displayed. Select file tab Diagnostics. • Test coin handling. -> / Coin Acceptor / Optics Test • Test coin diverter. ->...
  • Page 24: Technical Support Telephone Numbers

    UPPORT TECHNICAL SUPPORT TELEPHONE NUMBERS Atronic offers and provides technical support 24 hours a day, 7 days a week. If technical assistance is required during normal business hours, please contact your local technical services representative at one of the numbers below.
