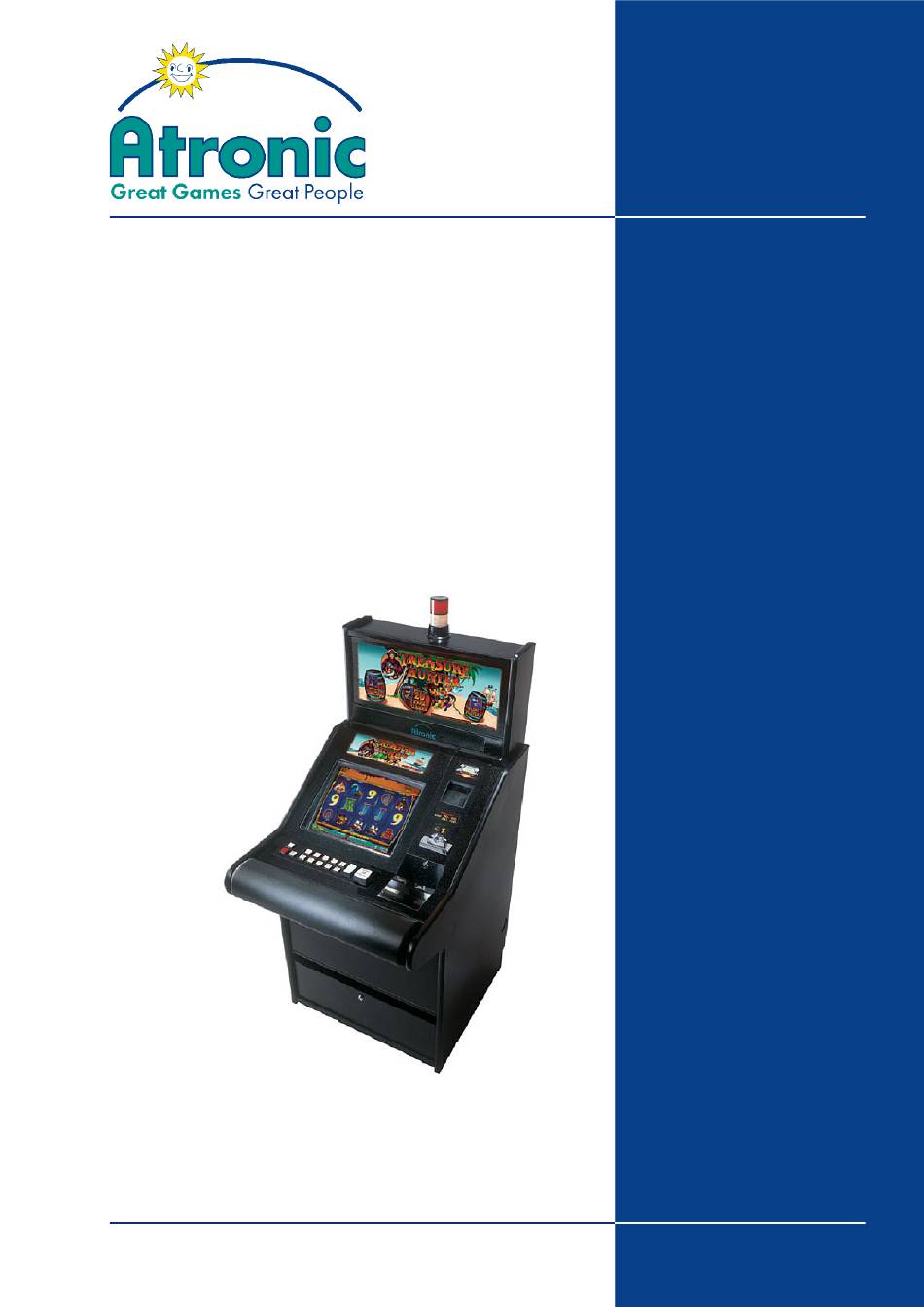

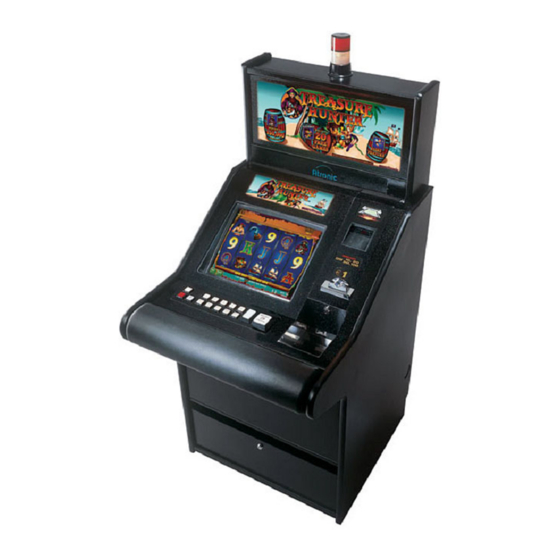

- Page 1 Atronic Cashline™ Slant Top (AST) Installation Manual Rev. 2.3 www.atronic.com February 2008...
- Page 2 This manual is intended to provide QUALIFIED TECHNICAL PERSONNEL ONL Y with the information necessary to routinely maintain, service, and repair the Atronic Cashline™ Slant Top (AST) cabinet and components. To avoid personal injury or damage to the equipment, do not perform any serviceing other than that contained in this manual.
-
Page 3: Table Of Contents
ONTENT Introduction About this Manual Scope, Target Audience, Included Software Releases ..Related Publications ........... Safety Instructions ............Machine Components ............Dimensions ..............Technical Data ..............Machine Installation Overview ................Inspection ................ Mount Toplight ..............Replace Shipping Locks ............. Prepare Coin Acceptor ............Prepare Hopper .............. -
Page 4: Introduction
ABOUT THIS MANUAL Scope This Installation Manual describes how to install an Atronic Cashline™ Slant Top (AST) gaming machine. It describes relevant procedures to be carried out before the machine can be put into operation. Further it contains important safety instructions, technical data and cabinet drawings. -
Page 5: Related Publications
NTRODUCTION ABOUT THIS MANUAL Related Publications More detailed information about Atronic Cashline™ Slant Top (AST) gaming machines may be found in the following publications: Software Manuals • Software Manual / O-Level • Software Manual / O-Level (Multidenom) • Software Manual / P-Level Operation Manuals •... - Page 6 - blank page - February 2008...
-
Page 7: Safety Instructions
AFETY NSTRUCTIONS SAFETY INSTRUCTIONS Follow the safety precautions below to ensure safe operation. Caution! High Voltage The power cable must be disconnected from the main power socket, before the machine is free from electrical current. The main power switch is intended for service purposes only. - Page 8 Danger of explosion if battery is incorrectly repla- ced! Check for correct polarity and replace with the same or equivalent type only! • Please refer to the Atronic Service Manual CD for further instructions on service and maintenance. Additional Information...
- Page 9 - blank page - February 2008...
-
Page 10: Machine Components
ACHINE OMPONENTS MACHINE COMPONENTS Hardmeters Audit Key Jackpot Key Bill Door Lock Coin Bowl Upper Main Door Coin Validator Top Box w. - Toplight - Top Box Lock Bill Door Button Board Bill Door Switch Monitor Bill Validator Unit w. - Bill Head - Stacker Power Switch... - Page 11 & S OCKS WITCHES Top Box Lock LOCKS, KEYS AND SWITCHES Opens the top box. Bill Door Lock Top Box Lock Unlocking the bill door to remove validator and stacker without unlocking the main door. Audit Key This key activates the Audit Menu and illuminates hardmeters.
-
Page 12: Dimensions
IMENSIONS DIMENSIONS Cabinet "AST Cashline" 160mm / 6.3” Weight: approx 100 Kg / 220 lbs. 628mm / 24.7” Height: 1582 mm / 62.3" Width: 670 mm / 26.4" Depth: 850 mm / 33.5" 630mm / 24.8” 670mm / 26.4” 850mm / 33.5” Cabinet "AST Cashline"... -
Page 13: Technical Data
ECHNICAL TECHNICAL DATA Electrical Specifications Required Voltage: 220V-240V, 2.0A, 50Hz Primary Voltage 100V-120V, 4.0A, 60Hz Power Consumption Idle mode: approx. 185W 1.60A / 115V, 0.8A / 230V Payout mode: approx. 200W 1.75A / 115V, 0.9A / 230V Power Supply Secondary Voltage: + 24V / 4A Secondary Voltage + 12V / 4A... - Page 14 - blank page - February 2008...
-
Page 15: Machine Installation Overview
ACHINE NSTALLATION MACHINE INSTALLATION - OVERVIEW This section should only be carried out by Qualified Technical Service Personnel. Note: Review the list below and perform as needed. Depending machine Explanations are located on the following pages and in configuration and/or additional manuals. -
Page 16: Inspection
• Fix the toplight with four screws. • Connect the toplight Molex connector. Replace shipping locks Atronic machines are equipped with shipping locks for easy commisioning. These locks have to be replaced by casino specific locks to provide appropriate security. -
Page 17: Prepare Coin Acceptor
ACHINE NSTALLATION MACHINE INSTALLATION Prepare Coin Comparitor CC16/MC16 • Slide reference coin holder rightwards, remove the (plastic) transport token and replace it with an appropriate reference coin or casino token. • Fine tune the coin comparitor (if necessary) later when machine setup is completed. Quick guide for fine tuning: •... -
Page 18: Check Commboard Settings
ACHINE NSTALLATION MACHINE INSTALLATION Check DIP-Switch settings DIP switch settings are pre-set during production as specified in the order. It might be necessary to change DIP settings to meet all casino requirements. Use the DIP switch tables within manual "Software" to check or alter DIP settings of masterboard and commboard (optional). -
Page 19: Basic Setup (Overview Only)
ACHINE NSTALLATION MACHINE INSTALLATION Configure game Configure game settings, which are accessible during normal operation. To access the Service Menu open the main door and press the Service button at front of the logic box. Service Menu has following options: •... -
Page 20: Tests
ESTS TESTS Test bill and coin handling Open the main door and press the Service button at front of the logic box. The Service Menu is displayed. Then select Selftest. • Test coin handling. -> / Optoboard Test • Test coin diverter. ->... -
Page 21: Technical Support Telephone Numbers
UPPORT TECHNICAL SUPPORT TELEPHONE NUMBERS Atronic offers and provides technical support 24 hours a day, 7 days a week. If technical assistance is required during normal business hours, please contact your local technical services representative at one of the numbers below. If technical assistance is required outside of normal business hours, please contact one of the Atronic Technical Hotline numbers below.
