Atronic Harmony™ Slant Top
Installation Manual
Rev. 1.4
www.atronic.com
June 2008

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Harmony Slant Top and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Atronic Harmony Slant Top

  • Page 1 Atronic Harmony™ Slant Top Installation Manual Rev. 1.4 www.atronic.com June 2008...
  • Page 2 Atronic makes no representation or warranties, express or implied, with respect to this publication, or any product of Atronic, including but not limited to warranties of merchantability or fitness for any particular purpose. Atronic reserves the right to make changes, enhancements, revisions and alterations of any kind to this publication or the product(s) it covers without obligation to notify any person, institution or organization of such changes, enhancements, revisions and alterations.
  • Page 3: Table Of Contents

    ONTENT Introduction About this Manual Scope, Target Audience, Included Software Releases ..Related Publications ........... Safety Instructions ............Machine Components ............Dimensions ..............Technical Data ..............Machine Installation Overview ................Inspection ................ Positioning ................ Mount Toplight ..............Replace Shipping Locks .............
  • Page 4: Introduction

    Target Audience We address qualified technical personnel, who are involved in installation, setup and configuration of Atronic gaming machines. With this user group we assume that they are basically familiar with gaming machines and casino related terminology. Please read this document and the contained safety notes carefully before you start machine installation.
  • Page 5: Related Publications

    Note: All mentioned manuals can be found on a CD- ROM titled "Atronic Service Manual 2008" If this manual did not came with this CD-ROM, please ask Atronic Technical Service for a free copy of the latest revision. June 2008...
  • Page 6 - blank page - June 2008...
  • Page 7: Safety Instructions

    AFETY NSTRUCTIONS SAFETY INSTRUCTIONS Note! This installation module of the Harmony™Slant Top includes only information relating to the installation of the slant top cabinet. For other machine or cabinet types please refer to the relevant manuals. Follow the safety precautions below and on the next page, to ensure safe operation.
  • Page 8 • Electronic assemblies should only be changed with the power switched off. • Use only original Atronic parts for replacement. • Atronic commboard and mainboard Danger of explosion if battery is incorrectly repla- ced! Check for correct polarity and replace with the same or equivalent type only! •...
  • Page 9 - blank page - June 2008...
  • Page 10: Machine Components

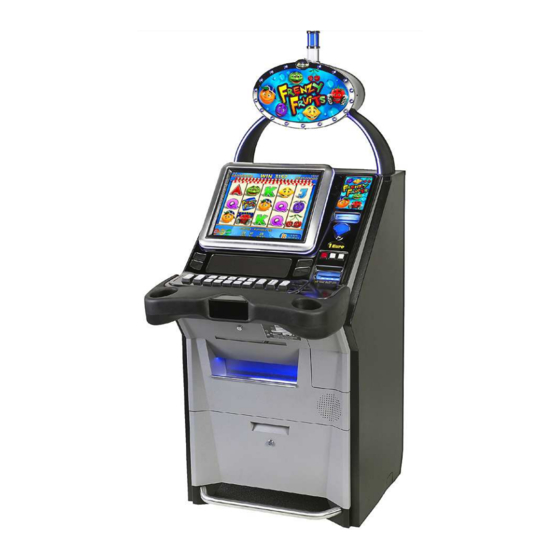

    ACHINE OMPONENTS MACHINE COMPONENTS Toplight Topper Arch Monitor Deck Glass Online System Ticket Printer (optional) Module (optional) Loudspeakers Coin Entry Button Panel Functional Button Panel Cup Holder Bill Entry / Bill Decal Arm Rest Card Reader (optional) Audit Key Switch Jackpot Key Switch Bill Door Bill Door Lock...
  • Page 11 ACHINE OMPONENTS MACHINE COMPONENTS Audit Key Switch Jackpot Key Switch Buttonboard Logicbox Ticket Printer (optional) Logicbox Lock Service Button Coin Geometry Reset Button Coin Unit Filterboard Power Coin Acceptor Bill Acceptor Multimediaboard Cover Coin Optics Maindoor Switch Hopper Drawer Switch Cashbox (Stackerbox) Power Switch Power Outlets...
  • Page 12 ACHINE OMPONENTS MACHINE COMPONENTS Logic Box Logicbox Switch Backplane Release Lever for Commboard Multimediaboard Cover Mainboard DVD-ROM Drive Multimediaboard Graphic Card Multimediaboard (VP11) Cover June 2008...
  • Page 13: Dimensions

    IMENSIONS DIMENSIONS 880mm / 34.6” 670mm / 26.4” 993mm / 39.1” Inch values rounded to one decimal place. June 2008...
  • Page 14: Technical Data

    ECHNICAL TECHNICAL DATA Weight: approx. 125 kg (258 lbs) Required Voltage: 100V to 240V AC, 50Hz / 60Hz, use earthed power outlet min. 6A / 115V, 3A / 230V Power Consumption: Idle Mode: approx. 160 Watt, 0.7A / 230V Payout Mode: approx. 230 Watt, 1A / 230V Max.
  • Page 15 - blank page - June 2008...
  • Page 16: Machine Installation Overview

    ACHINE NSTALLATION MACHINE INSTALLATION OVERVIEW This section should only be carried out by qualified technical service personnel. Note: Review the list below and perform as needed. Depending machine Explanations are located on the following pages and configuration and jurisdictional in additional manuals. requirements, additional tasks may have to be carried out Inspect machines for transport damage.
  • Page 17: Inspection

    Hold here lower ring, when you screw it into the topper bayonet catch. Replace shipping locks Atronic machines are equipped with shipping locks for easy commisioning. These locks have to be replaced by casino specific locks to provide appropriate security.
  • Page 18: Prepare Coin Acceptor

    ACHINE NSTALLATION MACHINE INSTALLATION Prepare Coin Acceptor (MC-16) • Slide holder for reference coin rightwards, remove (plastic) transport chip and replace it with appro- priate reference coin. • Check reference coin for proper (parallel) seating. Prepare Hopper The hopper high level switch detects the filling level of the hopper by the weight of the coins.
  • Page 19: Apply Power

    ACHINE NSTALLATION MACHINE INSTALLATION Apply Power • Punch out one of the perforated knock-out plates in order to provide access for the power cable (fi- gure a). • Mount the enclosed edge protection (figure b). • Check that the machine mains cable has not been damaged during transit.
  • Page 20 - blank page - June 2008...
  • Page 21: Basic Setup (Overview Only)

    Initial Setup menu. The Initial Setup al- lows to configure all basic machine setting. 4. Carry out (Progressive) Jackpot Configuration A PC or notebook with Atronic's Alink Config soft- ware is connected to the gaming machine and uploads the progressive jackpot configuration data.
  • Page 22: Tests

    ESTS TESTS Test bill and coin handling Open maindoor and press service button at front of the logic box. The Service Menu is displayed. Select file tab Diagnostics. • Test coin handling. -> / Coin Acceptor / Optics Test • Test coin diverter. ->...
  • Page 23: Technical Support Telephone Numbers

    UPPORT TECHNICAL SUPPORT TELEPHONE NUMBERS Atronic offers and provides technical support 24 hours a day, 7 days a week. If technical assistance is required during normal business hours, please contact your local technical services representative at one of the numbers below.
