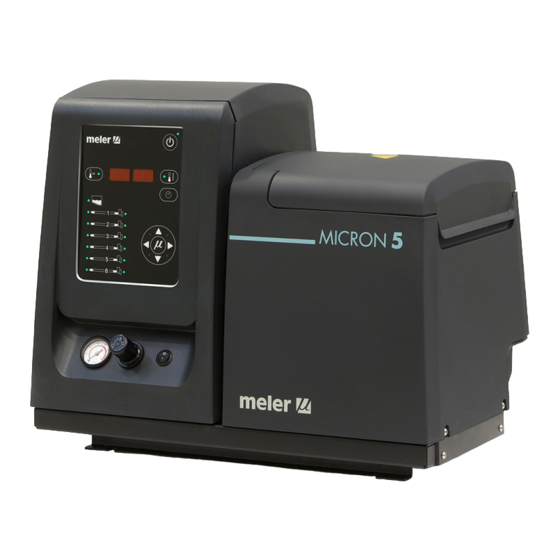

Meler micron 5 Quick Start Manual

QUICK START GUIDE: MICRON PUMP SERIES
Warning: Risk of electrical shock. Carelessness may produce injury or death.
Warning: Hot zone with high temperatures. Risk of burns. Use thermal
protective equipment.
Warning: System under pressure. Risk of burns or particle projection. Use
thermal protective equipment and googles.
Warning: Important information for the correct use of the system. May include
one or several of the previous hazards, and therefore must be kept in mind to
avoid damage and injury.
Warning: The melters/applicators are equipment with current technology and with certain
foreseeable risks. Therefore, only allow qualified personnel with sufficient training and experience
to use, install or repair this equipment.
In case of doubts in the moment of installation, refer to the corresponding instructions manual.
Meler Gluing Solutions, S.A
P.I. Los Agustinos, calle G, nave D-43
E - 31160 ORCOYEN Navarra (España)
Tel.: + 34 948 351 110
GLUING SOLUTIONS
Fax: + 34 948 351 130
e-mail: info@meler.es
www.meler.eu

Mounting the equipment

M8
M8
M8

Components and accessories

Adaptation plate

Electrical power connection

MODEL
micron 5
micron 10
micron 20
micron 35
M8
MICRON 5, 10, 20
MICRON 20, 35
Fitting straight short
Hose
Automatic
feeder
230V 1~ 50 Hz + N + PE
400V 3~ 50 Hz + N + PE
No. OUTPUT 1 FHASE 3 FHASES
230 VAC Δ
2 20.87 A 13.73 A
4 31.30 A 18.45 A
6 41.74 A 27.49 A
2 25.22 A 17.86 A
4 35.65 A 21.91 A
6 46.09 A 27.49 A
2 27.39 A 19.96 A
4 37.83 A 23.89 A
6 48.26 A 28.24 A
2 33.91 A 24.55 A
4 44.35 A 29.35 A
6 54.78 A 37.27 A
1

Dimensions/Free space

Warning light
VP system
B
ITEM DESCRIPTION
A EQUIPMENT LENGTH
B EQUIPMENT WIDTH
C EQUIPMENT HEIGHT
Low level
detector
D EQUIPMENT HEIGHT WITH LID OPEN
Electrical power connection
400 VAC Y
10.00 A
10.87 A
16.09 A
14.35 A
14.35 A
16.09 A
16.52 A
16.52 A
16.52 A
16.09 A
21.30 A
26.52 A
2
Ø6-12mm
A
DIMENSIONS
5L 588 mm
10L 671 mm
20L 671 mm
35L 742 mm
5L 339 mm
10L 339 mm
20L 383 mm
35L 435 mm
5L 481 mm
10L 481 mm
20L 526 mm
35L 673 mm
5L 628 mm
10L 760 mm
20L 875 mm
35L 1067 mm
3
R S T N
R S T N
T N PE F1 F2 F3 N PE
230V 1~ 50 Hz + N + PE 400V 3~ 50 Hz + N + PE
