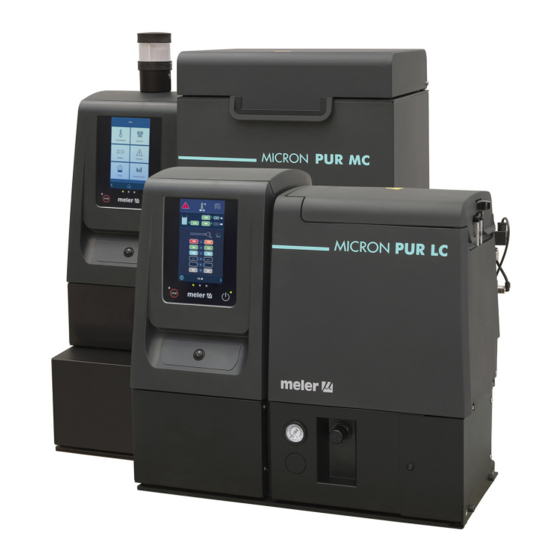

Meler Micron PUR LC Quick Start Manual

QUICK START GUIDE: MICRON PUR
Warning: Risk of electrical shock. Carelessness may produce injury or death.
Warning: Hot zone with high temperatures. Risk of burns. Use thermal
protective equipment.
Warning: System under pressure. Risk of burns or particle projection. Use
thermal protective equipment and googles.
Warning: Important information for the correct use of the system. May include
one or several of the previous hazards, and therefore must be kept in mind to
avoid damage and injury.
Warning: The Micron PUR melters are equipment with current technology and with certain
foreseeable risks. Therefore, only allow qualified personnel with sufficient training and
experience to use, install or repair this equipment.
In case of doubts in the moment of installation, refer to the corresponding instructions
manual.
If you want this guide in other language, see the website:
http://www.meler.eu
Meler Gluing Solutions, S.A
P.I. Los Agustinos, calle G, nave D-43
E - 31160 ORCOYEN Navarra (España)
Tel.: + 34 948 351 110
GLUING SOLUTIONS
Fax: + 34 948 351 130
e-mail: info@meler.eu
MA-5097-ENG V0915
www.meler.eu

Electrical power connection

LN ~ 230V 50 Hz + PE
3N ~ 400/230V 50 Hz + PE
MODEL No. OUTPUT 1 PHASE
230 VAC
1 PUMP 2 PUMPS 1 PUMP
Micron PUR LC 2 25.39 A 31.21 A 12.89 A
4 35.83 A 41.64 A 12.89 A
6 46.26 A - 17.28 A
Micron PUR MC 2 39.43 A 44.25 A 16.52 A
4 48.86 A 54.69 A 21.74 A
6 59.30 A - 26.96 A
1
Components, options and accessories
Fitting straight short
Air dryer system
Low level detector
Electrical power connection
3 PHASES
400 VAC Y
2 PUMPS
16.70 A
21.91 A
-
16.70 A
21.91 A
L3 N PE
-
LN ~ 230V 50 Hz + PE
Ø6-12mm
2

Dimensions/ Free space

Hose
Warning light
By-pass valve
ITEM
A EQUIPMENT LENGTH
B EQUIPMENT WIDTH
C EQUIPMENT HEIGHT
D EQUIPMENT HEIGHT WITH LID OPEN
Wheels
E EQUIPMENT LENGTH WITH ELECTRICAL CABINET OPEN
LENGTH OF THE EQUIPMENT WITH BRACKET FOR
ELECTRIC CABINET VARIABLE FREQUENCY DRIVES IN
3 LOWERED POSITION
Nota: To calculate the space necessary to install the equipment in terms of its length, you must
add at least 280 mm to the measurements indicated in the table in order to be able to open the
distributor's purger access door.

Mounting the equipment

L1 L2 L3 N PE
3N ~ 400/230V 50 Hz + PE
M8

Pneumatic and hose connection

A
E
6 x
DESCRIPTION DIMENSION
LC 730mm
MC 740mm
LC 420mm
MC 520mm
LC 630mm
MC 870mm
LC 910mm
MC 1215mm
LC 920mm

Air dryer connection

MC 990mm
LC 1280mm
MC 1355mm
ITEM MICRON LC MICRON MC
A 96 mm 96 mm
B 377,5 mm 529,5
C 569,5 mm 721,5 mm
D 75 mm 75 mm

Charge of adhesive

E 328,5 mm 422,5 mm
Micron PUR LC
F 15 mm 15 mm
G 13 mm 13 mm
Outer lid
M8
G
13
Ø9
A B
96 462,5
C
654,5
1
P= 0 bar
2
P = 6 bar
max
Ø6mm
3
3
9/16"
1 3 5
4
2 4 6
P = 6 bar
max
Ø6mm
Micron PUR MC
Outer lid
2
1
3
Air-tight lid
Air-tight lid
1
2
3
