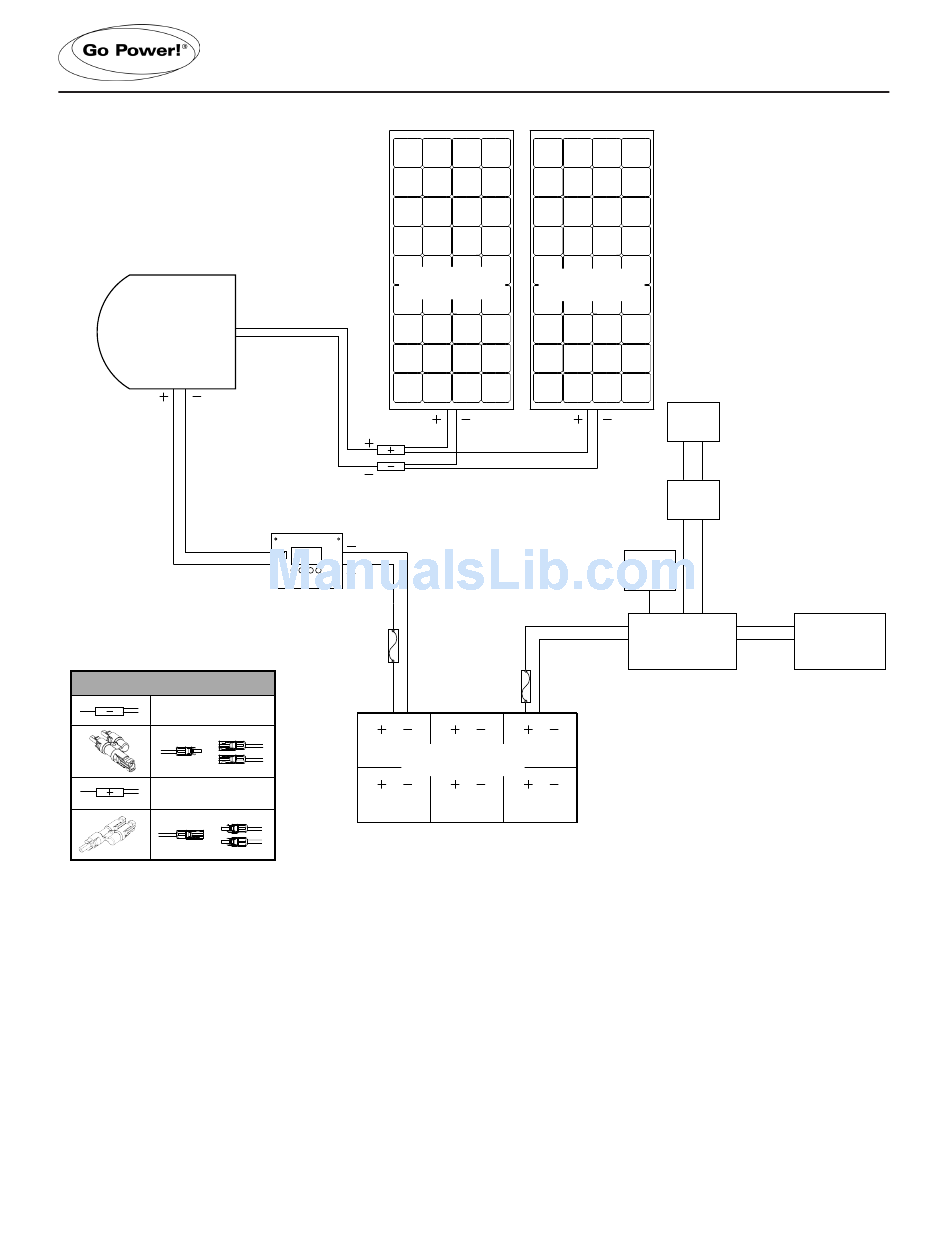

SOLAR ELITE SYSTEM DIAGRAM
Refrigerator
Vent Cover
or Cable Entry Plate
MC4 Red Postive
MC4 Black Negative
Extension Cable (25 ft)
Extension Cable (25 ft)
Legend
MC4 Expansion
Connector - Negative
MC4 Expansion
Connector - Postive
170W
Solar Panel
PWM 30
Solar Charge
Controller
Fuse
Battery Bank
SYSTEM DIAGRAMS
170W
Solar Panel
Inverter
Remote
Inverter Charger
GP DC Kit 4
Fuse
Charger and 50A
Transfer Switch)
Refer to the GP-IC-Series
manual for more information.
AC
Loads
AC
Panel
2000W
Shore Power
/ Generator
(with built-in
100A Battery
gpelectric.com | [page 25]
