SYSTEM DIAGRAMS

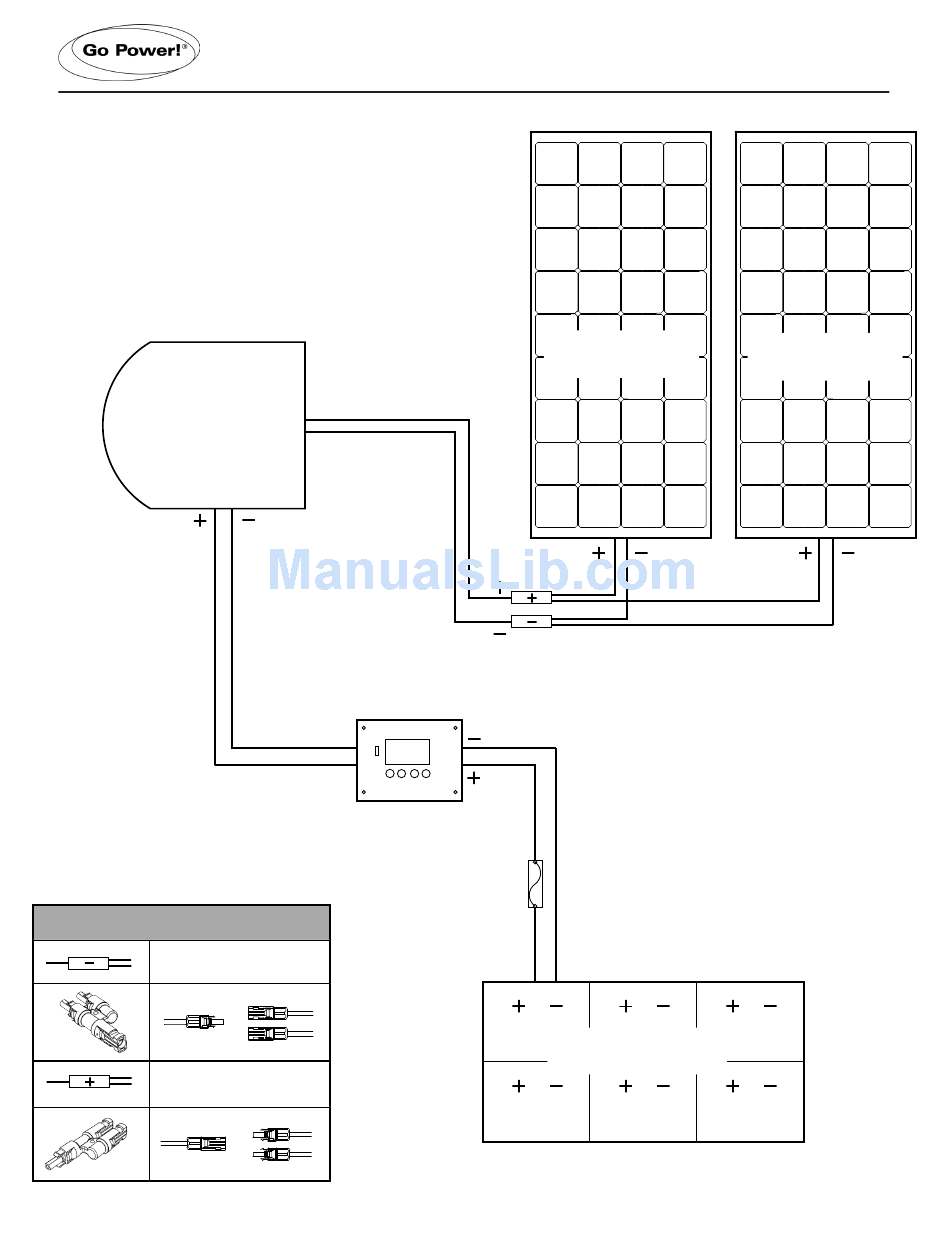

RETREAT E SYSTEM DIAGRAM
100W
100W
Solar Panel
Solar Panel
Refrigerator
Vent Cover
or Cable Entry Plate
MC4 Red Postive
MC4 Black Negative
Extension Cable (25 ft)
Extension Cable (25 ft)
PWM 30
Solar Charge
Controller
30A Fuse
Legend
MC4 Expansion
Connector - Negative
Battery Bank
MC4 Expansion
Connector - Postive
gpelectric.com | [page 21]
