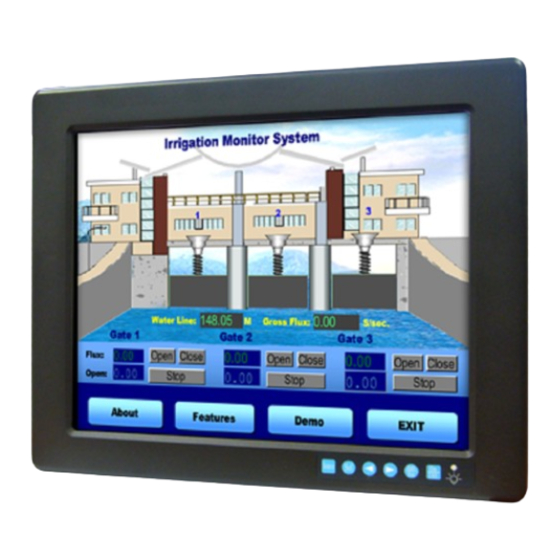

FPM-3121 Series
Flat Panel Monitor with
12.1" Color TFT/LCD Display

User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FPM-3121 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Advantech FPM-3121 Series

Summary of Contents for Advantech FPM-3121 Series

  • Page 1: User Manual

    FPM-3121 Series Flat Panel Monitor with 12.1" Color TFT/LCD Display User Manual...

  • Page 2: Copyright Notice

    Copyright Notice This document is copyrighted by Advantech Co., Ltd. All rights are reserved. Advantech Co., Ltd. reserves the right to make improvements to the products described in this manual at any time. Specifications are thus subject to change without notice.
  • Page 3 Product Warranty (2 year) Advantech warrants to you, the original purchaser, that each of its prod- ucts will be free from defects in materials and workmanship for one year from the date of purchase. This warranty does not apply to any products which have been repaired or...
  • Page 4 FCC Class B This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interfer- ence when the equipment is operated in a residential environment.
  • Page 5 If any of these items are missing or damaged, contact your distributor or sales representative immediately. Additional Information and Assistance 1. Visit the Advantech web site at www.advantech.com where you can find the latest information about the product. 2. Contact your distributor, sales representative, or Advantech's cus- tomer service center for technical support if you need additional assis- tance.
  • Page 6 3. Disconnect this equipment from any AC outlet before cleaning. Use a damp cloth. Do not use liquid or spray detergents for cleaning. 4. For plug-in equipment, the power outlet socket must be located near the equipment and must be easily accessible. 5.
  • Page 7 DISCLAIMER: This set of instructions is given according to IEC 704-1. Advantech disclaims all responsibility for the accuracy of any statements contained herein. Wichtige Sicherheishinweise 1. Bitte lesen sie Sich diese Hinweise sorgfältig durch. 2. Heben Sie diese Anleitung für den späteren Gebrauch auf.
  • Page 8 IEC-704-1 erstellt. Advantech lehnt jegliche Verantwortung für die Richtigkeit der in diesem Zusammenhang getätigten Aussagen ab. DISCLAIMER: This set of instructions is given according to IEC704-1. Advantech disclaims all responsibility for the accuracy of any statements contained herein. FPM-3121G Series User Manual...

  • Page 9: Table Of Contents

    Contents Chapter 1 Introduction ............. 2 Introduction ............... 2 Specifications ..............2 LCD Specifications ............3 Power Adapter Specifications ........... 4 Connectors................. 4 Dimensions................ 6 Figure 1.1:FPM-3121G-UA Chassis Dimensions ..6 Chapter 2 System Setup............ 8 Mounting FPM-3121G-UA Series ........8 2.1.1 Wall Mounting ...............
  • Page 10 FPM-3121G Series User Manual...
  • Page 11 Introduction This chapter includes: • Introduction • Specifications • LCD Specification • Power Consumption • Connectors • Dimensions...

  • Page 12: Chapter 1 Introduction

    Products in the FPM-3121G Series can also be provided in touch versions (FPM-3121G-R) With an 5-wire resistive type touchscreen, this monitor can be immediately transformed into a re mote control system. The Advantech FPM-3121G series is the ultimate HMI solution for your industrial applications. 1.2 Specifications General •...

  • Page 13: Lcd Specifications

    • Dimensions (W x H x D): 312 x 244 x 60 mm • Panel Mount Cut out Dimension (WxH): 301.5x227.5 mm • Weight: 3.0 kg (6.6 lb) • Vibration (operating): 5 ~ 500 Hz, Random, 1 Grms • CE, FCC, BSMI, CCC certified •...

  • Page 14: Power Adapter Specifications

    1.4 Power Adapter Specifications • Max Output Power: 42 W • AC input voltage: 100 - 240 V AC • Output voltage: + 12 V @ 3.5 A • Safety Standards: UL/CE/CCC/TUV/CB 1.5 Connectors The following connectors are on the bottom of the FPM-3121G Series: VGA Port (DB15) This DB-15 connector can be connected to the system via the external 15-pin DB-15 connector locatd on the left side of the system unit.
  • Page 15 Warning: Before you connect a VGA cable between the monitor and a PC, please note the following issues. 1. If you have installed a operating system in the PC, make sure the ver- tical frequency is within the acceptable range. (Refer to Appendix B) 2.

  • Page 16: Dimensions

    1.6 Dimensions Figure 1.1: FPM-3121G Dimensions FPM-3121G Series User Manual...
  • Page 17 System Setup • Mounting the Monitor • Wall / Panel Mounting • Desktop / Swing-Arm Mounting...

  • Page 18: Chapter 2 System Setup

    Chapter 2 System Setup 2.1 Mounting FP M-3121G Series Monitors in the FPM-3121G series can be flexibly mounted. The versatil- ity of the FPM-3121G series mounts enable them to be mounted on your desk or almost anywhere else. 2.1.1 Wall Mounting Please refer to figure 2.1 and follow the steps below to install FPM- 3121G series on a wall.

  • Page 19: Panel Mounting

    2.1.2 Panel Mounting Refer to figure 2.2 and follow the instructions below to install in a panel. Insert the FPM-3121G series’ into the cutout hole of the panel. (The dimensions of the cutout is 303.5 x 229.5 mm ) Place eight panel-mounting brackets on FPM-3121G series’ (2 on the top, 2 on the bottom, 2 on the left, and 2 on the right).

  • Page 20: Desktop, Swing-Arm For Fpm-3121G-Ua Series

    2.2 Desktop, Swing-ARM for FPM-3121G Series The FPM-3121G series’ monitors can also be mounted in other ways. You can use the desktop stand for desktop use or attach it on a swing-arm bracket. 2.2.1 Desktop Stand Refer to figure 2.4. The desktop stand bracket is attached to the rear of FPM-3121G series’.

  • Page 21: Vesa Arm Mounting

    FPM-3121G series has been designed with support for the VESA arm standard. Refer to figure 2.5. Figure 2.5: Swing-ARM: FPM-3121G series 2.2.3 Power Adapter Chapter 2...
  • Page 22 The power adapter bracket can be attached to the rear of FPM-3121G series. Attach the bracket at the rear side of the monitor by screwing the four screws. The DC terminal of the AC/DC adapter can be locked on the rear case by the DC in Power Cord bracket.
  • Page 23 Display Timing Mode and OSD...

  • Page 24: Appendix A Display Timing Mode & Osd

    Appendix A Display Timing Mode & OSD A.1 Supported Input Timing Modes The different frequencies below are already programmed in this module, and the synchronous signal inputs are automatically recognized. Table A.1: Supported Input Formats Vertical Frequencies Resolution 56 Hz 60 Hz 70 Hz 72 Hz...

  • Page 25: Keypad Interface

    A.2 Keypad Interface AUTO Press this button to execute auto-adjustment process. Press to show the OSD screen or select an item to change its setting. Press to move between items or increase/decrease item set- ting. Press both buttons simultanously to lock/unlock the current settings.

  • Page 26: Osd Function

    A.4 OSD Function Each selected value is stored into LCD memory after SEL signal input or time out. The stored values are not affected if the power is turned off. But the selected value is not available in case a selected mode is changed before time out or power is turned off before time out.
  • Page 27 Touchscreen This appendix contains information on the touchscreen, its installation and configuration.

  • Page 28: B.1 Introduction

    Appendix B Touchscreen B.1 Introduction The FPM-3121G Series’ optional touchscreen uses advanced 5-wire resistive technology. It provides more accurate sensing capacity than other technologies. The touchscreen is specially designed for tough industrial environments, and has been approved to FCC Class B stan- dards.

  • Page 29: Installing Driver For Windows 2000/Xp

    Optical • Visible light transmission: 75% typical (>74% @ 550 nm test) • Clarity: Clear Finish - 25%, Antiglare Finish - 15% Sensor board • Chemical strengthened glass with 4 H hardness standard. (Test condition: ASTM D3363-92A) Ball drop test •...
  • Page 30 Before installing the Windows 2000/XP driver software, you must have the Windows 2000/XP system installed and running on your computer. If you have an older version of the PenMount Windows 2000/XP driver installed in your system, please remove it first. Follow the steps below to install the PenMount Windows 2000/XP driver.
  • Page 31 The screen displays the installation wizard for the PenMount soft- ware. Click “Next”. Appendix B...
  • Page 32 A License Agreement appears. Click “I accept…” and “Next” The “Ready to Install the Program” screen appears. Select “Install.” FPM-3121G Series User Manual...
  • Page 33 The next screen is “Hardware Installation.” Select “Continue Any- way.” The “InstallShield Wizard Completed” appears. Click “Finish.” Appendix B...

  • Page 34: Configuring Penmount Windows 2000/Xp Driver

    B.4 Configuring PenMount Windows 2000/XP Driver Upon rebooting, the computer automatically finds the new 9000 control- ler board. The touch screen is connected but not calibrated. Follow the procedures below to carry out calibration. After installation, click the PenMount Monitor icon “PM” in the menu bar.
  • Page 35 NOTE: The older the touch screen, the more Advanced Mode calibration points you need for an accurate calibration. Use a stylus during Advanced Calibration for greater accuracy. Appendix B...
  • Page 36 FPM-3121G Series User Manual...
  • Page 37 Plot Check this function and a touch panel linearity com- Calibration parison graph appears when you have finished Data Advanced Calibration. The blue lines show linearity before calibration and black lines show linearity after calibration. Appendix B...
  • Page 38 Draw Tests or demonstrates the PenMount touch screen operation. The display shows touch location. Click Draw to start. Touch the screen with your finger or a stylus and the drawing screen registers touch activity such left, right, up, down, pen up, and pen down. Touch the screen with your finger or a stylus and the drawing screen reg- isters touch activity such left, right, up, down, pen up, and pen down.
  • Page 39 Multiple Monitors Multiple Monitors supports from two to six touch screen displays for one system. The PenMount drivers for Windows 2000/XP support Multiple Monitors. This function supports from two to six touch screen displays for one system. Each monitor requires its own PenMount touch screen control board, either installed inside the display or in a central unit.
  • Page 40 When the mapping screen message appears, click OK. Touch each screen as it displays “Please touch this monitor.” Fol- lowing this sequence and touching each screen is called mapping the touch screens. FPM-3121G Series User Manual...
  • Page 41 Touching all screens completes the mapping and the desktop reap- pears on the monitors. Select a display and execute the ‘Calibration’ function. A message to start calibration appears. Click OK. “Touch this screen to start its calibration” appears on one of the screens.
  • Page 42 NOTE: 1. If you used a single VGA output for multiple monitors, please do not use the Multiple Monitors function. Just follow the regular procedure for calibration on each of your desktop monitors. 2. The Rotating function is disabled if you use the Multiple Monitors function.
  • Page 43 About This panel displays information about the PenMount controller and driver version. Appendix B...

  • Page 44: Penmount Monitor Menu Icon

    B.4.2 PenMount Monitor Menu Icon The PenMount monitor icon (PM) appears in the menu bar of Windows 2000/XP system when you turn on PenMount Monitor in PenMount Util- ities. PenMount Monitor has the following functions. Beep Turns beep on or off. Right When you select this function, a mouse Button...

  • Page 45: Penmount Rotating Functions

    B.4.3 PenMount Rotating Functions The PenMount driver for Windows 2000/XP supports several display rotating software packages. Please see Chapter 5 for more information. The PenMount drivers for Windows 95, Windows 98/Me, Windows 2000/XP, as well as Windows 98 USB and Windows Me/2000/XP sup- port display rotating software packages such as: •...

  • Page 46: Uninstall The Penmount Windows 2000/Xp Driver

    B.5 Uninstall the PenMount Windows 2000/XP driver Exit the PenMount monitor (PM) in the menu bar. Go to Settings, then Control Panel, and then click Add/Remove program. Select PenMount DMC9000 and click the Add/Remove button. Select PenMount DMC9000 and DMC9100. Click the Remove button.
