Summary of Contents for ATEN VE601

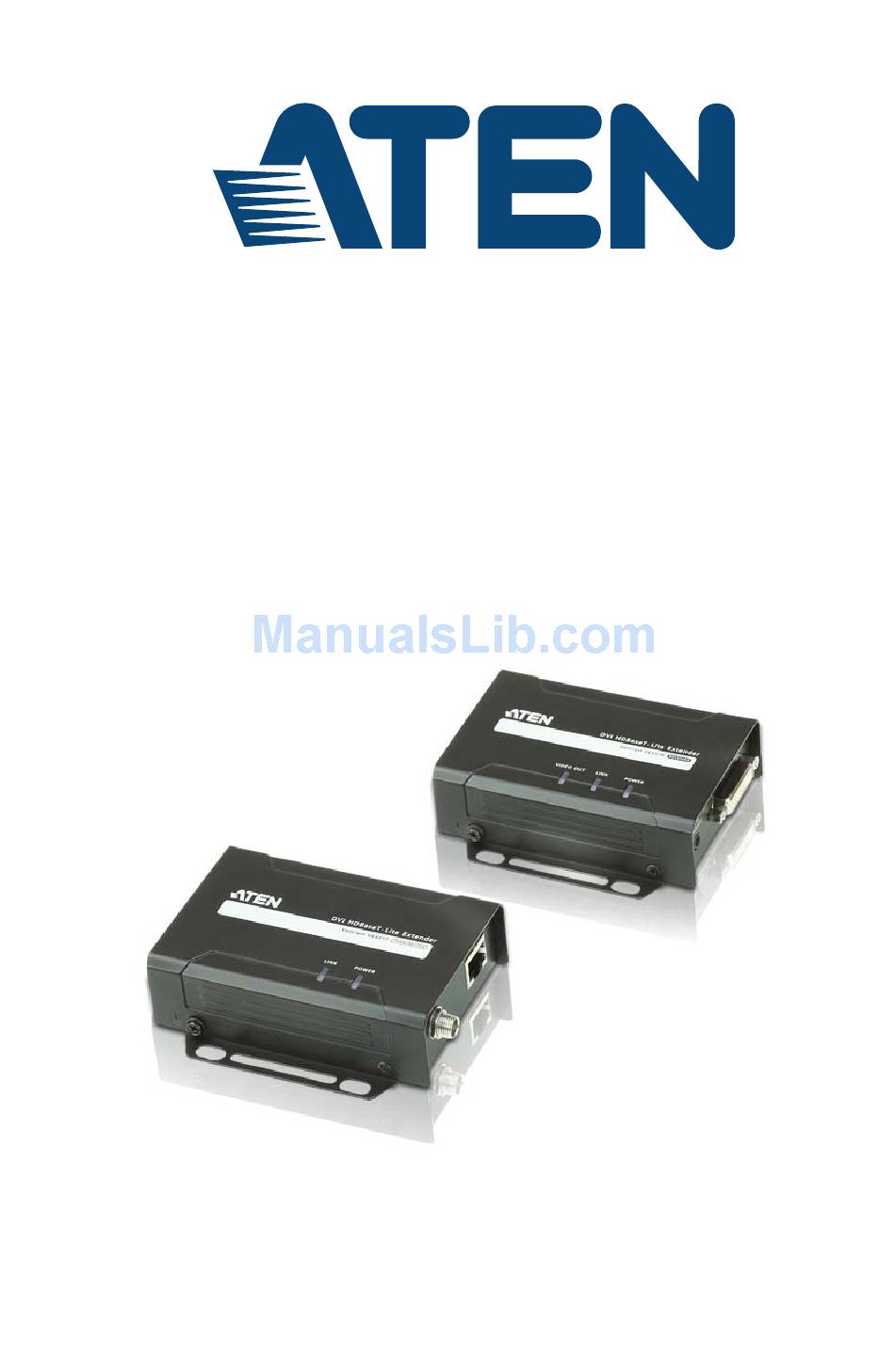

- Page 1 DVI HDBaseT-Lite Extender with POH VE601 User Manual www.aten.com...
-
Page 2: Emc Information
VE601 User Manual EMC Information FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. -
Page 3: User Information
VE601 User Manual User Information Online Registration Be sure to register your product at our online support center: International http://eservice.aten.com Telephone Support For telephone support, call this number: International 886-2-8692-6959 China 86-10-5255-0110 Japan 81-3-5615-5811 Korea 82-2-467-6789 North America 1-888-999-ATEN ext 4988... -
Page 4: Package Contents
© Copyright 2015 ATEN® International Co., Ltd. Manual Date: 2015-10-30 ATEN and the ATEN logo are registered trademarks of ATEN International Co., Ltd. All rights reserved. All other brand names and trademarks are the registered property of their respective owners. -
Page 5: Table Of Contents
Package Contents......... . . iv VE601 Package Contents ........iv VE601T Package Contents . -
Page 6: About This Manual
An overview of the information found in the manual is provided below. Chapter 1, Introduction, introduces you to the VE601 system. Its purpose, features and benefits are presented, and its front and back panel components are described. -
Page 7: Conventions
For information about all ATEN products and how they can help you connect without limits, visit ATEN on the Web or contact an ATEN Authorized Reseller. Visit ATEN on the Web for a list of locations and telephone numbers: International http://www.aten.com... -
Page 8: Chapter 1 Introduction

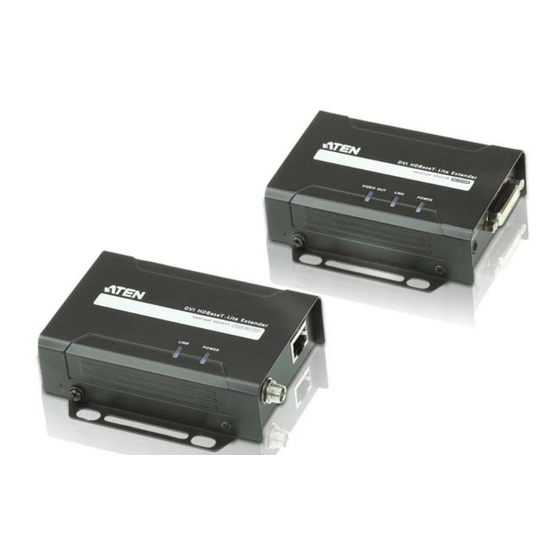

The VE601 DVI HDBaseT-Lite Extender is able to extend a DVI 1080p display up to 70 m using a Cat 5e/6 cable. This combination of ATEN and HDBaseT technology even supports sharing 1920 x 1200 media up to 40 m away, offering a simple, adaptable, and cost-effective solution for any professional A/V installation. -
Page 9: Features
Chapter 1. Introduction Features HDBaseT Connectivity – extends a DVI connection up to 70 meters via a single Cat 5e/6 cable Superior Video Quality – Support up to 1080p/60@36bits and 3D HDMI signals up to 70m over Cat 6a cable Wide Screen Formats Supported –... -
Page 10: Requirements
VE601 User Manual Requirements Display An DVI display capable of the highest required resolution Source Device The following equipment is required: A source device with an DVI port Cables Cat 5e cable is required to connect the Transmitter and Receiver units. -
Page 11: Components
VE601T. RS-232 Port You can connect the RS-232 main controller to the VE601, such as the PC or Control system. DVI Input Port Connect the DVI Input Port on the VE601T to the DVI Output Port on the video source device using an DVI cable. - Page 12 Connect an IR Receiver to the IR port on the VE601R. RS-232 Port You can connect RS-232 serial devices/ peripherals to the VE601, such as touchscreens and bar code scanners. DVI Output Port Connect the DVI display to this port.
- Page 13 Chapter 1. Introduction This Page Intentionally Left Blank...
-
Page 14: Chapter 2. Hardware Setup
Keyboard Power On function. Setting Up Setting up the VE601 HDBaseT-Lite Extender system is simply a matter of plugging in the cables. Make sure that all the equipment to be connected are powered off, then refer to the installation diagram on the next page and do the following: 1. -
Page 15: Installation Diagram
Chapter 2. Hardware Setup Installation Diagram VE601R(R) VE601R(F) VE601T(R) VE802T VE601T(F) -
Page 16: Rs-232 Channel Transmission
VE601 User Manual RS-232 Channel Transmission You can connect RS-232 serial devices/peripherals to the VE601, such as touchscreens and bar code scanners. The RS-232 signal transmission flow is shown in the following example: From a source device, the RS-232 signal is transmitted (Tx) to the VE601T receiving (Rx) unit;... - Page 17 Chapter 2. Hardware Setup This Page Intentionally Left Blank...
-
Page 18: Chapter 3 Operation
Chapter 3 Operation LED Display The VE802 Transmitter and Receiver units have front panel LEDs to indicate their operating status, as shown in the tables, following: VE802T (Transmitter) and VE601R (Receiver) Indication Power (Green) Lights to indicate that the system is receiving power. Link (Orange) Light is static to indicate that the connection to the Transmitter and Receiver units are ok. - Page 19 Chapter 3. Operation This Page Intentionally Left Blank...
-
Page 20: Appendix
Appendix Safety Instructions General Read all of these instructions. Save them for future reference. Follow all warnings and instructions marked on the device. This product is for indoor use only. Do not place the device on any unstable surface (cart, stand, table, etc.). If the device falls, serious damage will result. - Page 21 Appendix If an extension cord is used with this device make sure that the total of the ampere ratings of all products used on this cord does not exceed the extension cord ampere rating. Make sure that the total of all products plugged into the wall outlet does not exceed 15 amperes.
-
Page 22: Technical Support
VE802 User Manual Technical Support International For online technical support – including troubleshooting, documentation, and software updates: http://eservice.aten.com For telephone support, Telephone Support, page iii North America Email Support support@aten-usa.com Online Troubleshooting http://www.aten-usa.com/support Technical Documentation Support Software Updates Telephone Support... -
Page 23: Specifications
Appendix Specifications Function VE601 Video Input Interface 1 x DVI Type A Female (Black) Impedance 100Ω Max distance 1.8m Video Output Interface 1 x DVI Type A Female (Black) Impedance 100Ω Video Max. data rate 10.2Gbps (3.4Gbps per lane) Max. pixel clock... -
Page 24: Limited Warranty
VE802 User Manual Limited Warranty IN NO EVENT SHALL THE DIRECT VENDOR'S LIABILITY EXCEED THE PRICE PAID FOR THE PRODUCT FROM DIRECT, INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THE PRODUCT, DISK, OR ITS DOCUMENTATION. The direct vendor makes no warranty or representation, expressed, implied, or statutory with respect to the contents or use of this documentation, and especially disclaims its quality, performance, merchantability, or fitness for any particular purpose.
