RIGOL
How to Connect Probe or BNC

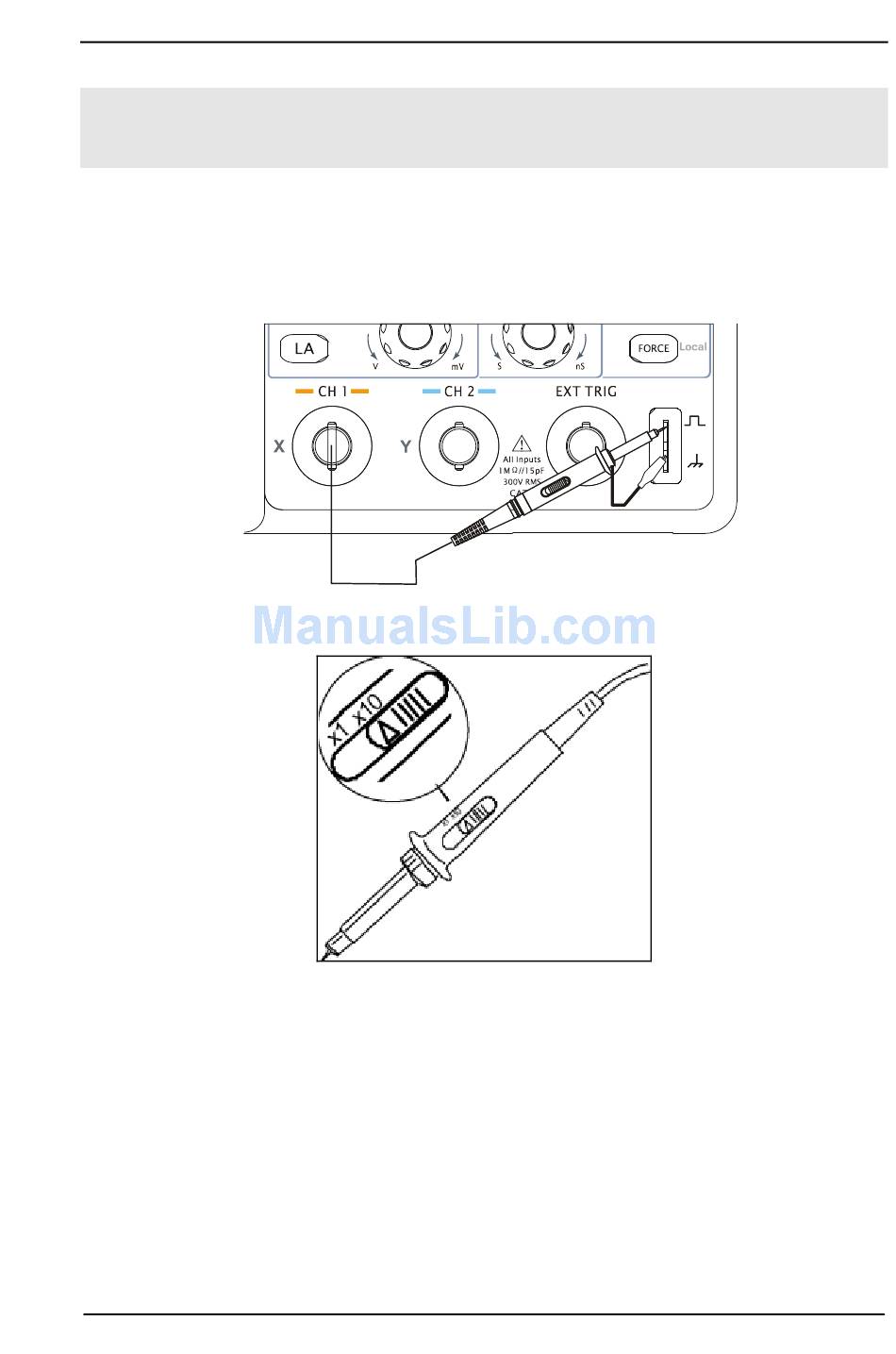

1． Connect the probe
As shown in the above figures, set the attenuation switch on the
probe to 10X and connect the probe to Channel 1 on the
oscilloscope, push and rotate clockwise to lock the probe in place.
If your probe is a new one, or it is the first time you connect to the
oscilloscope, before use it, please do the following compensation
operation:
Quick Guide for DS1000E, DS1000D Series
3
