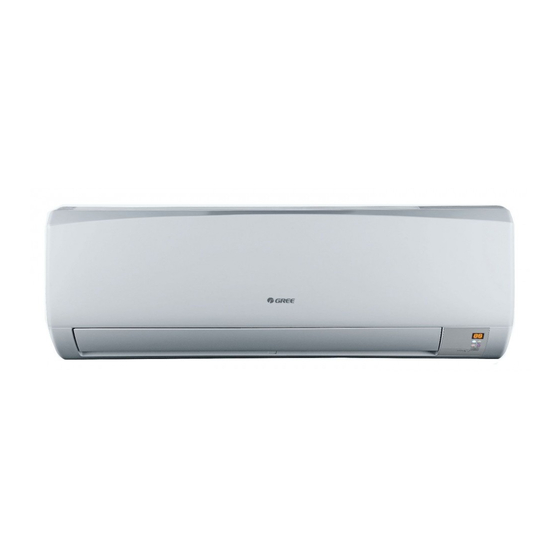

Gree GWC09KF-K3DNA5A Owner's Manual
Residential air conditioners
Hide thumbs
Also See for GWC09KF-K3DNA5A:
- Service manual (75 pages) ,
- Service manual (50 pages) ,
- Service manual (88 pages)
Subscribe to Our Youtube Channel
Related Manuals for Gree GWC09KF-K3DNA5A
Summary of Contents for Gree GWC09KF-K3DNA5A
- Page 1 Change for Life Split Air Conditioner Owner's Manual Residential Air Conditioners Thank you for choosing Residential Air Conditioners, please read this owner’s manual carefully before operation and retain it for future reference.
- Page 2 GWH09KF-K3DNA6B GWC09KF-K3DNA5A GWH09KF-K3DNA5A GWC09KF-K3DNA5D GWH09KF-K3DNA9A GWC09KF-K3DNA6A GWH09KF-K3DNA6A GWH09KF-K3DNA5B GWH09KF-K3DNB1A GWH09KF-K3DNA7A GWC09KF-K3DNA7A GWC09KF-D3DNA7A GWC09KF-K3DNA9A GWH09KF-K3DNB3A GWH09KF-K3DNB2A GWC09KF-K3DNB2A GWH12KF-K3DNB2A GWH12KF-K3DNA7A GWH12KF-K3DNA5A GWH12KF-K3DNA9A GWC12KF-K3DNA5A GWC12KF-K3DNA5D GWC12KF-K3DNA6A GWH12KF-K3DNA5B GWH12KF-K3DNA6A GWH12KF-K3DNB1A GWH12KF-K3DNA6B GWC12KF-D3DNA7A GWC12KF-K3DNA7A GWC12KF-K3DNA9A GWH12KF-K3DNB3A GWC12KF-K3DNB2A GWH12KF-K3DNB1B...
-
Page 3: Table Of Contents
CONTENTS Operation and maintenance ............. 1 ■ Notices for operation ..............3 ■ Notices for use ........... 5 ■ Names and functions of each part ........6 ■ Operation of wireless remote control ............11 ■ Emergency operation ■ ..............12 Clean and care .............. -
Page 4: Operation And Maintenance Notices For Operation
Operation and maintenance-notices for operation ★ ★ Earth: The ground Be sure to pull out the power ★ Select the most appropriate tem- be connected! plug when not using the air co- perature. nditioner for a long time. Keep room cool - er than outside about 5 degree. -
Page 5: Notices For Operation
Notices for operation ★ The airflow direction can be adjusted appro- ★ If the supply cord is damaged, it must be replaced priately. At operating, adjust the vertical airflow by the manufacturer or its service agent or a direction by adjusting the louvers of upward/do- similarly qualified person in order to avoid a wnward direction. -
Page 6: Notices For Use
Notices for use Working principle and special functions for cooling Principle: Air conditioner absorbs heat in the room and transmit to outdoor and discharged, so that indoor ambient temperature decreased, its cooling capacity will increase or decrease by outdoor ambient temperature. Anti-freezing function: If the unit is running in COOL mode and in low temperature, there will be frost formed on the heat exchanger, when indoor heat exchanger temperature decreased below 0... -
Page 7: Working Temperature Range
Notices for use Working temperature range Indoor sideDB/WB( Outdoor sideDB/WB( Maximum cooling 32/23 48/--- 21/15 Minimum cooling 10/-- Maximum heating 27/--- 24/18 Minimum heating 20/--- -15/-- The operating temperature range (outdoor temperature) for cooling unit is 21℃ ~ 43℃； for cooling and heating unit is -5℃ ~ 43℃. -
Page 8: Names And Functions Of Each Part
Names and functions of each part Indoor unit Air in ⑴ ⑶ ⑺ ⑹ ⑸ Air out ⑷ ⑵ Power cable ⑴ SET TEMP ⑵ Remote control Wireless remote control Cool Front panel ⑶ Heat ⑷ Filter ⑸ Guide louver Receive window ON/OFF Wall pipe... -
Page 9: Operation Of Wireless Remote Control
Operation of wireless remote control Names and functions of remote control buttons Note: Be sure that there are no obstructions between receiver and remote control; Don't drop or throw the remote control; Don't let any liquid in the remote control and put the remote control directly under the sunlight or any place where is very hot. -
Page 10: Timer Button
Operation of wireless remote control Names and functions of remote control buttons NOTE: This Remote control is universal, it c o uld be used formany units, some buttons of this control which are not availabl e to this unit will not be described below. TIMER AUTO Timer button... - Page 11 Operation of wireless remote control Names and functions of remote control buttons NOTE: This remote control is universal, it could be used formany units, some buttons of this control which are not available to this unit will not be described below. X-FAN X-FAN button Set X-FAN on (the characters of X-FAN will...
- Page 12 Operation of wireless remote control Guide for operation-general operation 1. Press ON/OFF button to start the unit after powering the main unit on. (Note: Power the unit on every time, the big -guide louver and small-guide louver will be ON/OFF MODE closed firstly.
-
Page 13: About New Function Of Defrosting
Operation of wireless remote control ¡ï About AUTO RUN When AUTO RUN mode is selected, the setting temperature will not be displayed on the LCD, the unit will be in accordance with the room temp. automatically to select the suitable running method and to make ambient comfortable. -
Page 14: Emergency Operation
Emergency operation Displayer indicator light control of indoor unit It's a special selective button for the users ,who are not accustomed to the light at sleeping. ¡ñ Get the displayer indicator light on: When setting the light function,the mark will display on the remote controller screen by pressing this button. -
Page 15: Clean And Care
Clean and care Caution Turn power off and pull out the power plug before cleaning air conditioner, or it may cause electric ● ● shock. Never sprinkle water on the indoor unit and the outdoor unit for cleaning because it can cause an ●... - Page 16 Clean and care Check before use ① Be sure that nothing obstructs the air outlet and intake vents. ② Check that whether ground wire is properly connected or not. ③ Check that whether the batteries of air conditioner are changed or not. ④...
-
Page 17: Troubleshooting
Troubleshooting CAUTION Don't attempt to repair the air conditioner by yourself, it can cause an electric shock or fire. Please check the following items before asking for repair, it can save your time and money. Phenomenon Troubleshooting Not operate immediately when the air Once the air conditioner is stopped, it will ●... - Page 18 Troubleshooting Phenomenon Troubleshooting Has the power been shut down? ● The unit can not run. Is power plug loosed? ● Is the circuit protection device tripped off or not? ● Is voltage higher or lower? ● (Tested by professionals) Breaking off Is the TIMER correctly used? ●...
- Page 19 Troubleshooting Phenomenon Troubleshooting Indoor unit cannot deliver air. In HEAT mode, when the temperature of indoor ● heat exchanger is very low, that will stop deliver air in order to prevent cool air. (Within 2min) In HEAT mode, when the outdoor temperature ●...
-
Page 20: Notices For Installation
Notices for installation Important Notices The unit installation work must be done by qualified personnel according to the local rules and this manual. Before installation, please contact with local authorized maintenance center, if unit is not installed by the authorized maintenance center, the malfunction may not solved, due to discommodious contacts. - Page 21 Notices for installation Safety Requirements For Electric Appliances 1. The power supply should be used the rated voltage and AC exclusive circuit, the power cable diameter should be satisfied. 2. Don't drag the power cable emphatically. It should be reliably earthed, and it should be connected to the special earth device, the installation work should be operated by the professional.
-
Page 22: Installation Dimension Diagram
Installation dimension diagram Installation dimension diagram Space to the ceiling Above Space to the wall Above Above Space to the wall Above Above Air outlet side Space to the floor The dimensions of the space necessary for correct ● installation of the appliance including the minimum permissible distances to adjacent structures Space to the obstruction Space to the obstruction... -
Page 23: Install Indoor Unit
Install indoor unit Install the rear panel 1. Always mount the rear panel horizontally. Due to the water tray of indoor unit has been adopted the both-way drainage design, the outlet of water tray should be adjusted slightly down when installing, that is taking the outlet of the water tray as the center of a circle, the included angle between the evaporator and level should be 0 or more, that is good for condensing water drainage. -
Page 24: Install The Indoor Unit
Install indoor unit NOTE: When connecting the electric wire if the wire length is not enough, please contact with the authorized service shop to buy a exclusive electric wire that is long enough and the joint on the wire are not allowed. The electric wiring must be correctly connected, wrong connection may cause spare parts ●... -
Page 25: Install Outdoor Unit
Install outdoor unit Electric wiring Disassemble the handle on the outdoor unit right side plate. Take off cord anchorage. Connect and fix power connect Handle cord (for cooling and heating unit, connect and fix power connect cord and signal control wire)to terminal block. blue yellow- black... -
Page 26: Check After Installation And Test Operation
Check after installation and test operation Check after installation Items to be checked Possible malfunction Has it been fixed firmly? The unit may drop, shake or emit noise. It may cause insufficient cooling (heating) Have you done the refrigerant leakage test? capacity It may cause condensation and dripping. -
Page 27: Installation And Maintenance Of Healthy Filter
Installation and Maintenance of Healthy Filter Installation Instructions 1. Forcibly pull the panel for a specific angle from the two ends of the front panel according to the arrow direction. Then pull the air filter downwards to remove it. (See Fig.a) Fig. -
Page 28: Install Snow Guard (Optional)
Install snow guard (Optional) Installation method of snow guard In consideration of snow during installation of outdoor units Note: It is required to equip snow guard and a higher foundation base to prevent snow from covering air inlet and outlet. Correct Incorrect The snow guard shall... - Page 29 GREE ELECTRIC APPLIANCES, INC. OF ZHUHAI Add: West Jinji Rd, Qianshan, Zhuhai, Guangdong, China, 519070 Tel: (+86-756) 8522218 Fax: (+86-756) 8669426 E-mail: gree@gree.com.cn www.gree.com 66162760...
