Gree Green Harbor GWCN18(09X2)B8NK1BA Manual

Gree Green Harbor GWCN18(09X2)B8NK1BA Manual

Hide thumbs Also See for Green Harbor GWCN18(09X2)B8NK1BA:

Advertisement

Table of Contents

Green Harbor Series
Summary
1
Model
Remark

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Green Harbor GWCN18(09X2)B8NK1BA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Gree Green Harbor GWCN18(09X2)B8NK1BA

Summary of Contents for Gree Green Harbor GWCN18(09X2)B8NK1BA

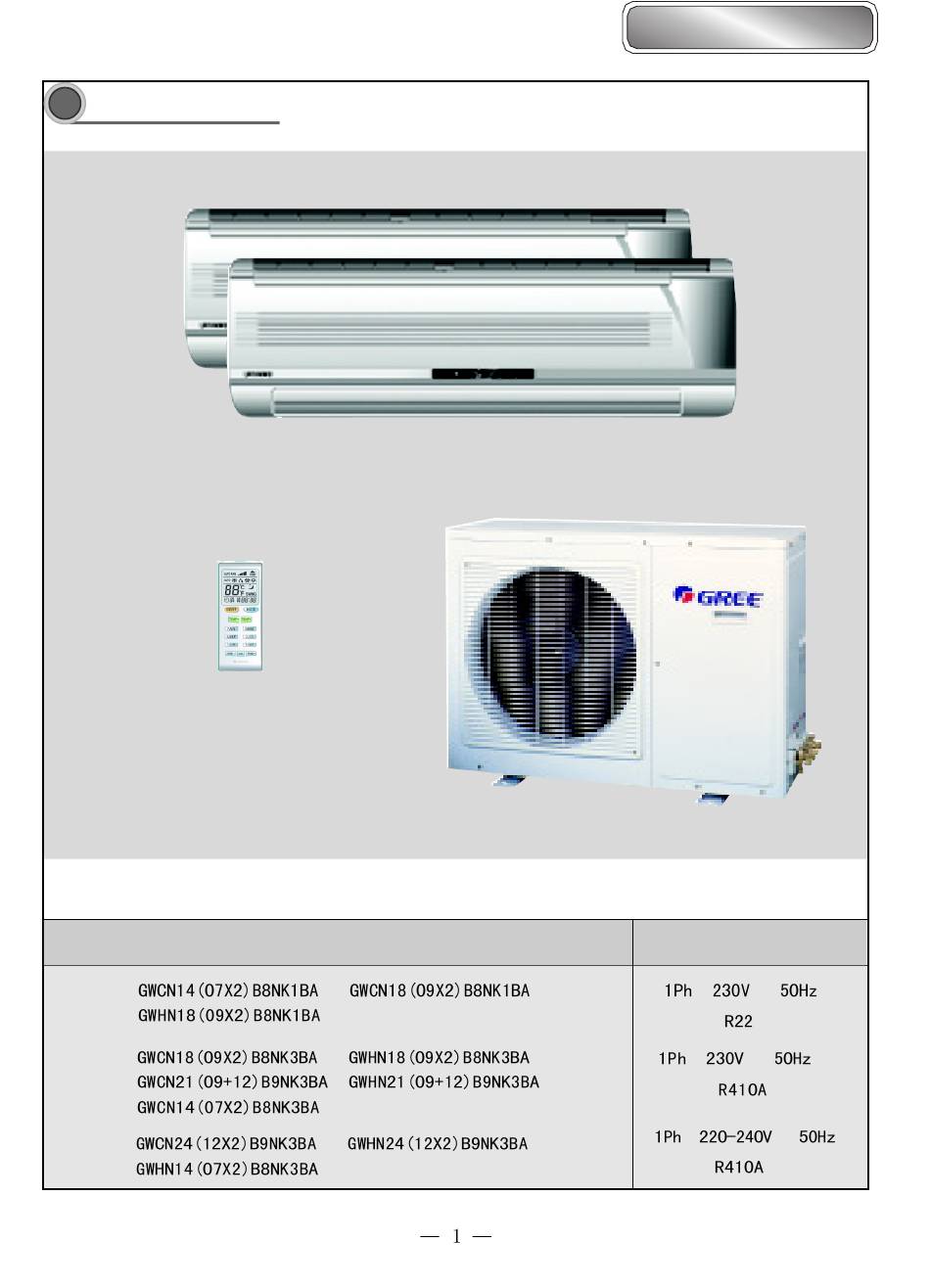

  • Page 1 Green Harbor Series Summary Model Remark...
  • Page 2 Specifications and technical parameters Model GWCN14(07X2)B8NK1BA GWCN18(09X2)B8NK1BA GWHN18(09X2)B8NK1BA Function COOLING COOLING COOLING HEATING Rated Voltage 230V~ 230~ 230~ Rated Frequency 50Hz 50Hz 50Hz Total Capacity (W/Btu/h) 2200X2/7500X2 2500/8535 2500/8535 2850/9730 Power Input (W) 730X2 955X2 955X2 1050X2 Rated Input (W) 900X2 1200X2 1200X2...
  • Page 3 Green Harbor Series GWCN14(07X2)B8NK1B GWCN18(09X2)B8NK1B GWHN18(09X2)B8NK1B Model of Outdoor Unit Compressor Guangzhou Mitsubishi Guangzhou Mitsubishi Shanghai senlin Manufacturer/trademark /Mitsubishi /Mitsubishi Compressor Model SD134CV-H6AU RH174VHAC RH174VHAC Compressor Type Hermetic motor compressor L.R.A. (A) Compressor RLA(A) 4.4A 4.4A Compressor Power Input(W) 960W 960W Overload Protector BF690-KB...
  • Page 4 Model GWCN18(09X2)B8NK3BA GWHN18(09X2)B8NK3BA GWCN14(07X2)B8NK3BA Function COOLING COOLING HEATING COOLING Rated Voltage 230~ 230~ 230~ Rated Frequency 50Hz 50Hz 50Hz Total Capacity (W/Btu) 2600/8876 2600/8876 2900/9900 2100X2/7170X2 Power Input (W) 920X2 995X2 1030X2 650X2 Rated Input (W) 1235X2 1250X2 1250X2 810X2 Rated Current (A) 5.4X2 5.5X2...
  • Page 5 Green Harbor Series GWHN18(09X2)B8NK3B GWHN18(09X2)B8NK3B GWCN14(07X2)B8NK3B Model of Outdoor Unit Compressor Xian Qingan/Qingan Zhuhai landa/GREE LG Electronics inc./LG Manufacturer/trademark Compressor Model YZG-E27RY2 QXA-12uA030 GK080PAD Compressor Type Hermetic motor compressor L.R.A. (A) Compressor RLA(A) 4.4A Compressor Power Input(W) 950W 1010 B180-145-141E or...
  • Page 6 Model GWHN24(12X2)B9NK3BA GWHN14(07X2)B8NK3BA Function COOLING HEATING COOLING HEATING 220 － 240V~ Rated Voltage 230V Rated Frequency 50Hz 50HZ Total Capacity (W) 3500X2 3700X2 2100X2 2250X2 Power Input (W) (High/Norm al*) 1250X2 1250X2 650X2 670X2 Rated Input (W) (High/Norm al*) 1600X2 1450X2 810X2 830X2...
  • Page 7 Green Harbor Series Model of Outdoor Unit GWHN24(12X2)B7NK3EA/O GWHN14(07X2)B8NK3BA/O Compressor Model C-RV146H1A GK080PAD Compressor Type ROTARY Hermetic motor compressor L.R.A. (A) 39.8 Compressor RLA(A) Compressor Power Input(W) 1000 Overload Protector MRA98596-9201/B210-145-241E MRA12009-9201 Throttling Method Capillary Starting Method Capacitor Working Temp Range ( ℃ ) －...
  • Page 8 Model GWHN21(09+12)B9NK3BA Function COOLING HEATING Rated Voltage 230V Rated Frequency 50Hz Total Capacity (W) 2500+3500 2700+3700 Power Input (W) (High/Normal*) 900+1300 900+1300 Rated Input (W) (High/Normal*) 1000+1600 1000+1600 Rated Current (A) (High/Normal *) 4.3+7 4.3+7 500/600 Air Flow Volume (m /h) (H/M/L)** Dehumidifying Volume (l/h) 1.0+1.2...
  • Page 9 Green Harbor Series Model of Outdoor Unit GWHN21(09+12)B9NK3BA/O Compressor Model 5PS108EAA22 C-RV146H1A Compressor Type Hermetic motor compressor L.R.A. (A) Compressor RLA(A) 4.05 Compressor Power Input(W) 1000 7100819 （ KA-122-LPD021A ） Overload Protector B210-145-241E Throttling Method Capillary Starting Method Capacitor Working Temp Range ( ℃ ) -5 ℃≤...
  • Page 10 Model GWCN21(09+12)B9NK3BA GWCN24(12X2)B9NK3BA Function COOLING COOLING 230V ～ Rated Voltage 220-240V~ Rated Frequency 50Hz 50Hz Total Capacity (W)(High/Normal *): 2500+3500 3500X2 Power Input (W) (High/Normal*) 900+1300 1250X2 Rated Input (W) (High/Normal*) 1000+1600 1600X2 Rated Current (A) (High/Normal *) 4.3+7.0 9.0X2 460/600 560X2/480X2/380X2 Air Flow Volume (m...
  • Page 11 Green Harbor Series Model of Outdoor Unit GWCN21(09+12)B9NK3BA/O GWCN24(12X2)B7NK3EA/O Compressor Manufacturer/trademark Shenyang Sanyo/SANYO Compressor Model C-1RV096H1A C-RV146H1A C-RV146H1A Compressor Type Hermetic motor compressor ROTARY L.R.A. (A) 39.8 Compressor RLA(A) Compressor Power Input(W) 1000 1000 Overload Protector B150-145-241E B210-145-241E MRA98596-9201/B210-145-241E Throttling Method Capillary Starting Method Capacitor...

  • Page 12: Parts Name

    Parts name Indoor unit Manual switch Displayer Front panel Power plug Air outlet Air in P o w e r plug Filter Guide louver Air outlet Receiving window Wireless remote control Heat (only for cooling and heating unit) Cool Drainage pipe Temp.

  • Page 13: Outline And Installation Dimensions

    Green Harbor Series Outline and installation dimensions Outline and installation dimensions of indoor unit Air inlet grid Mark for left outlet pipe hole Mark for right outlet pipe hole Unit: Back view Ceiling Rear plate...

  • Page 14: Outline And Installation Dimensions Of Outdoor Unit

    Outline and installation dimensions of outdoor unit Unit: Bolt Spanner...

  • Page 15: System Diagram

    Green Harbor Series System diagram...
  • Page 17 Green Harbor Series These circuit diagrams are subject to change without notice. Please refer to the ones stuck on the machines.
  • Page 19 Green Harbor Series These circuit diagrams are subject to change without notice. Please refer to the ones stuck on the machines.
  • Page 20 Manual of functions of remote controller and operation method Manual of functions of remote controller 1 This manual is applicable to the 07, 09K indoor unit of export Green Harbor Temperature parameter The room setting temperature(Tset) The room ambient temperature (Tamb) Fundamental functions of the system After the power is turned on, the separation time of two consecutive starting time of the compressor should not be less than 3min.
  • Page 21 Green Harbor Series If Tamb Tset-2 , the compressor will stop running, outer fan will stop after 15s delay, and the inner fan will keep in running at a low speed. In this mode, the reversal valve will not be powered on, the setting temperature range is Tamb.
  • Page 22 During defrosting Compressor 10Min. 2Min. Inner fan Four-way valve Running Stop Protection function Fan mode At this mode, compressor, outer fan and reversal valve will stop running, indoor fan will run at setting fan speed. Auto mode For this mode, the system will run automatically the modes according to the ambient temperature (cooling, dry, heating and air supply) Other control Sleep function For cooling or dry running to set up sleep function, after the sleep setting for one hour, the setting temperature will be...
  • Page 23 Green Harbor Series Double 8 power and mode display HEAT When the first time power on, all the figures and double 8 will ligtht on for 3s; When unit turn on, power/running figure displays green, when the unit is off, the power/running figure displays red; When the main unit is cooling in COOL mode or AUTO mode, that the cooling figure will light on;...
  • Page 24 Manual of functions of remote controller 2 This manual is applicable for the models of 12K indoor unit Temperature parameter The room setting temperature(Tset) The room ambient temperature (Tamb) Fundamental functions of the system After power is on, no matter when compressor is started, the time span between the startups cannot be less than 3 minutes. When the first time power on, there is no 3mins delay for compressor;...
  • Page 25 Green Harbor Series If Tamb Tset-2 , the compressor , the outdoor fan will stop running, indoor fan will run at low fan speed. At this mode, the reversal valve will not power on, the temperature setting range is 16-30 Tamb.
  • Page 26 Defrosting condition and procedures When detecting there is frost on the condenser, system enter into defrosting state, at this time the compressor will continue to run, outdoor fan, four-way valve,indoor fan will stop running, the running indicator flashes; After the frosting on the condenser be removed, the outer fan, four-way valve will start to run at the same time, the inner fan will run at 3mins delay, compressor keeps running state , the running indicator stop flashing.
  • Page 27 Green Harbor Series (Swing at the least position) (Swing at the most position) Buzzer After the controller powered on or received the signal sent by the wireless remote control, the buzzer will beep. Auto button (on the main board) When pressing this button, it will run at auto mode, the inner fan will run at Auto fan speed, the swing will start after the guide louver opened,when repress it, the unit will turn off.

  • Page 28: Disassembly Procedures

    Disassembly Procedures 7 7 7 7 7 Disassembling process of indoor unit Operation procedures/pictures Disassemble the front panel Pull the panel open, then remove the rotating shaft from the groove. As shown in Fig.7-1. Front panel Fig. Disassemble filter Push the filter inward and then upward to remove the filter as shown in Fig.7-2;...
  • Page 29 Green Harbor Series Operation procedures/pictures Disassemble the body case To open the screw cap, and screw off 4pcs screw which fixing the front panel, then take down the front panel, then loosen the clasp of backside. Then can take down the body case.
  • Page 30 Operation procedures/pictures Disassemble electric box Pull out motor wire terminal, screw off the earth screw and the screws which fixing the electric box by screw spanner, at last to open the clasp of electric box, then can take down the electric box. As shown in Fig.
  • Page 31 Green Harbor Series Operation procedures/pictures Disassemble motor Screw off the screws which fix the motor clamp, there are 3pcs screws in all. Taken down the motor clamp. As shown in Fig.7- Loosen the fixing nut which is on the right muff of cross flow fan, slightly lift up the motor, then can taken out the motor.
  • Page 32 Disassembly Procedures of the outdoor unit Operation procedures/pictures Disassemble the front side plate Screw off the screws which fixed the front side plate, slide down then can disassemble the front side plate. As shown in Fig. 7-13 Screws Front side plate Fig.
  • Page 33 Green Harbor Series Operation procedures/pictures Disassemble the cabinet Screw off 8pcs tapping screw of cabinet, then could disassemble the cabinet.As shown in Fig.7-16 Screw Fig. Disassemble the electric box To take out 2pcs bolt which is installed on electric mounting board, and pull out of the compressor and inserting slice which is led out by fan motor adn motor, take out of the electric mount- ing board.As shown in Fig.
  • Page 34 Operation procedures/pictures Disassemble axial flow fan To screw off the orbicular bolt which fixes the axial flow fan by spanner, and take out the fixed washer, and pull out the axial flow fan. As shown in Fig.7-19 Axial flow fan Fixing screw Fig.
  • Page 35 Green Harbor Series Operation procedures/pictures Disassemble the capillary Solder off 4pcs soldered point of 2pcs capillary sub- assy and liquid vale and condenser oulet pipe, remove the capillary sub-assy. As shown in Fig.7-22 Capillary Fig. Disassemble the gas valve and Screw liquid valve Screw off 4 screws fixing the two gas valves,...
  • Page 36 Explosive view and list of parts for indoor unit Explosive view of parts for indoor unit...
  • Page 37 Green Harbor Series Parts list of indoor unit Part Code Description GWCN14(07)B8NK1BA/I GWCN14(07)B8NK3BA/I GWHN18(09)B8NK3BA/I Wall-Mounting Frame 01252220 01252220 01252220 Rear Case 222020484 222020484 222020484 Evaporator Pipe Cover 06122001 06122001 06122001 Drainage Pipe 052324111 052324111 052324111 Pipe Clamp 24242004 24242004 24242004 Cross Flow Fan 10352001 10352001...
  • Page 38 Part Code Description GWCN21(09)B8NK3BA/I Wall-Mounting Frame 01252220 Rear Case 222020484 Evaporator Pipe Cover 06122001 Drainage Pipe 052324111 Pipe Clamp 24242004 Cross Flow Fan 10352001 Fan Bearing Ring of Bearing 76512203 Water Tray 20182053 Display Board 30545016 Swing Louver 10512079 Swing link 10582052 Manual Lever 10582051...
  • Page 39 Green Harbor Series Part Code Description GWHN18(09)B8NK3BA/I GWHN07B8NK3BA/I Wall-Mounting Frame 01252220 01252220 Rear Case 222020484 222020484 Evaporator Pipe Cover 06122001 06122001 Drainage Pipe 052324111 052324111 Pipe Clamp 24242004 24242004 Cross Flow Fan 10352001 10352001 Fan Bearing 76512210 76512210 Ring of Bearing 76512203 76512203 Water Tray...
  • Page 40 Part Code Description GWCN18(09)B8NK1BA/I GWHN18(09)B8NK1BA/I GWCN18(09)B8NK3BA/I Wall-Mounting Frame 01252220 01252220 01252220 Rear Case 222020484 222020484 222020484 Evaporator Pipe Cover 06122001 06122001 06122001 Drainage Pipe 052324111 052324111 052324111 Pipe Clamp 24242004 24242004 24242004 Cross Flow Fan 10352001 10352001 10352001 Fan Bearing Ring of Bearing 76512203 76512203...
  • Page 41 Green Harbor Series Explosive view of parts for indoor unit...
  • Page 42 Parts list of indoor unit Part Code Description GWCN21(12)B9NK3BA/I GWCN24(12)B9NK3BA/I Wall-Mounting Frame 01252217 01252217 Rear Case 222020343 222020343 Drainage Pipe 052324111 052324111 Cross Flow Fan 10352012 10352012 Fan Bearing 76512210 76512210 Ring of Bearing 76512206 76512206 Water Tray Foam 12412062 12412062 Water Tray 20182055...
  • Page 43 Green Harbor Series Part Code Description GWHN24(12)B9NK3BA/I Wall-Mounting Frame 01252217 Rear Case 222020343 Drainage Pipe 052324111 Cross Flow Fan 10352012 Fan Bearing 76512210 Ring of Bearing 76512206 Water Tray Foam 12412062 Water Tray 20182055 Swing Louver 10512030 Left Linkage Lever 10582016 Right Linkage Lever 10582017...
  • Page 44 Explosive view of cooling outdoor unit...
  • Page 45 Green Harbor Series Parts list of indoor unit Part Code Description GWCN14(07X2)B8NK1BA/O GWCN14(07X2)B8NK3BA/0 Self-tapping Screw 70140553 70140553 Front Grill 22265251 22265251 Front Plate 01433028 01433028 Axial Flow Fan 10335253 10335253 Motor LW68B 15013032 15013032 Motor Support 01703027 01703027 Condenser Assy 01103116 01103116 Top Cover...
  • Page 46 Part Code Description GWCN18(09X2)B8 GWHN18(09X2)B8 GWCN18(09X2)B8 GWHN18(09X2)B8 NK1BA/0 NK1BA/0 NK3BA/0 NK3BA/0 Self-tapping Screw 70140553 70140553 70140553 70140553 Front Grill 22265251 22265251 22265251 22265251 Front Plate 01433031 01433028 01433028 01433028 Axial Flow Fan 10335257 10335253 10335253 10335253 Motor LW68B 15015057 15013063 15013106 15013106 Motor Support...
  • Page 47 Green Harbor Series Code of Material Amou Name of Material GWHN18(09X2)B8NK3BA/0 Self-tapping Screw 70140553 Front Grill 22265251 Front Plate 01433028 Axial Flow Fan 10335253 Motor LW80C 15013106 Motor Support 01703027 Condenser Assy 011030643 Top Cover 01255262 Rear Grill 01473028 Tube Sensor 390001921 Tube Sensor Defrosting PCB 2F16HS...
  • Page 48 Explosive view of cooling outdoor unit...
  • Page 49 Green Harbor Series Spare part list of one to two outdoor unit Part Code Description GWCN21(09+12)B9NK3BA/O GWCN24(12X2)B7NK3EA/O Front Grill Sub-assy 22265251 22265251 Cabinet 01433028 01435254 Front Side Plate 01303018 01305247 Metal Base 01203369 01203013 Capillary Sub-Assy 1 031030281 Capillary Sub-Assy A 03003663 Capillary Sub-Assy B 03003662...
  • Page 50 Explosive view of outdoor unit...
  • Page 51 Green Harbor Series Spare part list of one to two outdoor unit Code of Material Amou Name of Material GWHN24(12X2)B7NK3EA/O Front Grill Sub-assy 22265251 Cabinet 01435254 Front Side Plate 01305247 Metal Base 01203013 Capillary Sub-Assy A 03003601 Capillary Sub-Assy B 03003602 Valve 1/2 ″...
  • Page 52 Code of Material Amou Name of Material GWHN21(09+12)B9NK3BA/O Front Grill Sub-assy 22265251 Cabinet 01433028 Front Side Plate 01303023 Metal Base 012033691 Capillary Sub-Assy 1 03003535 Capillary Sub-Assy 2 03003536 Valve 3/8 ″ 07130209 Valve 1/2 ″ 07130210 Valve 1/4 ″ 07130208 Valve Support 01713028...
  • Page 53 Green Harbor Series Explosive view of outdoor unit...
  • Page 54 Spare part list of one to two outdoor unit Code of Material Amou Name of Material GWHN14(07X2)B8NK3BA/O Self-tapping Screw 70140553 Front Grill 22265251 Front Plate 01433028 Axial Flow Fan 10335253 Motor FW38A 15013032 Motor Support 01703027 Condenser Assy 011030643 Top Cover Assy 01255262 Rear Grill 01473024...
  • Page 55 Green Harbor Series 9 9 9 9 9 Failure and analysis The breaker trips at once when it Measure insulation resistance to ground to see if there is any leakage. is set to "ON". Trip of breaker or blow of The circuit or the part of the air conditioner has fuse malfunction.
  • Page 56 Improper set of temperature Adjust set temperature If cooling (heating) load is Check the forecasted load of cooling (heating) proper heck and fill the leakage, then The refrigerant has leakage or is vacuumize it and supplement the re- insufficient frigerant as required Leakage between the high pres- Replace the compressor sure and the low pressure in-...
  • Page 57 Green Harbor Series The indoor fan motor is burned or breaks Replace the fan motor or the defective part. or has the heat protector malfunction. The built-in heat protector of the motor Replace the fan motor breaks frequently because the motor is abnormal.
  • Page 58 Drainage pipe blocked or broken Change drainage pipe Water leakage Wrap of refrigerant pipe joint is not close Re-wrap and make it tight. enough. Fan of indoor unit contacts other parts. Adjust fan location. Foreign object in indoor unit Take out the foreign object. Adjust support washer of compressor, and Compressor shakes too much.

This manual is also suitable for:

Green harbor gwhn18(09x2)b8nk1baGreen harbor gwcn14(07x2)b8nk1baGreen harbor gwcn18(09)b8nk1ba/iGreen harbor gwhn18(09)b8nk1ba/iGreen harbor gwcn14(07)b8nk1ba/iGreen harbor gwcn18(09x2)b8nk1b a/o ... Show all
