Altronix ReServ1 Installation Manual page 5

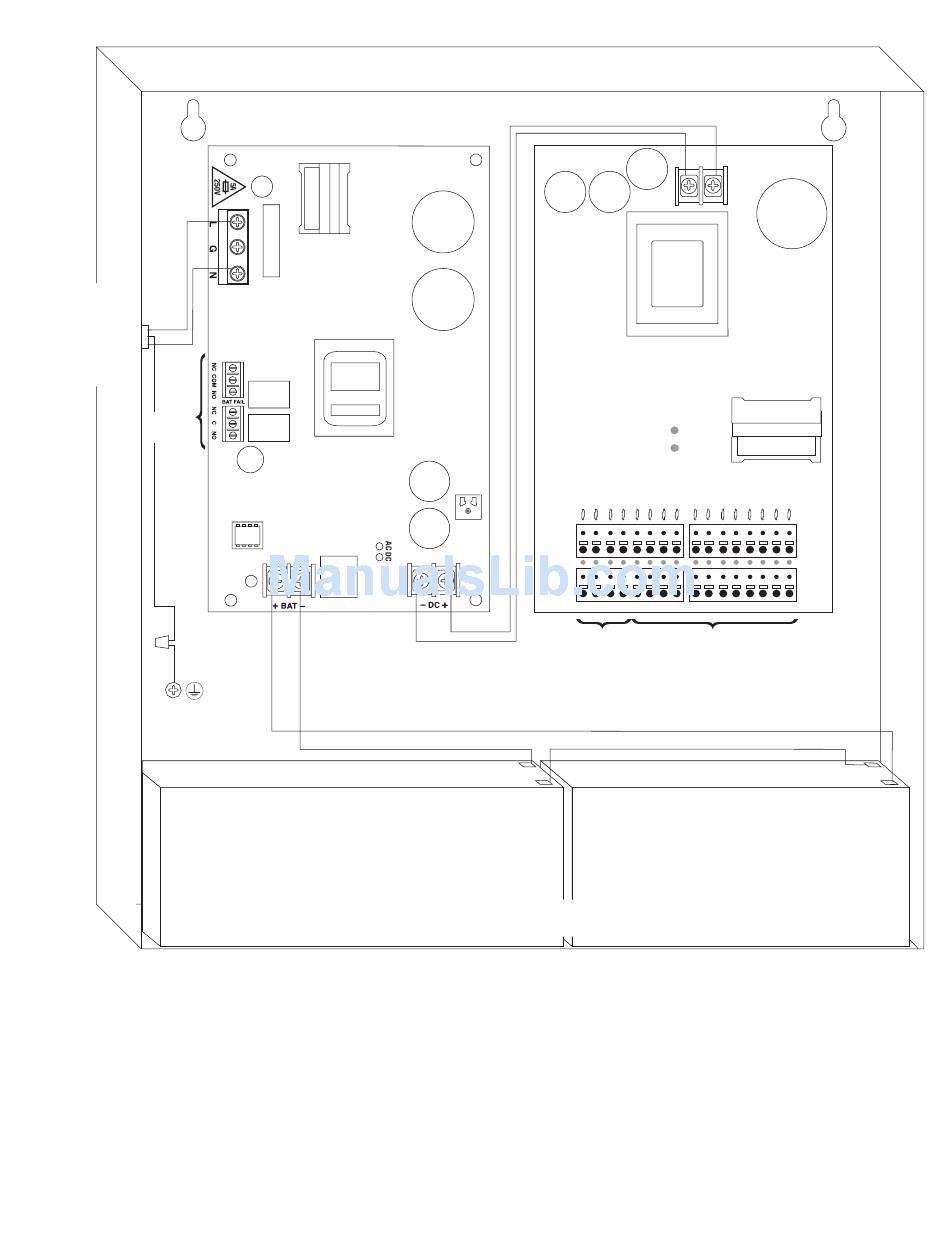

Fig. 1 - ReServ1
Unswitched
115VAC
60Hz, 3.5A
power mains
(non power-limited)
power-
limited
Green
Lead
ReServ
Non power-limited
CAUTION: Risk of explosion if battery is replaced by an incorrect type.
Dispose of used batteires according to the instructions.
12VDC Rechargeable Battery
(order separately)
Note: Two (2) 12VDC rechargeable batteries connected in series required.
P
N
1 2 3 4
12VDC
Power-
Limited
Outputs
Supervised - Non power-limited
Input
--- 24VDC +
LOW BATTERY
SHUTDOWN
5 6 7 8 9 10 11 12 13 14 15 16
24VAC
Power-Limited Outputs
12VDC Rechargeable Battery
(order separately)
- 5 -
