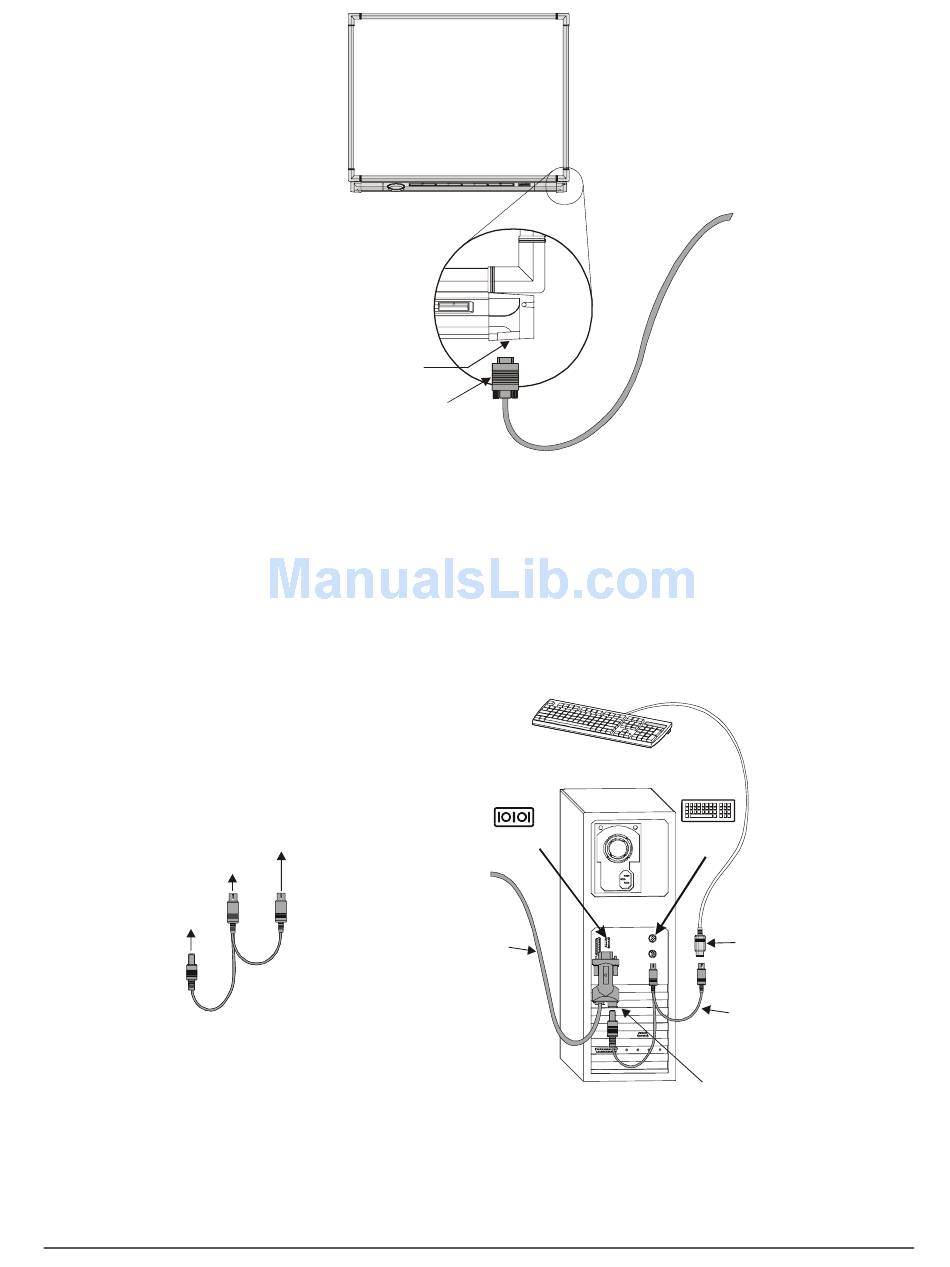

4 Connect the other end of the serial cable (long DB9 connector) to a COM (serial) port
on your computer. Unplug your keyboard connector and reconnect it to the supplied
SMART Keyboard Adapter. Insert the male end of the keyboard adapter into the
keyboard port on your computer. Finally, insert the keyboard adapter's power plug into
the power plug socket on the back of the long DB9 connector.
NOTE: If you're connecting to a laptop computer, you'll need to connect an external
power supply rather than a keyboard adapter to the long DB9 connector.
To Keyboard Port
To Power Plug
on DB9
SMART Keyboard Adapter
iv
9-pin Serial Port
(Underneath Board)
Short DB9 Connector
To Keyboard
Connector
Serial Cable
Serial Port
PC Serial Connections
Preface
Keyboard
Port
Keyboard Connector
Keyboard Adapter
Power Plug Socket
