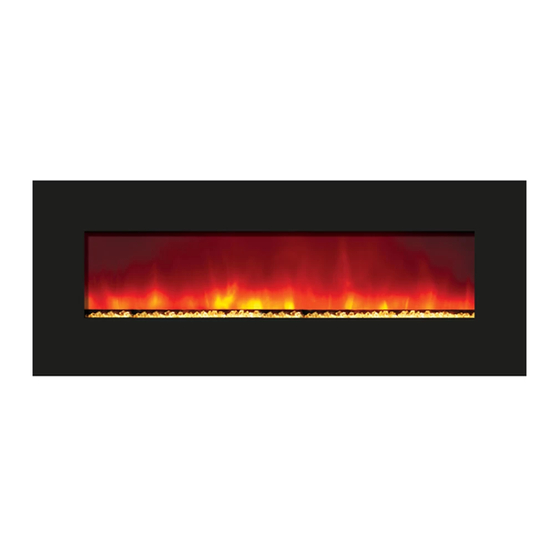

ELECTRIC FIREPLACE
INSTALLATION AND OPERATION INSTRUCTIONS FOR
WALL-MOUNT AND BUILT-IN UNITS
WM-BI-26-3623
WM-BI-34-4423
WM-BI-48-5823
WM-BI-72-8123
SAFETY INFORMATION
WARNING
If the information in these
instructions are not followed exactly,
a fire or explosion may result causing
property damage, personal injury or
loss of life.
Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any other
appliance.
INSTALLER: LEAVE THIS MANUAL WITH THE APPLIANCE.
CONSUMER: RETAIN THIS MANUAL FOR FUTURE REFERENCE.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WM-BI-26-3623 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Amantii WM-BI-26-3623

Summary of Contents for Amantii WM-BI-26-3623

  • Page 1 ELECTRIC FIREPLACE INSTALLATION AND OPERATION INSTRUCTIONS FOR WALL-MOUNT AND BUILT-IN UNITS WM-BI-26-3623 WM-BI-34-4423 WM-BI-48-5823 WM-BI-72-8123 SAFETY INFORMATION WARNING If the information in these instructions are not followed exactly, a fire or explosion may result causing property damage, personal injury or loss of life.

  • Page 2: Table Of Contents

    The instructions included here will as sure that you have many years of dependable and enjoyable service from your Stanley product. IMPORTANT INSTRUCTIONS............................3 CAUTIONS..................................5 UNPACKING AND TESTING APPLIANCE .......................6 LOCATING THE FIREPLACE .............................6 WM-BI-26-3623................................7 WM-BI-34-4423................................8 WM-BI-48-5823................................9 WM-BI-72-8123................................10 INSTALLATION-WALL MOUNT ..........................11 INSTALLATION- BUILT-IN ............................12 OPERATION................................13 MANUAL OPERATION..............................13...

  • Page 3: Important Instructions

    IMPORTANT INSTRUCTIONS Please read the following instructions carefully before using the appliance. Caution - Fire, electric shock, physical injury and material damage hazards: To use the appliance, always follow the instructions for assembly, use and maintenance as well as usage cautions: 1.
  • Page 4 the room on their own, unless constant supervision is provided. 22. If the glass is damaged, do not use the heater in order to avoid a hazard. 23. Children of less than 3 years should be kept away from unless continuously supervised. 24.

  • Page 5: Cautions

    Cautions ·Always install the heater in accordance with this guide. If in doubt obtain expert advice. ·Always make sure the electrical socket is accessible and located adjacent to, but not above the heater. ·Always disconnect the heater from the electrical supply before Do’s moving it, or carrying out cleaning, maintenance.

  • Page 6: Unpacking And Testing Appliance

    UNPACKING AND TESTING APPLIANCE Carefully remove the appliance from the box. Prior to installing the appliance, test to make sure the appliance operates properly by plugging the power supply cord into a conveniently located 240 Volt grounded outlet. There are two screws on each side to fix the front glass. Please see the figure right side.

  • Page 7: Wm-Bi-26-3623

    WM-BI-26-3623 Description Built-in or Wall Mount Appliance Voltage 240V AC 50-60Hz Watts 1900W Max NO HEATER MOTOR HEATER Appliance Width 25 1/2” or 64.9 cm Appliance Height 21 1/8” or 53.6 cm Appliance Depth 6 1/8” or 15.5 cm Gross Weight 55.68 lbs or 25.31kgs...

  • Page 8: Wm-Bi-34-4423

    WM-BI-34-4423 Description Built-in or Wall Mount Appliance Voltage 240V AC 50-60Hz Watts 1900W Max NO HEATER MOTOR HEATER Appliance Width 33 1/2” or 85.2 cm Appliance Height 21 1/8” or 53.6 cm Appliance Depth 6 1/8” or 15.5 cm Gross Weight 65.78 lbs or 29.90kgs Plug Location Left side...

  • Page 9: Wm-Bi-48-5823

    WM-BI-48-5823 Description Built-in or Wall Mount Appliance Voltage 240V AC 50-60Hz Watts 1900W Max NO HEATER MOTOR HEATER Appliance Width 47 1/2” or 120.7 cm Appliance Height 21 1/8” or 53.6 cm Appliance Depth 6 1/8” or 15.5 cm Gross Weight 82.17 lbs or 37.35kgs Plug Location Left side...

  • Page 10: Wm-Bi-72-8123

    WM-BI-72-8123 Description Built-in or Wall Mount Appliance Voltage 240V AC 50-60Hz Watts 1900W Max NO HEATER MOTOR HEATER Appliance Width 71” or 180.4 cm Appliance Height 21 1/8” or 53.6 cm Appliance Depth 6 1/8” or 15.5 cm Gross Weight 133.12 lbs or 52.41kgs Plug Location Left side...

  • Page 11: Installation-Wall Mount

    INSTALLATION-WALL MOUNT 1. Select a location that is not prone to moisture and is located at least 0.91 m or 3 feet away from combustible materials such as curtains or drapes, furniture, bedding ,paper, etc. 2. Referring to Fig. 1 below select a suitable position in which to mount the heater horizontally –...

  • Page 12: Installation- Built-In

    120 Volt 4. Level the fireplace. grounded outlet. 5. Drive mounting screws into mounting brackets on the unit and the The rough wall opening size of the fireplace. wall studs. W(“) D(“) H(“) WM-BI-26-3623 WM-BI-34-4423 WM-BI-48-5823 WM-BI-72-8123 72 1/2...

  • Page 13: Operation

    OPERATION The fireplace can be operated either by the switches located on the left bottom of the fireplace unit or by supplied remote control. Plug the fireplace into a 15 Amp wall socket. MANUAL OPERATION 1、 Press key . Press for the first time，heater work at 1900W, indicator lights red.

  • Page 14: Remote Control Operation

    REMOTE CONTROL OPERATION Press the remote control’s key“ ”, its screen turns on, the flame ignites and the flame icon appears on 、 the LCD screen of the remote control. Week, time (24h system), and temperature setting are displayed normally. Press it again, the screen of the remote control will turn off; 、...
  • Page 15 7、 Press the heating key“ .” Press for the first time ,the heating elements work at 1900W, the LCD screen displays , the indicator on the machine lights red. Press a second time , the heating elements work at 950W, the LCD screen displays , the indicator on the machine lights blue.
  • Page 16 for Tuesday. Press for the 7th time and it displays . Press for the 8th time and it exits and recovers to the current week day; 11、Press“ .” Press for the first time and the timing function turns on, the LCD screen displays the machine’s indicator lights green.

  • Page 17: Care And Maintenance

    CARE AND MAINTENANCE 1. Switch off and unplug from the power supply before cleaning. 2. Using a soft, moist cloth, with or without a mild soap solution, carefully clean the exterior surface of the products. CAUTION: Allow the product to completely cool before handling or cleaning it. 3.

  • Page 18: Replacement Parts

    REPLACEMENT PARTS PART NUMBER DESCRIPTION WM-BI-26-3623 WM-BI-34-4423 WM-BI-48-5823 WM-BI-72-8123 FIREPLACE BOX 301506 301506 301506 301506 REMOTE RECEIVER 601095F 601095F 601095F 601095F CIRCUIT BOARD 10104010 10104010 10104010 10104010 SWITCH 601035 601035 601035 601035 CONTROL PANEL TOP PANEL 602083D 602083D 602083D 602083D...

  • Page 19: Exploded View

    EXPLODED VIEW...

  • Page 20: Truble Shooting

    TRUBLE SHOOTING PROBLEM POSIBBLE CAUSE SOLUTION Dim or no flame Flame LED’s are burnt out Inspect the LED’s and replace them if necessary. Ember Ember LED’s are burnt out Inspect the ember bed LED’s and glowing or dimming replace them if necessary. Appliance turns Appliance...

  • Page 21: Service History

    SERVICE HISTORY This heater must be serviced annually depending on usage. Date Dealer Service technician Service Performed Special Concerns Name Name NOTES:...

  • Page 22: Warranty

    WARRANTY Stanley warrants that your newly purchased Stanley electric fireplace is free from manufacturing and material defects for a period of two (2) years from the date of the first purchase, subject to the conditions and limitations contained below. Warranty Application & Exclusions This limited warranty applies to your newly purchased Stanley electric fireplace;...
  • Page 23 incidental loss, cost or damage arising out of or in connection with the sale, maintenance, use or inability to use the product, even if Stanley, including without limitation any of its directors, officers, shareholders, employees, consultants, agents, heirs, executors, administrators and assigns, be liable for any direct losses, costs or damages that exceed the purchase price of the product.
