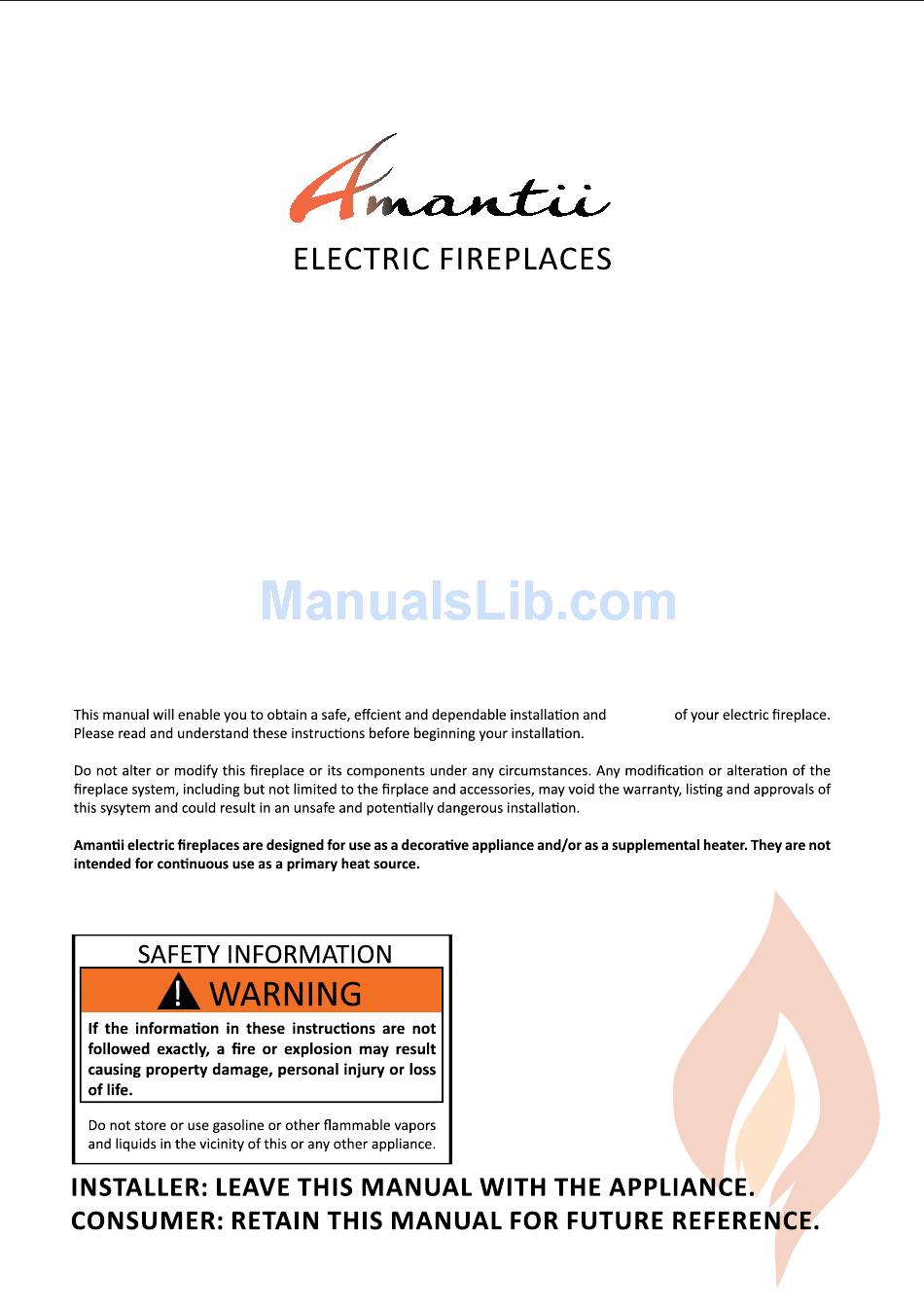

- Page 1 INSTALLATION AND OPERATION INSTRUCTIONS FOR WALL- MOUNT AND BUILT- IN UNITS WM-BI-26-3623 WM-BI-26-3623-WHTGLS WM-BI-34-4423 WM-BI-34-4423-WHTGLS WM-BI-48-5823 WM-BI-48-5823-WHTGLS WM-BI-72-8123 WM-BI-72-8123-WHTGLS WM-BI-FI-34-4423-BLKGLS WM-BI-FI-48-5823-BLKGLS operation 09 13-01...
-
Page 2: Table Of Contents
TABLE OF CONTENTS CONGRATULATIONS! In selecting this Amantii Wall Mount OR Built-in electric fireplace, you have chosen the finest and most dependable fireplace on the market today. A beautiful and functional addition to the finest homes. Welcome to the family of satisfied Amantii electric fireplace owners. -
Page 3: Important Instructions
IMPORTANT INSTRUCTIONS WARNING! 5. Do not use outdoors. properly grounded outlet box. The adapter should not be used if a three-slot grounded receptacle is available. Cover Of Grounded Outlet Box Metal Screws Grounding Pin Adapter Grounding Means Grounding Fig. 1 SAVE THESE INSTRUCTIONS... -
Page 4: Wm-Bi-26-3623-/Whtgls
WM-BI-26-3623-/WHTGLS This appliance has been tested in accor- Model Number WM-BI-26-3623 -/WHTGLS dance with the UL Standand 2021 for Built-In or Wall Mount Appliance Voltage 120V AC,60Hz appliances in the United States and Cana- da. If you need assistance during installa-... -
Page 5: Wm-Bi-34-4423-/Whtgls
WM-BI-34-4423-/WHTGLS WM-BI-FI-34-4423-BLKGLS This appliance has been tested in accor- Model Number WM-BI-34-4423 -/WHTGLS dance with the UL Standand 2021 for Built-In or Wall Mount Appliance appliances in the United States and Cana- Voltage 120V AC,60Hz da. If you need assistance during installa- Amps 1500W HIGH... -
Page 6: Wm-Bi-48-5823-/Whtgls
WM-BI-48-5823-/WHTGLS WM-BI-FI-48-5823-BLKGLS This appliance has been tested in accor- Model Number WM-BI-48-5823 -/WHTGLS dance with the UL Standand 2021 for Built-In or Wall Mount Appliance Voltage 120V AC,60Hz appliances in the United States and Cana- da. If you need assistance during installa- Amps 1500W HIGH... -
Page 7: Wm-Bi-72-8123-/Whtgls
WM-BI-72-8123-/WHTGLS This appliance has been tested in accor- Model Number WM-BI-72-8123 dance with the UL Standand 2021 for -/WHTGLS Built-In or Wall Mount Appliance appliances in the United States and Cana- Voltage 120V AC,60Hz da. If you need assistance during installa- Amps 1500W HIGH... -
Page 8: Installation Overview
INSTALLATION OVERVIEW NOTE: BEFORE YOU INSTALL SITE SELECTION wall. rapes, pillow Review and consider all of the following condi- re etc. wo (2) wall ht and away fr overhead light- ing. ethods: electric et for ease of electric t-In (page 10) nt (Page 12) and all hardware fr ox and r... -
Page 9: Package Contents
PACKAGE CONTENTS Part Wall Mount Bracket Decorative Media CONTENTS Description Quantity Picture Part Screw 0.16 in. x 1.0 in. Wall Plug 0.3 in. x 1.5 in. Wood Screw 0.16 in. x 0.6 in. - Page 10 NEW CONSTRUCTION OR RENOVATION CAUTION: min. 5 cm Two people may be needed to 2 in moisture and is located at least 0.91 m or als such as curtains or drapes, furniture, bedding, paper, etc. min. 5 cm 2 in Sides ---------------------- 2 in / 5 cm Floor ---------------------- 13 3/4 in / 35 cm Top ---------------------- 2 in / 5 cm...
- Page 11 2 1/4" or 5.8 cm The rough wall opening size of the fireplace. and the wall studs. W(") D(") H(") WM-BI-26-3623 WM-BI-34-4423 WM-BI-48-5823 WM-BI-72-8123 72 1/2 2 1 4 " [58mm] Wall...
- Page 12 NOTE: BEFORE YOU INSTALL Stakes for hanging wall bracket It is strongly recommended that the screws be screwed into the wall studs where possible. If anchors are used. ke sure it is level. 13 3/4 inch hanging into the keyholes on the back of the unit. Floor 3.
-
Page 13: Media Options
Media op ons Models WB-BI-26-3623, WM-BI-34-4423, WM-BI-48-5823, WM-BI-72-8123, are shipped with an LED ember log that is pre-installed. 3 colours of fire glass media are also included. See page 16 for log removal instruc ons. See page 16 for media installa on instruc ons. LED log Clear Harvest Moon... - Page 14 Fire Glass Media - Log Installa on 1. Removing the log Unplug the unit from wall and make sure controls are switched off. The LED log is shipped in place. The log has tabs on each side that hold it secure. Remove the side panel to remove the log set and the LED strip. .
-
Page 15: Front Installation
FRONT INSTALLATION NOTE: BEFORE YOU INSTALL It is recommended that two people install the front onto the appliance, w ear sa fety glasses and gloves when handling glass. 1.Lift fireplace front and line up the brackets with the four (4) shoulder screws on the side of appliance body NOTE: Before you lift the front glass. -
Page 16: Operating The Unit
OPERATING THE UNIT Wall 1. Make sure the appliance is switched OFF (refer on the right hand side of the unit. 3. Plug unit into electrical outlet. HARD-WIRE INSTALLATION If it is necessary to hard wire this appliance, a qualified electrician may remove the cord connection, and wire the appliance directly to the house hold wiring. - Page 17 6 metres. This remote control will be used on : WM-BI-26-3623, WM-BI-34-4423 , WM-BI-48-5823, WM-BI-72-8123 The button located at the top position of the remote control is ON/OFF. Press it, the flame and ember will be on. The heater will be off. Press again, the fireplace will turn off.
- Page 18 This remote control will be used on : WM-BI-26-3623-WHTGLS, WM-BI-34-4423-WHTGLS, WM-BI-48-5823-WHTGLS WM-BI-72-8123-WHTGLS, WM-BI-FI-34-4423-BLKGLS, WM-BI-FI-48-5823-BLKGLS The button located at the top position of the remote control is ON/OFF. Press it, the flame and ember will be on. The heater will be off. Press again, the fireplace will turn off.
- Page 19 B: Main Unit Buttons Operations 1. Power ON/OFF Switch 2. Flame & Ember 3. Mood Light 4. HEAT 5. Indicator Plug the heater into a suitable outlet. 1) " Power ON/OFF" Set this switch to position I to turn the product ON. Setting it to O to turn the product OFF. The POWER LED will be lit when the fireplace insert is on.
-
Page 20: Replacing The Remote Control Battery
REPLACING THE REMOTE CONTROL BATTERY When the remote control stops operating or its range seems reduced, it is time to replace the batteries with new ones. Remove the batteries if the remote control won’t be used for a long period of time. 1. -
Page 21: Care And Maintenance
CARE AND MAINTENANCE CLEARANCE TO COMBUSTIBLES Keep electrical cords, drapery, furniture and other combustibles at least 3 ft. from the front of the heater and away from the sides. CLEANING TRIM Clean the metal trim using a soft cloth, slightly dampened with a citrus oil-based product and buff with a clean soft cloth. -
Page 22: Fireplace Maintenance
FIREPLACE MAINTENANCE WARNING: Disconnect power before performing any maintenance or cleaning to reduce the risk of LED LIGHT BULB REPLACEMENT LED light bulbs are to be replaced by the manufacturer, it’s service agent or similar quali- WARNING: UNIT DISPOSAL Do not dispose with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the... -
Page 23: Trouble Shooting
TROUBLE SHOOTING WARNING Disconnect power before performing any maintenance and allow to cool before servic- SYMPTOM POSSIBLE CAUSES CORRECTIVE ACTION Fireplace doesn’t work. Fireplace inner temperature over Reset switch by turning main power switch off and waiting five heatng or home circuit breaker mimutes, then turning it back on. -
Page 24: Parts List
10105041 REMOTE 10105046 REMOTE FOR YELLOW/BLUE 19 10101200B FLAME MOTOR 20 10101201C FLAME MOTOR ONLY FOR WM8123 10104010 SWITCH 22 10305511 WM-BI-26-3623 23 10305512 WM-BI-34-4423 24 10305513 WM-BI-48-5823 25 10305514 WM-BI-72-8123 10701151 FRONT TEA GLASS WM-BI-26-3623 10701152 FRONT TEA GLASS... - Page 25 SERVICE HISTORY This heater must be serviced annually depending on usage. Dealer service technician Date service Performed special Concerns Name Name NOTES:...
- Page 26 Products covered by this limited warranty have been tested and inspected prior to shipment and, subject to the provisions of this war- ranty, Amantii warrants such products to be free from defects in material and workmanship for a period of one (1) year from the date of the first purchase of such products.
- Page 27 ELECTRIC FIREPLACES...
