PRODUCT FEATURES

2
1
14 14
User Manual
6
7
3
4 5

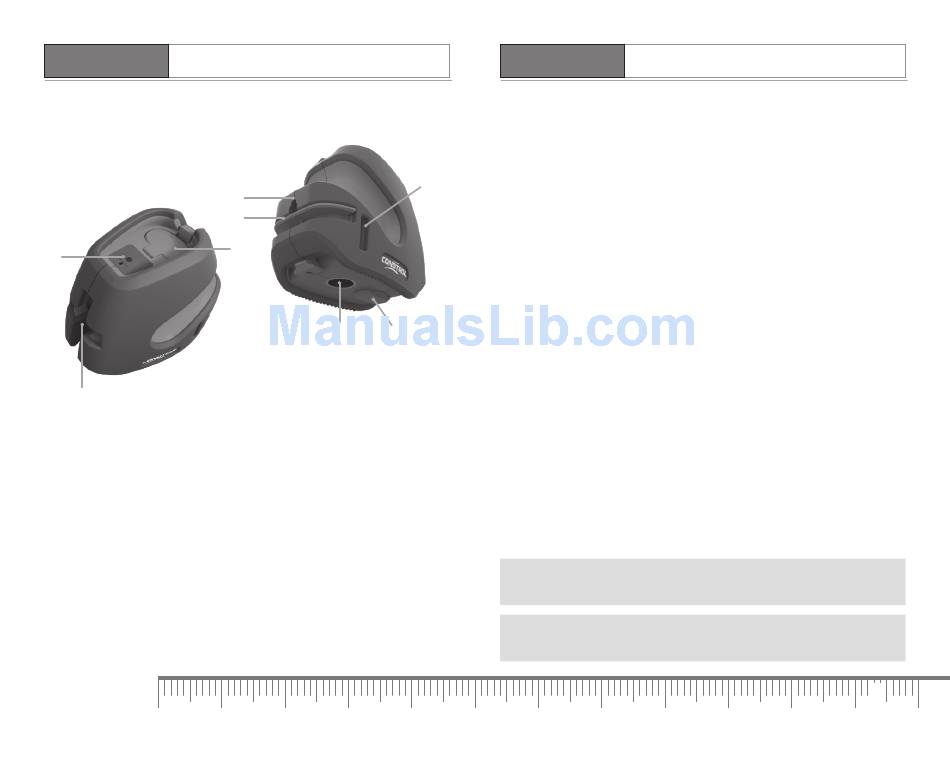

1 Laser lines apertures
2 On/Off switch button
3 Battery cover
4 Tripod mount 5/8"
5 Transport retainer
6 Mount hole
7 Mount clip
8 Belt mount
CROSS LINE
LASER
Horizontal and vertical leveling
Open the battery compartment and insert the batteries according to the
polarity. Don't confuse the polarities.
The instrument has four plane construction modes:
8
- the horizontal and vertical line construction mode with the switched-on
self-levelling mode.
- the vertical line construction mode with the switched-on self-levelling
mode.
- the horizontal line construction mode with the switched-on self-levelling
mode.
- the horizontal and vertical line construction mode with the switched-off
self-levelling mode.
Turn the compensating block (5) located on the bottom on the instrument
anticlockwise to a position (the lock is open) and press (2). A vertical laser
line appears.
To change the operating modes press (2).
While working in the switched-on self-levelling mode, when the instrument
is put on a rough surface or on a tripod with a tilt more than 4° laser lines
start to blink, signalizing that the instrument is out of the automatic self-
levelling area. In this case it is necessary to put the instrument on a flat
surface
The horizontal and vertical line construction mode with the switched-off
self-levelling mode is needed for the inclined plane construction.
NOTE! In this mode the horizontal or vertical levelling is not impossible
because laser lines are not centered automatically.
NOTE! After finishing work lock the compensating block (5) by setting
it at the position (the lock is locked up).
