CONDTROL WheelPRO User Manual

MEASURING WHEEL
WheelPRO
EN
Congratulations on your purchase of measuring wheel WheelPRO CONDTROL.
Safety instructions provided in this user manual should be carefully read before you use
the product for the first time.
SAFETY REGULATIONS
Attention! This user manual is an essential part of this product.
The user manual should be read carefully before you use the product for the first time. If
the product is given to someone for temporary use, be sure to enclose user manual to it.
- Do not misuse the product.
- Store the product beyond reach of children and unauthorized people.
- It is prohibited to disassemble or repair the product yourself. Entrust product repair to
qualified personnel and use original spare parts only.
- Do not use the product in explosive environment, close to flammable materials.
FUNCTIONS/APPLICATIONS
The measuring wheel WheelPRO CONDTROL is designed for fast and accurate
measurement of distance in locations where it is impractical or impossible to use laser
distance meters.
It is widely used for the inventory of various objects, measurements of road sections,
forest areas, railway tracks, places of traffic accidents, for measuring the length of
external communications, cadastral measurements etc.
The advantage of WheelPRO CONDTROL is reliability and easy handling. The folding
handle, made of stainless steel, provides easy transportation and storage. The brake
button located on the handle allows to fix the measured distance on the distance
recorder and avoid getting incorrect results.
DELIVERY PACKAGE
Measuring wheel – 1 pc.
Pouch – 1 pc.
User manual – 1 pc.

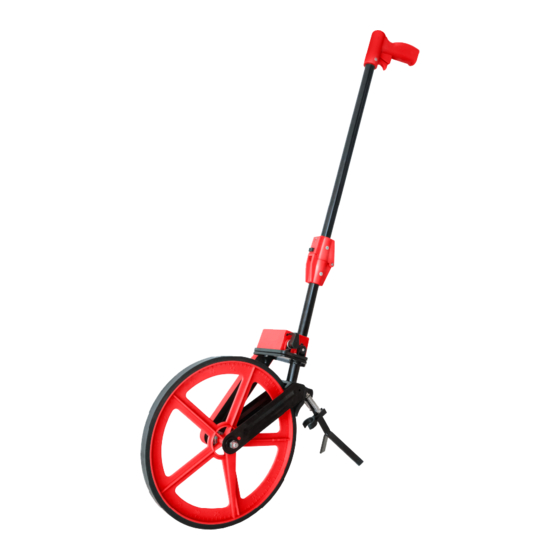

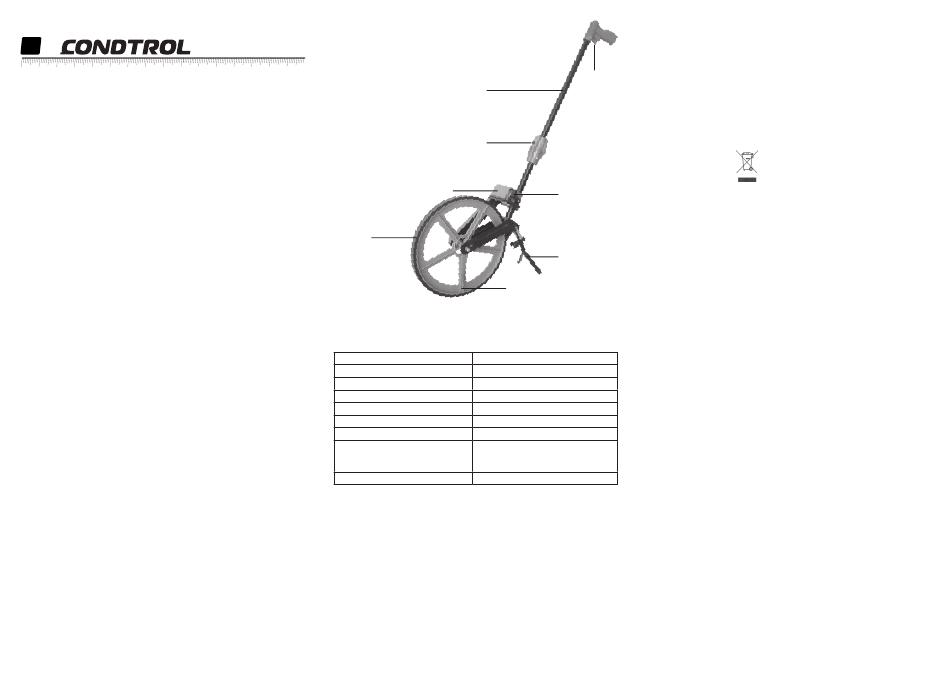

EXTERNAL APPEARANCE
1 Handle
2 Handle lock
3 Wheel
4 Distance recorder
User manual 5 Key to reset the recorder to 0
6 Supporting stand
7 Arrow
8 Brake button
3
TECHNICAL SPECIFICATIONS
Measuring range
Accuracy
Smallest unit displayed
Wheel diameter
Сircumference
Operating temperature
Storage temperature
Dimensions
- unfolded
- folded
Weight
OPERATION
The device is delivered folded for easy transportation and storage.
1) Slide the top and bottom parts of the handle apart until the top one is fixed to the
bottom one.
2) Pull the recorder reset key counterclockwise to reset it.
3) Lift up the stand.
4) Set the measuring wheel to the starting point of the measurement so that the arrow
is directly above the starting point.
5) Move the wheel forward along the distance to be measured. Keep the wheel in contact
with the surface to ensure accurate measurement. The recorder starts counting down.
6) Stop the wheel by pressing the brake button as soon as the arrow is directly above
the target point.
7) The distance measurement result is displayed on the recorder.
8
1
2
4
5
6
7
0-99,999.9 m
±0.3%
0,1 m
318 mm
1 m
-10 C...45 C
0 0
5 0 C...40 0 C
1100x320x160 mm
580x320x160 mm
2 kg
CARE AND MAINTENANCE
Maintenance of the following recommendations will extend the life of the device:
- Protect the device from bumps, falling and intense vibration; do not allow moisture,
dust and foreign objects get inside the device.
- Do not store and use the device in increased humidity conditions.
- Clean the device with a soft cloth slightly made damp with a mild soap solution. Do not
use cleaning solvents or abrasives.
UTILIZATION
Expired tools, accessories and package should be passed for waste recycle. Please send
the product to the following address for proper recycle:
CONDTROL GmbH
Wasserburger Strasse 9
84427 Sankt Wolfgang
Germany
Do not throw the product in municipal waste!
According to European directive 2002/96/ЕC expired measuring tools and their
components must be collected separately and submitted to environmentally friendly
recycle of wastes.
WARRANTY
All CONDTROL GmbH products go through post-production control and are governed
by the following warranty terms. The buyer's right to claim about defects and general
provisions of the current legislation do not expire.
1) CONDTROL GmbH agrees to eliminate all defects in the product, discovered while
warranty period, that represent the defect in material or workmanship in full volume
and at its own expense.
2) The warranty period is 24 months and starts from the date of purchase by the end
customer (see the original supporting document).
3) The warranty doesn't cover defects resulting from wear and tear or improper use,
malfunction of the product caused by failure to observe the instructions of this user
manual, untimely maintenance and service and insufficient care, the use of non-original
accessories and spare parts. Modifications in design of the product relieve the seller
from responsibility for warranty works. The warranty does not cover cosmetic damage,
that doesn't hinder normal operation of the product.
4) CONDTROL GmbH reserves the right to decide on replacement or repair of the device.
5) Other claims not mentioned above, are not covered by the warranty.
6) After holding warranty works by CONDTROL GmbH warranty period is not renewed
or extended.
7) CONDTROL GmbH is not liable for loss of profit or inconvenience associated with a
defect of the device, rental cost of alternative equipment for the period of repair.
This warranty applies to German law except provision of the United Nations Convention
on contracts for the international sale of goods (CISG).
In warranty case please return the product to retail seller or send it with description of
defect to the following address:
CONDTROL GmbH
Wasserburger Strasse 9
84427 Sankt Wolfgang
Germany
