CROSS LINE CONDTROL MicroX/MicroX Set
LASER

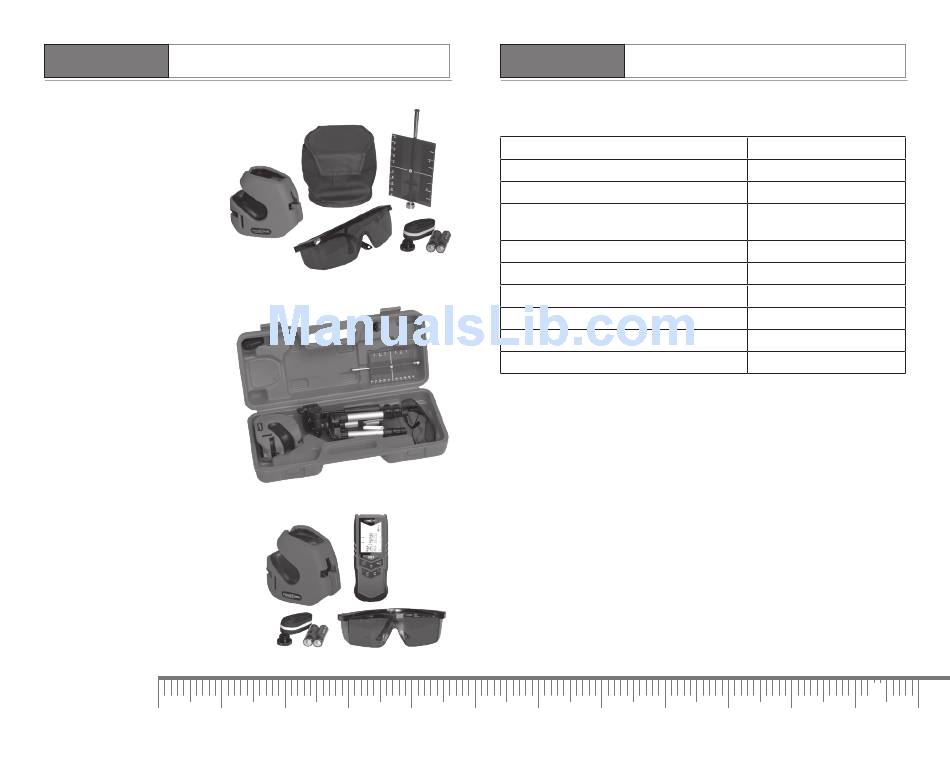

PACKAGE

Microx
Level, batteries, target, laser
viewing glasses, bag, belt,
adapter 5/8'' to 1/4''.
Microx Set
Level, tripod 1/4'', batteries,
target, laser viewing glasses,
belt, adapter 5/8'' to 1/4'', case.
X-Kit
Level, laser distance meter X2
CONDTROL, batteries, laser
viewing glasses, belt, adapter
5/8'' to 1/4''.
16 16
User Manual

TECHNICAL DATA

Parameter
Self-leveling range
Precision
Operating range (depending on room
illumination)
Laser wavelength
Power supply / operating time
Operating temperature
Storage temperature
Dimensions (W x H x D)
Weight (incl. battery)

OPERATION

Preparing the calibration check
It is possible for you to check the calibration of the laser. To do this, position
the device midway between 2 walls, which must be at least 5 meters apart.
Do this by turning the unit on, thus releasing the transport restraint (cross
laser on). See Section «Horizontal and vertical leveling» about this.
1. Mark point A1 on the wall.
2. Turn the device through 180° and mark point A2. You now have
a horizontal reference between points A1 and A2.
CROSS LINE CONDTROL MicroX/MicroX Set
LASER
User Manual
Value
± 4°
± 3 mm /10 m
20 m
635 nm/ < 1 mW
3x1.5V LR6(AA) / 30 hours
0°C ... +50°C
-10°C ... +70°C
110х68х97 mm
0,32 kg
17 17
