Performing the calibration check

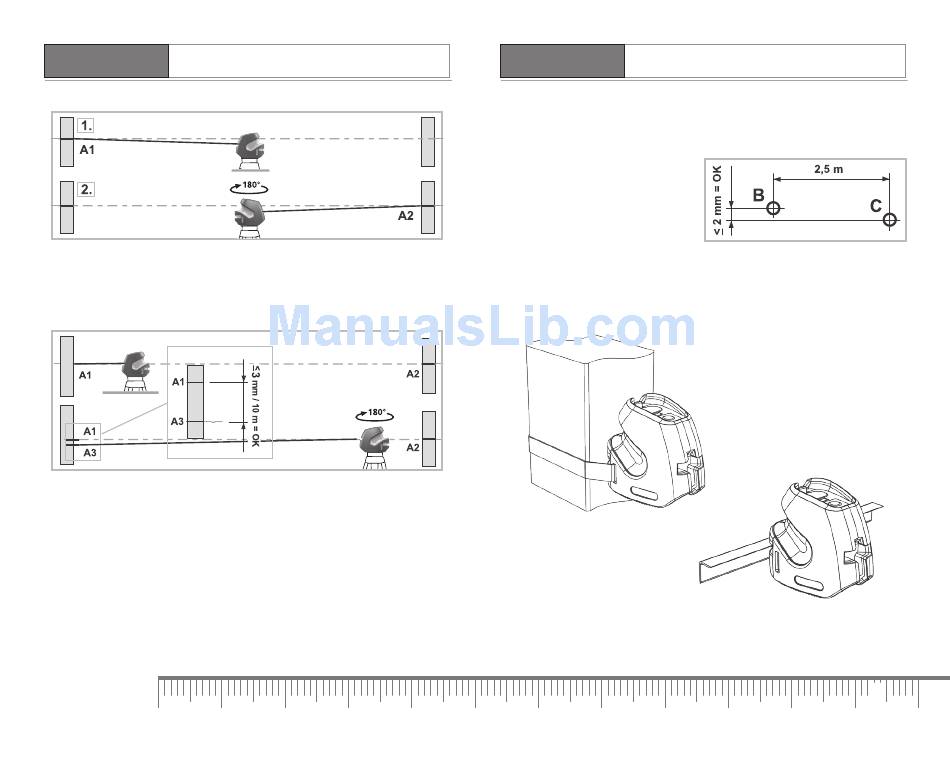

3. Position the device as near as possible to the wall at the height of point A1.
4. Turn the device through 180° and mark point A3. The difference between
points A1 and A3 is the tolerance.
When A1 and A3 are more than 3 mm/10 m apart, an adjustment is necessary.
Contact your authorised dealer or else CONDTROL Service Department.
Checking the vertical line
Position the device about 5 m from a wall. Fix a plumb bob with a line of 2.5 m
length on the wall, making sure that the bob can swing freely. Switch on the
device and align the vertical laser to the plumb line. The precision is within
the specified tolerance if the deviation between the laser line and the plumb
line is not greater than ± 1.5 mm.
18 18
User Manual
Checking the horizontal line
Position the device about 5 m from a wall and switch on the cross laser.
Mark point B on the wall. Turn the laser cross approx. 2.5 m to the right
and mark point C. Check whether
the horizontal line from point C is
level with point B to within ± 2 mm.
Repeat the process by turning the
laser to the left.
